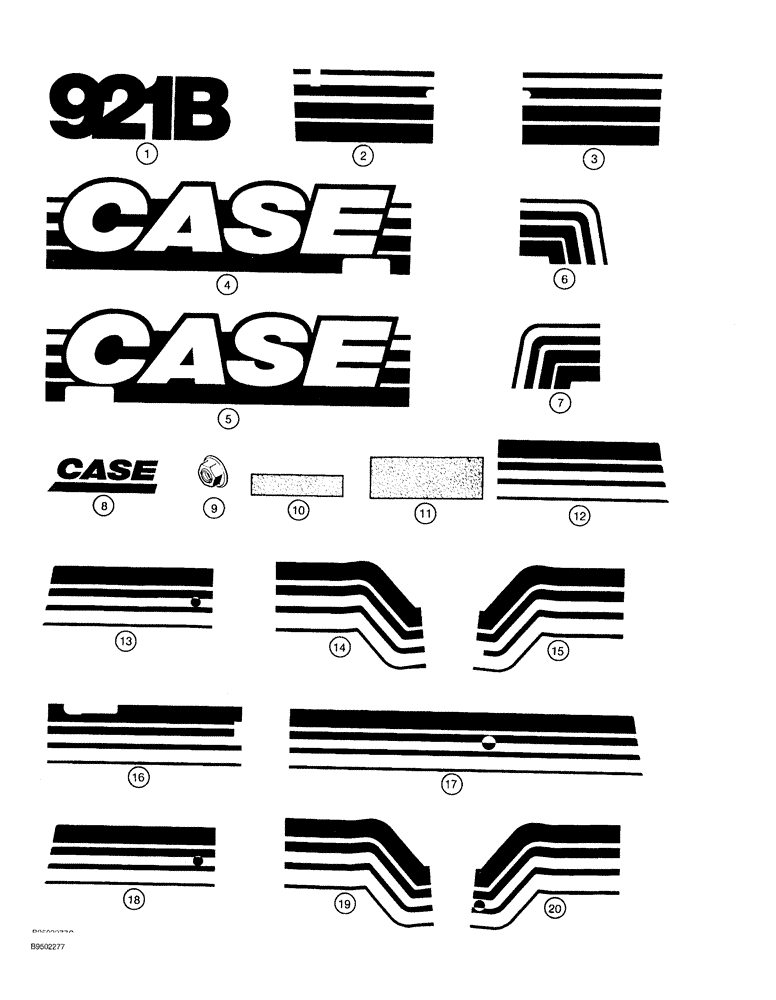

Запчасти Case 921B (9-080) - DECALS (09) - CHASSIS/ATTACHMENTS

1

182889A1

DECAL

921B, located on loader arms

2шт.

Part of Decal Kit part number 194308A1

1шт.

2

187701A1

DECAL

stripes, left-hand, hydraulic tank, if used

1шт.

Part of Decal Kit part number 194308A1

1шт.

2

183425A1

DECAL

stripes, left-hand, hydraulic tank, not shown

1шт.

Part of Decal Kit part number 194308A1

1шт.

3

187700A1

DECAL

stripes, right-hand, hydraulic tank

1шт.

Part of Decal Kit part number 194308A1

1шт.

4

187697A1

DECAL

Case, left-hand, engine side panel, if used

1шт.

Part of Decal Kit part number 194308A1

1шт.

4

183421A1

DECAL

Case, left-hand, engine side panel, not shown

1шт.

Part of Decal Kit part number 194308A1

1шт.

5

187696A1

DECAL

Case, right-hand, engine side panel, if used

1шт.

Part of Decal Kit part number 194308A1

1шт.

5

183420A1

DECAL

Case, right-hand, engine side panel, not shown

1шт.

Part of Decal Kit part number 194308A1

1шт.

6

183423A1

DECAL

stripes, left-hand, I radiator shroud, replaces 187699A1 decal

1шт.

Part of Decal Kit part number 194308A1

1шт.

7

187698A1

DECAL

stripes, right-hand, radiator shroud, if used

1шт.

Part of Decal Kit part number 194308A1

1шт.

7

183422A1

DECAL

stripes, right-hand, radiator shroud, not shown

1шт.

Part of Decal Kit part number 194308A1

1шт.

8

186989A1

EMBLEM

EMBLEM - Case

1шт.

Part of Decal Kit part number 194308A1

1шт.

9

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push-on type

2шт.

Part of Decal Kit part number 194308A1

1шт.

10

D55216

PAD,2" x 9"

if used

22шт.

Part of Decal Kit part number 194308A1

1шт.

11

S243101

WEAR PAD

anti-skid, cut from S84068 bulk trim

8шт.

Part of Decal Kit part number 194308A1

1шт.

12

183428A1

DECAL

stripes, right-hand, front of cab, decals used on cabs painted grey

1шт.

13

183432A1

DECAL

stripes, left-hand, front of cab, decals used on cabs painted grey

1шт.

14

187704A1

DECAL

stripes, right-hand, quarter panel of cab, decals used on cabs painted grey

1шт.

15

187705A1

DECAL

stripes, left-hand, quarter panel of cab. decals used on cabs painted grey

1шт.

16

183431A1

DECAL

stripes, left-hand, door of cab, decals used on cabs painted grey

1шт.

17

183433A1

DECAL

stripes, right-hand, front of canopy, decals used on canopys painted grey

1шт.

18

183432A1

DECAL

stripes, left-hand, front of canopy, decals used on canopys painted grey

1шт.

19

187704A1

DECAL

stripes, right-hand, quarter panel of canopy, decals used on canopys painted grey

1шт.

20

189667A1

DECAL

stripes, left-hand, rear of canopy, decals used on canopys painted grey

1шт.

21

184980A1

DECAL

DECAL - stripes, right-hand, front of cab, similar to item 12, decals used on cabs painted other than grey

1шт.

Items 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the striped is opposite that for cab and canopy colors other than grey.

1шт.

22

184984A1

DECAL

stripes, left-hand, front of cab, similar to item 13, decals used on cabs painted other than grey

1шт.

Items 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than grey.

1шт.

23

189669A1

DECAL

stripes, right-hand, right-hand, quarter panel of cab, similar to item 14, decals used on cabs painted other than grey

1шт.

Items 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than grey.

1шт.

24

189672A1

DECAL

stripes, left-hand, quarter panel of cab, similar to item 15, decals used on cabs painted other than grey

1шт.

Items 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than grey.

1шт.

25

184983A1

DECAL

stripes, left-hand, door of cab, similar to item 16, decals used on cabs painted other than grey

1шт.

Items 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors than grey.

1шт.

26

184986A1

DECAL

stripes, right-hand, front of canopy, similar to item 17, decals used on canopys painted other than grey

1шт.

Items 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than grey.

1шт.

27

184984A1

DECAL

stripes, left-hand, front of canopy, similar to item 18, decals used on canopys painted other than grey

1шт.

Items 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than grey.

1шт.

28

189669A1

DECAL

stripes, right-hand, quarter panel of canopy, similar to item 19, decals used on canopys painted other than grey

1шт.

Items 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than grey.

1шт.

29

189670A1

DECAL

stripes, left-hand, I rear of canopy, similar to item 20, decals used on canopys painted other than grey

1шт.

Items 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than grey.

1шт.

194308A1

DECAL

KIT - decal, Includes: references 1 through 11 on this figure, reference nos. 7,23 on figure 9-82, and 1 through 22, 24,26,28,29 on figure 9-84, no longer available, order decals separately

1шт.
