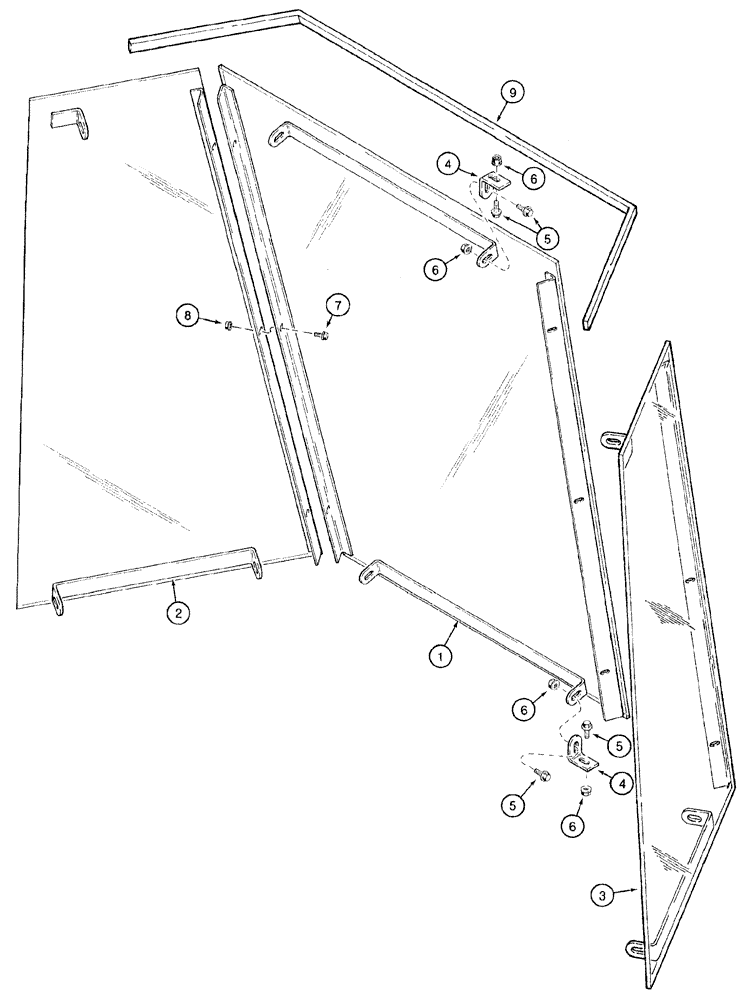

Запчасти Case 921B (9-078) - CANOPY WINDSHIELD AND WIPER KIT (09) - CHASSIS/ATTACHMENTS

L36339

SET

KIT - windshield and wiper, includes instruction sheet

1шт.

1

1344155C1

SHIELD

WIND - canopy, includes brackets

1шт.

2

1344156C1

GLASS

includes brackets, side, left-hand

1шт.

3

1344157C1

GLASS

includes brackets, side, right-hand

1шт.

4

1344152C1

ANGLE

BRACKET - angle

10шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

20шт.

6

231-5146

FLANGE NUT,3/8"-16

20шт.

7

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

6шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

9

1344330C1

SEAL, GLASS

adhesive-backed, 1475 mm (58 inch) long, cut from 1983809C1 bulk seal, see below

1шт.

10

A187621

SWITCH

SWITCH - rocker, front, illustrated on figure 4-28

1шт.

11

3231781R1

IDEOGRAM

DECAL - front wiper switch, illustrated on figure 9-83

1шт.

12

A149800

FUSE,10 Amp

red, 10 ampere, illustrated on figure 4-10

1шт.

1983809C1

SEAL

bulk, adhesive-backed, 15240 mm (600 inch) long

1шт.
