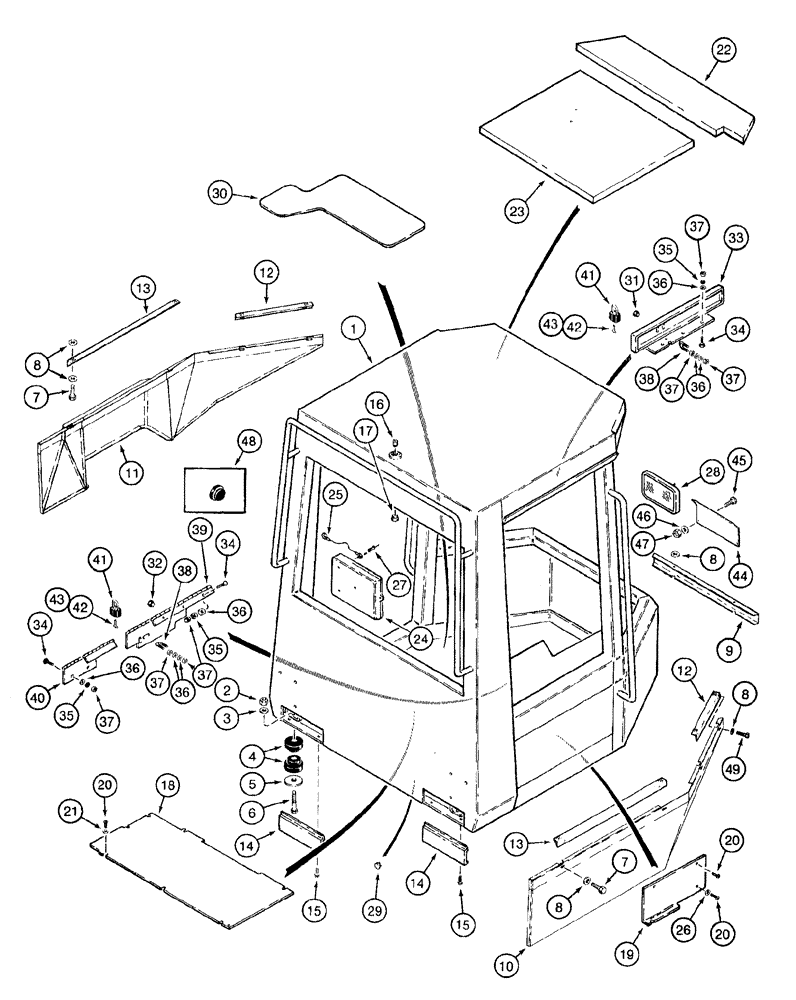

Запчасти Case 921B (9-076) - CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, order from Machinery Price List

1шт.

1

197814A1

PROTECTION

CANOPY - shell, service replacement

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

27914R1

WASHER,15/16" x 2 1/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened

4шт.

4

R54331

HITCH DAMPER

MOUNT - rubber, canopy support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

spacer, special, canopy mounting

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

14шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

22шт.

9

L129571

ANGLE BAR

PANEL - center, lower

1шт.

10

L129870

COVER

lower right-hand

1шт.

11

104733A1

GUARD ASSY.

COVER - lower left-hand

1шт.

12

L129563

ANGLE BAR

BRACKET - cover mounting, front

2шт.

13

L129561

ANGLE BAR

BRACKET - cover mounting, rear

2шт.

14

193321A1

COVER

rear, left-hand mounting access, I

2шт.

15

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

16

217-476

DRAIN PLUG,Sq Soc, 1" - 11-1/2, NTPF

1шт.

17

353-591

PLUG,2

recessed head, inch 2

1шт.

18

193669A1

COVER

rear, seat support

1шт.

19

193672A1

COVER

access, right-hand

1шт.

20

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

10шт.

21

1990503C1

WASHER

flat, special

7шт.

22

179306A1

PAD

HEADLINER - canopy, front

1шт.

23

179302A1

PADDING

HEADLINER - vinyl, center

1шт.

24

R46464

CASE

BOX - operators manual

1шт.

25

D126821

CABLE

CORD - manual retaining

1шт.

26

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

1шт.

27

151-522

RIVET,Pop, 3/16" x .575"

Break mandrel

3шт.

28

A177462

MIRROR

rear view, includes mounting hardware, replaces L74714 mirror

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

30

L126989

FLOOR MAT

canopy, self-adhesive, non-skid

1шт.

31

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

32

353-404

PLUG,Dome, .500" hole, Nylon

9шт.

33

193822A1

COVER ASSY

gauge panel, overhead

1шт.

34

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

carriage, 1/4 NC x 5/8 inch, grade 2

8шт.

35

492-11025

LOCK WASHER,1/4"

8шт.

36

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

24шт.

37

425-144

JAM NUT,Jam, 1/4"-20, G5

24шт.

38

1977938C1

U-BOLT,1/4" - 20 x 1 7/16", Carbon Steel

BOLT "U" cover

4шт.

39

193820A1

PANEL ASSY.

COVER - instrument panel, right-hand console

1шт.

40

193821A1

COVER ASSY

control panel, right-hand console

1шт.

41

D93753

PADLOCK

includes keys, if used

2шт.

42

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

43

R29555

KEY

for Master padlock only, if used

2шт.

44

193668A1

COVER

front panel, models without windshield and wiper kit

1шт.

45

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

4шт.

46

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

47

425-104

NUT,1/4"-20, Cl 5

4шт.

48

353-408

PLUG,Dome, .750" hole, Nylon

button, 3/4 inch, floor

4шт.

48

353-409

PLUG,Dome, .812" hole, Nylon

button, floor

1шт.

48

353-411

PLUG,Dome, 1.000" hole, Nylon

Upper RH front and seat pedestal, LH side

2шт.

49

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

4шт.
