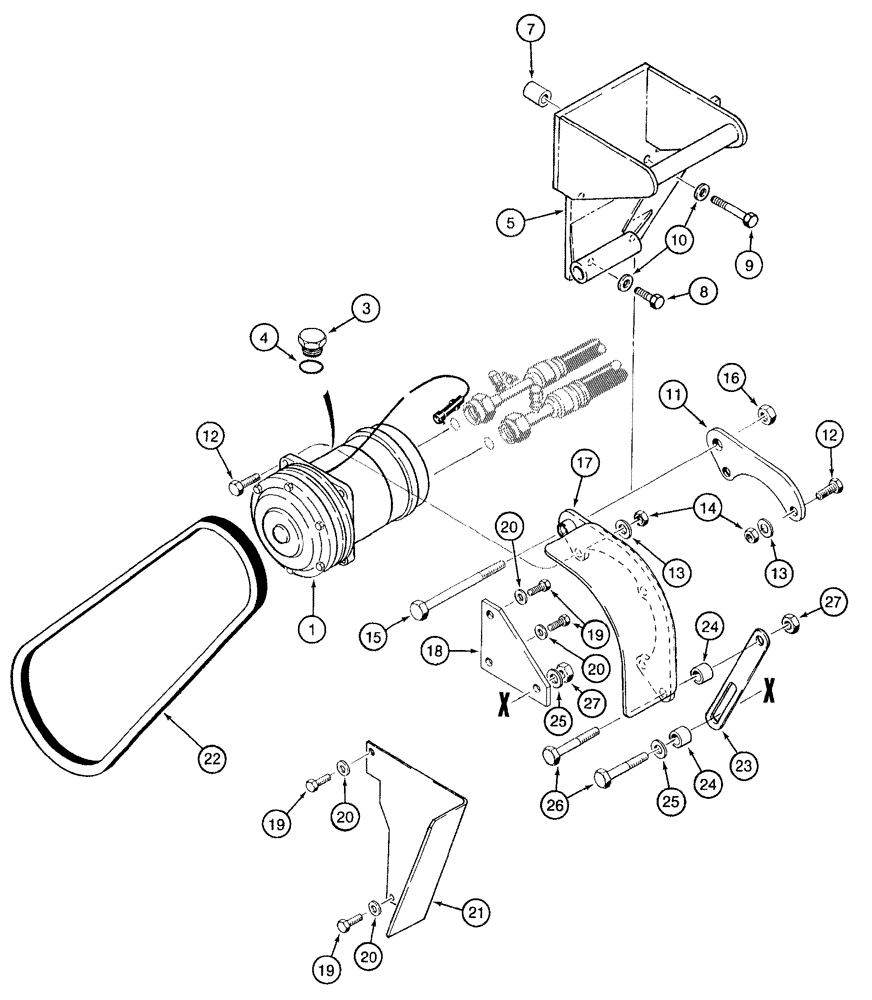

Запчасти Case 921B (9-074) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1990760C1

COMPRESSOR

ASSEMBLY - air conditioning, if used

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

921B (3/95-), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COMPRESSOR - air conditioning, components not serviced separately, order 1990760C1 compressor assembly

1шт.

2

138886A1

CLUTCH

compessor, not shown

1шт.

3

A49667

PLUG

hex

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

5

90-8444T1

SUPPORT

MOUNT - compressor

1шт.

7

90-7181T1

SPACER

compressor mount, no longer available, order 90-7586T1 spacer, item 24

2шт.

8

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

9

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

11

90-3554T1

SUPPORT

BRACKET - compressor, front

1шт.

12

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

5шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

5шт.

14

825-1410

NUT,M10, Cl 8

5шт.

15

814-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

1шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

17

90-7589T2

SUPPORT

BRACKET - compressor mounting, replaces 90-7589T1 bracket

1шт.

18

90-7590T1

LARGE PLATE

PLATE, LARGE adjusting strap

1шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

21

90-7311T1

PROTECTOR

GUARD - compressor belt

1шт.

22

1250587C1

V-BELT,0.50" W

Compressor

1шт.

23

90-7587T1

ADJUSTING PLATE

STRAP - adjusting

1шт.

24

90-7586T1

SPACER

27/64 x 43/64 x 45/64 inch

2шт.

25

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

26

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

27

231-1446

NUT,3/8" - 16, Gr 5

2шт.
