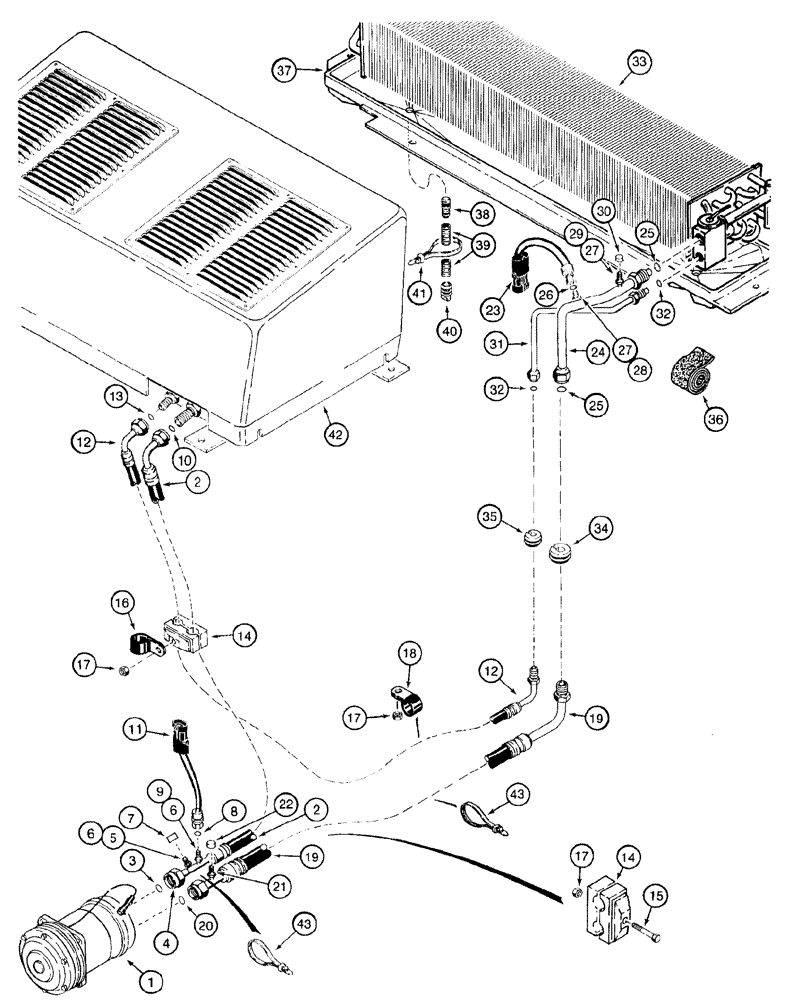

Запчасти Case 921B (9-066) - AIR CONDITIONING SYSTEM - COMPRESSOR TO CONDENSER AND EVAPORATOR CORE (09) - CHASSIS/ATTACHMENTS

1

1990760C1

COMPRESSOR

ASSEMBLY - air conditioning, component parts not serviced separately, clutch repair kit shown on figure 9-74, if used

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

921B (3/95-), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

2

134458A1

HOSE ASSY.

1575 mm (62 inch) long, supply, Serial Range: compressor-condenser

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, at compressor outlet port

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - special, compressor fitting

1шт.

5

NSS

NOT SOLD SEPARAT

FITTING - special, high side charge port

1шт.

6

1250594C2

CORE

VALVE - hose

2шт.

7

122554A1

CAP

Sealing, high side service port

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

9

NSS

NOT SOLD SEPARAT

FITTING - special, pressure switch

1шт.

10

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide, at condenser inlet port

1шт.

11

232948A1

SWITCH, A/C HIGH PRE

400 psi, Replaces 1999925C1 switch

1шт.

12

1954642C2

HOSE

1325 mm (52-5/32 inch) long, return, condenser to evaporator core

1шт.

13

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Hose, at condenser

1шт.

14

L115095

CLAMP

double, includes both halves and metal top plate, lower clamp mounts to item 47, L130040 bracket, Figure 3-6

2шт.

15

426-544

BOLT

BOLT - hex, 5/16 NC x 2-3/4 inch, grade 8

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Hose

1шт.

17

231-1445

NUT,5/16"-18, GB

4шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

19

134459A1

HOSE ASSY.

1555 mm (61-1/4 inch) long, evaporator core to compressor inlet port

1шт.

20

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, at compressor inlet port

1шт.

21

1250594C2

CORE

VALVE - hose

1шт.

22

122553A1

CAP

sealing, hose

1шт.

23

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

24

133506A1

TUBE

TUBE - cab suction, upper

1шт.

25

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

2шт.

26

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

27

1250594C2

CORE

VALVE - hose

2шт.

28

NSS

NOT SOLD SEPARAT

FITTING - special, pressure switch

1шт.

29

NSS

NOT SOLD SEPARAT

FITTING - special, low side service port

1шт.

30

122553A1

CAP

sealing, low side service port

1шт.

31

97141C3

PIPE

TUBE - lower, return, condenser to evaporator core

1шт.

32

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

2шт.

33

1990757C2

EVAPORATOR

ASSEMBLY - air conditioning and heater, parts list figure 9-62, replaces 1990757C1 core assembly

1шт.

34

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Rubber, Upper tube

1шт.

35

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber, Lower tube

1шт.

36

83822C1

TAPE

610 mm (24 inch) long, see below, air conditioning core tubes, valve, and hoses

5шт.

37

1339577C3

PAN

drip, condensation, see figure 9-62 for seals and mounting

1шт.

38

1250522C3

FITTING

straight, special, drain, Serial Range: hose-housing

2шт.

39

106603A1

HOSE,13.00 mm ID x 1219.00 mm

Cut From 198091C1 Bulk Hose, See Below, Drain, From Condensation Pan

2шт.

40

109239C2

CHECK VALVE

2шт.

41

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

42

178301A1

ASSEMBLY

CONDENSER - air conditioning, parts list and mounting figure 9-70, if used

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

3шт.

1954475C1

ROLL

TAPE - bulk, 63.5 (2-1/2) x 9150 (360) x 3 mm (1/8 inch) thick

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

bulk, 13 (1/2) ID x 15240 mm (600 inch) long

1шт.
