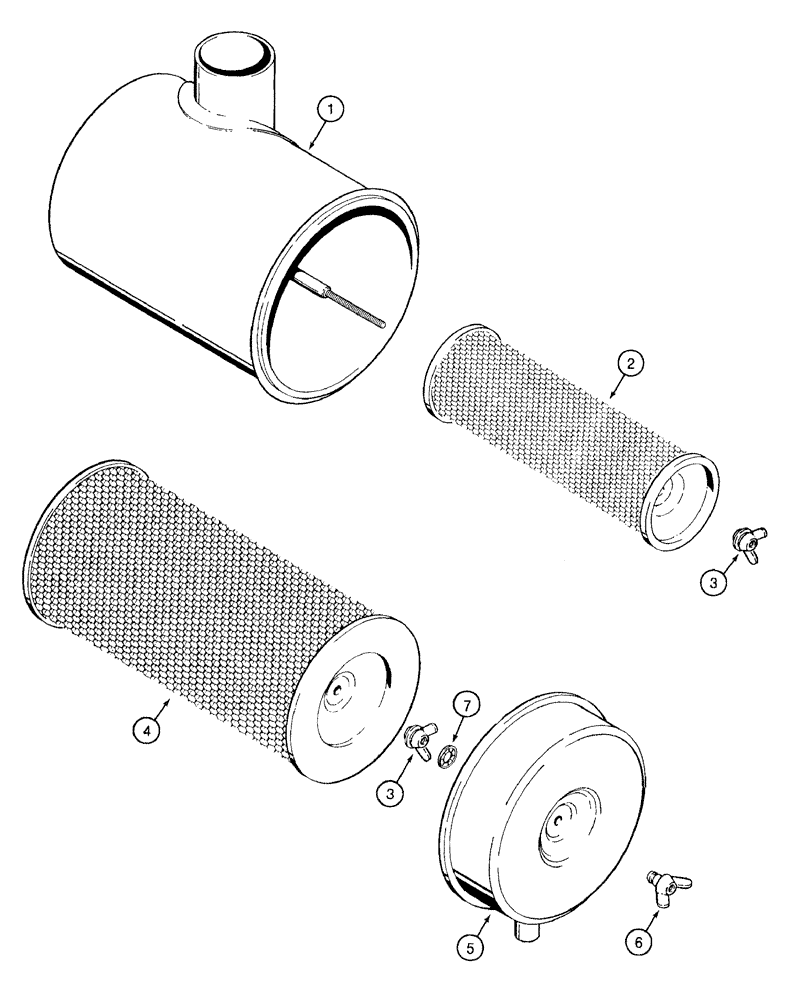

Запчасти Case 921B (2-010) - AIR CLEANER ASSEMBLY (02) - ENGINE

1347832C2

AIR CLEANER

ASSEMBLY - engine, see figure 2-8 for mounting, if used

1шт.

90-7743T91

AIR CLEANER

ASSEMBLY - engine, see figure 2-8 for mounting

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

627976C1

AIR FILTER

secondary, inner, used with 1347832C2 cleaner assembly

1шт.

2

132149A1

AIR FILTER

secondary, inner, used with 90-7743T91 cleaner assembly

1шт.

3

L35499

NUT

wing, element retainer

2шт.

4

627975C3

AIR FILTER

ELEMENT - primary, outer, used with 1347832C2 cleaner assembly

1шт.

4

132151A1

AIR FILTER

primary, outer, used with 90-7743T91 cleaner assembly

1шт.

1347839C1

COVER

air cleaner, used with 1347832C2 cleaner assembly

1шт.

90-7791T1

COVER

air cleaner, used with 90-7743T91 cleaner assembly

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

6

A47102

WING NUT

wing

1шт.

7

1347879C1

PLATE, LOCKING

WASHER - special, internal teeth

1шт.
