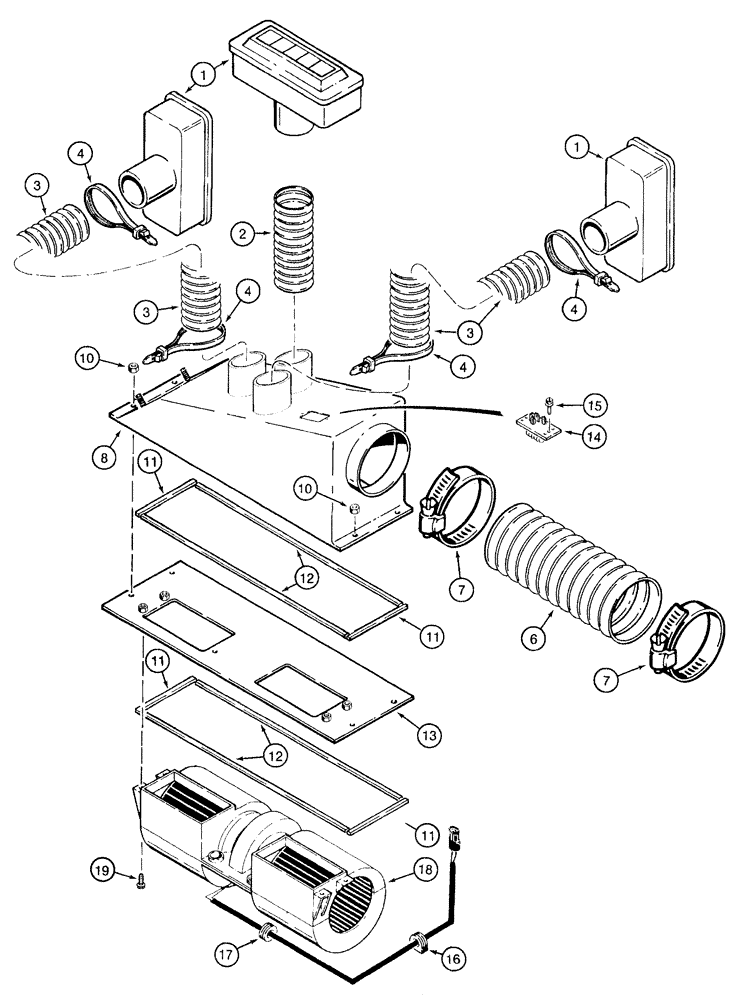

Запчасти Case 921B (9-060) - HEATING AND AIR CONDITIONING PLENUM (09) - CHASSIS/ATTACHMENTS

1

1971238C1

VENT

LOUVER - cab, heating and air conditioning

3шт.

2

1999765C1

HOSE

HOSE - 163 mm (6-13/32 inch) long, cut from 236559A1 bulk hose, see below

1шт.

3

1999754C1

AIR HOSE

535 mm (21-1/16 inch) long, cut from 236559A1 bulk hose, see below

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, side hose

4шт.

6

1999763C1

HOSE

HOSE - 305 mm (12 inch) long, cut from 1999759C1 bulk hose, see below

1шт.

7

214-1484

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

adj, 4-7/8 - 5-3/4 inch dia, side air hose

2шт.

8

1999767C1

DUCT

plenum, pressure chamber, heat and air

1шт.

10

425-104

NUT,1/4"-20, Cl 5

4шт.

11

1340071C1

SEAL

SEAL - 200 mm (7-7/8 inch) long, cut from 187874C1 bulk seal, see below, blower plate, upper

4шт.

12

1340072C1

SEAL

SEAL - 530 mm (20-7/8 inch) long, cut from 187874C1 bulk seal, see below, blower plate, lower

4шт.

13

1339685C2

LARGE PLATE

PLATE, LARGE PLATE - blower mounting

1шт.

14

F44903

RESISTOR

blower speed, 24 volt

1шт.

15

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

self-tapping, hex washer head, No. 10-16 x 1/2 inch

2шт.

16

1546537C1

GROMMET

vertical, blower mounting plate

1шт.

17

96901C1

GROMMET

blower motor wire, horizontal, blower mounting plate

1шт.

18

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, parts list figure 4-56

1шт.

19

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Attaches to weld nut in blower mounting plate

4шт.

20

188825A1

WASHER - rear window, not shown

1шт.

236559A1

HOSE,63.5mm ID x 1270mm L

Use to make items 2 and 3, Replaces 1999764C1 hose

1шт.

1999759C1

PLASTIC-RUBBER TUBE

HOSE - bulk, 127 (5) ID x 7620 mm (300 inch) long, use to make item 6

1шт.

187874C2

SEAL

SEAL - bulk, adhesive-backed, 3 (1/8) x 10 (3/8) x 15240 mm (600 inch) long, use to make item 11 and 12

1шт.
