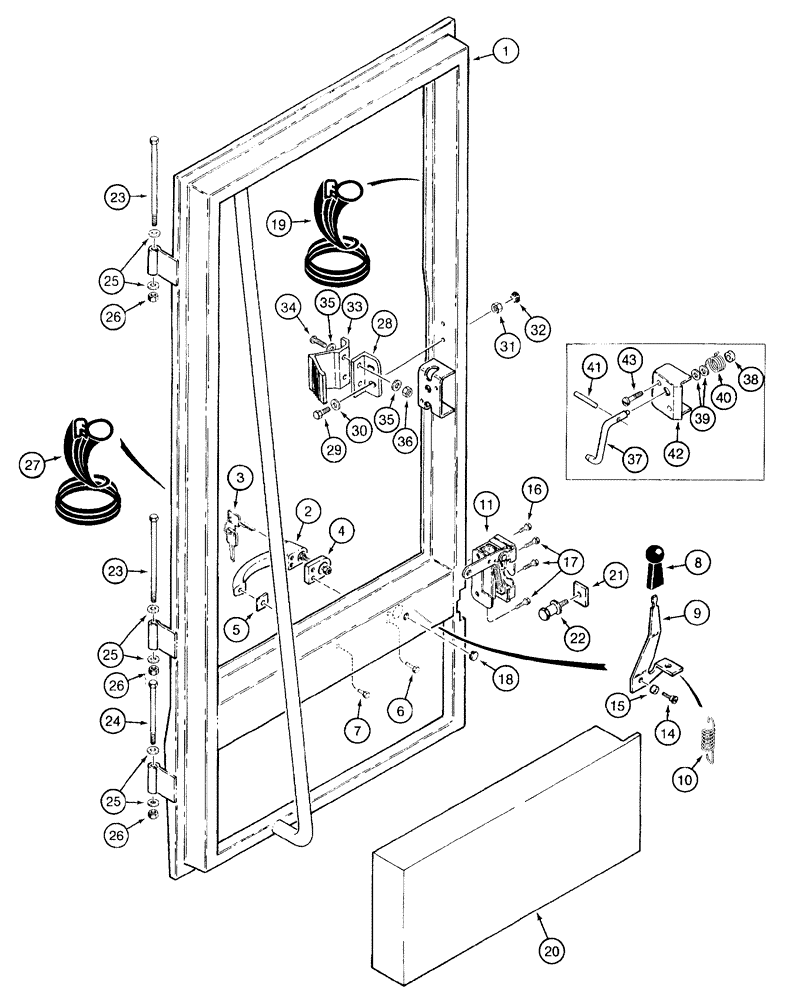

Запчасти Case 921B (9-054) - CAB DOOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

193335A1

DOOR

FRAME

1шт.

2

1339958C1

HANDLE

push button, outer door

1шт.

3

A77313

SET OF 2 KEYS

same as ignition key, replaces 307852A1

1шт.

4

1969996C1

SUPPORT

SPACER - handle, front

1шт.

5

1969997C1

SUPPORT

SPACER - handle, rear

1шт.

6

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

7

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

8

D135387

GRIP

KNOB - lever, inner door handle

1шт.

9

1969988C3

HANDLE

door, inner

1шт.

10

A163012

SPRING

inner door

1шт.

11

1339959C1

LOCK ASSY

LATCH - door striker

1шт.

14

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

hex socket, 5/16 NC x 1-1/4 inch

1шт.

15

1981767C1

SPACER

handle

1шт.

16

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1шт.

17

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

3шт.

18

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

19

1987254C1

DOOR SEAL

3099 mm (122 inch) long, cut from 1987253C1 bulk seal, window, door frame

1шт.

20

179300A1

PADDING

interior cover, adhesive back, lower cab door

1шт.

21

1339560C1

LARGE PLATE

PLATE, LARGE striker

1шт.

22

R51754

STRIKER

STRIKER - latch

1шт.

23

426-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 8

BOLT - hex, 3/8 NC x 6-1/2 inch, grade 8

2шт.

24

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

BOLT - hex, 3/8 NC x 4-1/2 inch, grade 8

1шт.

25

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust, plastic, hinge

6шт.

26

131-203

LOCK NUT,3/8"-16, GB, LH

light hex, self locking, 3/8 inch NC

3шт.

27

1987253C1

DOOR SEAL

4191 mm (165 inch) long, door

1шт.

28

1344258C1

ANGLE

BRACKET - latch mounting

1шт.

29

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

30

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

flat, 5/16 x 3/4 x 1/16 inch

2шт.

31

231-1444

NUT,1/4"-20, GB

2шт.

32

353-251

PLUG,15/16"

button, 15/16 inch

2шт.

33

97398C1

LOCK ASSY

LATCH - push type, door window, plastic

1шт.

34

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

35

195-81029

WASHER,#10

(7/32 x 7/16 x 3/64")

4шт.

36

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC

2шт.

37

113973A1

HANDLE

ROD - latch, left-hand

1шт.

38

117005A1

SPACER

spring

1шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

40

113974A1

SPRING

left-hand

1шт.

41

38-11028

LOCK PIN,5/32" x 1 3/4", Slotted

5/32" x 1 3/4", Slotted

1шт.

42

116927A1

DOOR COVER

latch, left-hand

1шт.

43

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.
