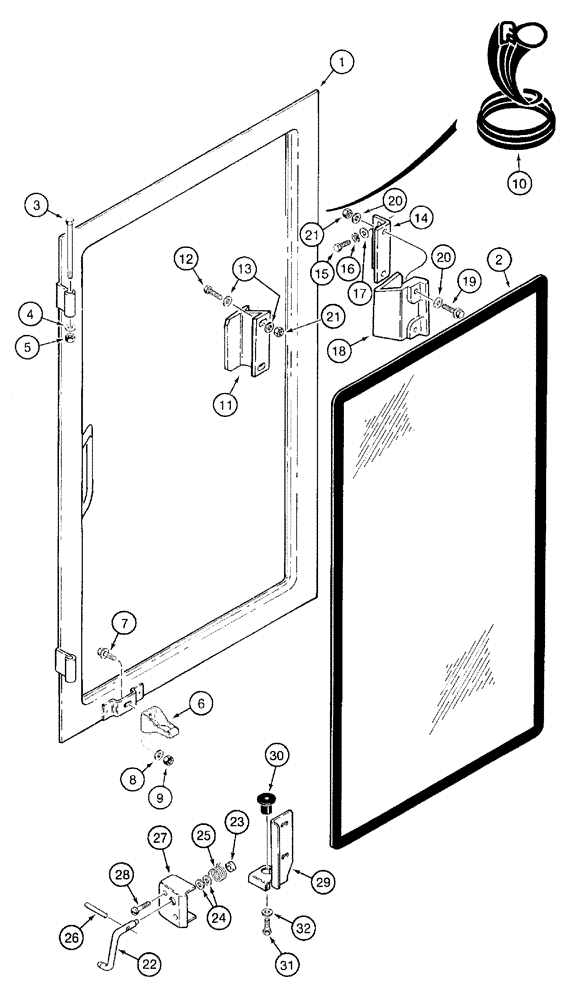

Запчасти Case 921B (9-052) - RIGHT-HAND CAB WINDOW (09) - CHASSIS/ATTACHMENTS

1

193341A1

WINDOW FRAME

right-hand

1шт.

2

1340424C1

GLASS,CAB

window, right-hand

1шт.

3

307852A1

SET OF 2 KEYS

metal

2шт.

4

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust, plastic, hinge

2шт.

5

131-203

LOCK NUT,3/8"-16, GB, LH

light hex, self locking, 3/8 inch NC

2шт.

6

1981896C1

STOP

CATCH - male, open window retainer

1шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

1шт.

10

1344165C1

SEAL

3510 mm (138-3/16 inch) long, right-hand window

1шт.

11

97399C1

HANDLE

door window, plastic

1шт.

12

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

machine, hex washer head, No. 10 NC x 3/4 inch

2шт.

13

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64")

2шт.

14

1344259C1

ANGLE

BRACKET - latch mounting

1шт.

15

113-67

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

16

192-81007

LOCK WASHER,1/4"

2шт.

17

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

flat, 5/16 x 3/4 x 1/16 inch

2шт.

18

97398C1

LOCK ASSY

LATCH - push type, door window, plastic

1шт.

19

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

machine, hex washer head, No. 10 NC x 3/4 inch

2шт.

20

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64")

4шт.

21

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC

4шт.

22

116222A1

HANDLE

ROD - latch, right-hand

1шт.

23

117005A1

SPACER

spring

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

25

116200A1

SPRING

right-hand

1шт.

26

38-11028

LOCK PIN,5/32" x 1 3/4", Slotted

5/32" x 1 3/4", Slotted

1шт.

27

116926A1

DOOR COVER

latch, right-hand

1шт.

28

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

29

116289A1

SUPPORT

BRACKET - window latch, right-hand

1шт.

30

D75755

ISOLATOR

INSULATOR - rubber

1шт.

31

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

1шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.
