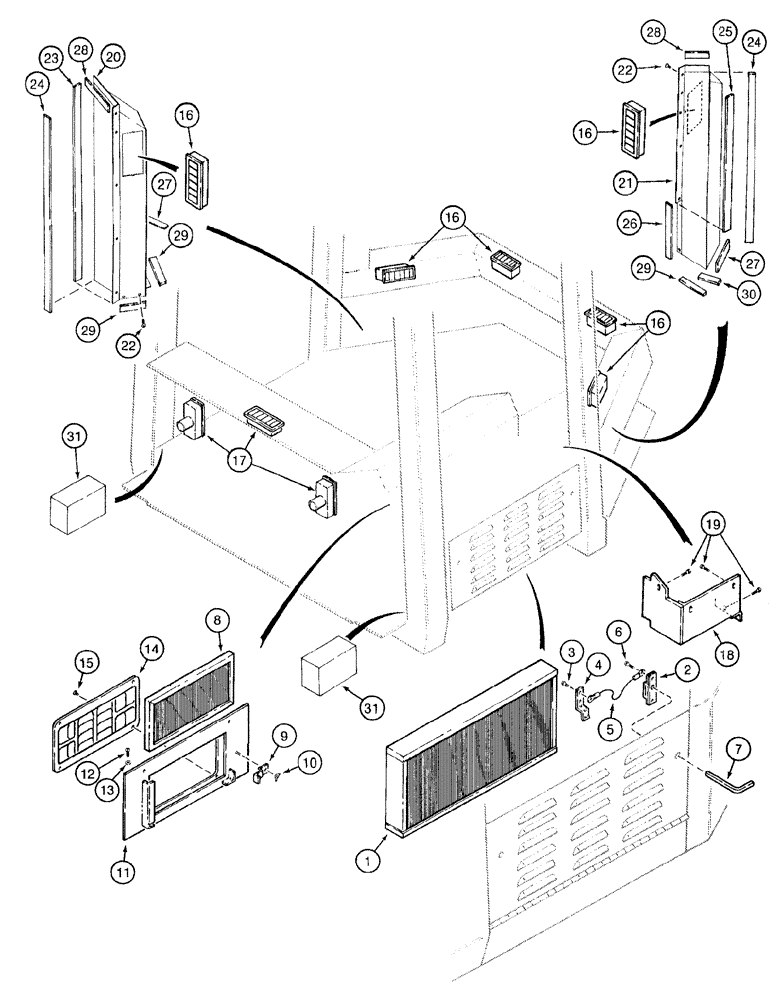

Запчасти Case 921B (9-050) - CAB FILTERS, VENTS AND LOUVERS (09) - CHASSIS/ATTACHMENTS

1

1970006C2

AIR CLEANER,Cab, 508mm L x 228.6mm W x 55.8mm Thk

Filter, Cab

1шт.

2

1339773C1

LOCK

LATCH - filter door

2шт.

3

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

Self tapping

4шт.

4

1339848C2

SUPPORT

CATCH - filter door

2шт.

5

1339924C1

CABLE

filter door stop

1шт.

6

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

Self tapping

4шт.

7

S115083

KEY

lock, access door

1шт.

8

1970098C1

FILTER

air, recirculating

1шт.

9

1977780C1

SUPPORT

BRACKET - mounting, filter

1шт.

10

129-409

WING NUT,1/4"-20

1шт.

11

193654A1

COVER

VENT - air, high rise, double louver, right-hand, filter and louver, replaces 193656A1 frame

1шт.

12

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

3шт.

13

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

1шт.

14

1970073C1

ORIFICE RING

LOUVER - air, recirculating

1шт.

15

265-18312

SELF-TAP SCREW,Cross Oval Hd, #6 x 3/4"

self-tapping, oval Phillips, No. 6-20 x 3/4 inch

4шт.

16

1990950C2

VENT

LOUVER - bezel

6шт.

17

1971238C1

VENT

LOUVER - cab, rear window

3шт.

18

1339900C5

PANEL

COVER - seal, air recirculating

1шт.

19

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

4шт.

20

193655A1

COVER

VENT - air, high rise, double louver, left-hand, metal, see note, if used

1шт.

For plastic vent, order 243609A1

1шт.

20

243609A1

DUCT

VENT - air, high rise, double louver, left-hand, gray, not shown

1шт.

21

193654A1

COVER

VENT - air, high rise, double louver, right-hand, metal, see note, if used

1шт.

For plastic vent, order 258494A1

1шт.

21

258494A1

DUCT

VENT - air, high rise, double louver, right-hand, high rise, double louver, right-hand

1шт.

22

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

15шт.

23

1344322C1

SEAL

SEAL - 550 mm (21-11/16 inch) long, cut from 195917C1 bulk seal, see below

1шт.

24

1344323C1

SEAL

SEAL - 540 mm (21-1/4 inch) long, cut from 195917C1 bulk seal, see below

2шт.

25

1344324C1

SEAL

SEAL - 350 mm (13-3/4 inch) long, cut from 195917C1 bulk seal, see below

1шт.

26

1344325C1

SEAL

SEAL - 170 mm (6-11/16 inch) long, cut from 195917C1 bulk seal, see below

1шт.

27

1344326C1

SEAL

SEAL - 95 mm (3-3/4 inch) long, cut from 195917C1 bulk seal, see below

2шт.

28

1344327C1

SEAL

SEAL - 85 mm (3-3/8 inch) long, cut from 195917C1 bulk seal, see below

2шт.

29

1344328C1

SEAL

SEAL - 60 mm (2-3/8 inch) long, cut from 195917C1 bulk seal, see below

3шт.

30

1344329C1

SEAL

SEAL - 50 mm (2 inch) long, cut from 195917C1 bulk seal, see below

1шт.

31

1981764C1

FOAM

BLOCK - foam, 3 (75) x 2 (50) x 5 inch (125 mm), used on floor in rear corners of cab

2шт.

195917C2

SEAL

SEAL - bulk, foam, adhesive-backed, 15240 mm (600 inch) long

1шт.
