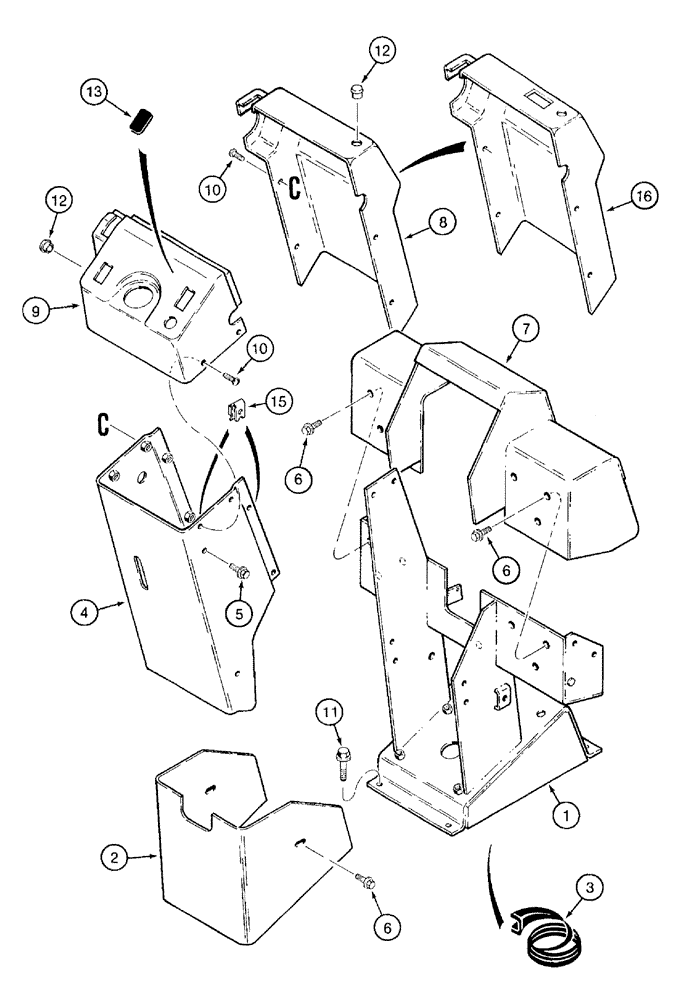

Запчасти Case 921B (9-046) - PEDESTAL AND COVERS (09) - CHASSIS/ATTACHMENTS

1

193336A1

SUPPORT

BASE - pedestal

1шт.

2

193325A1

COVER

pedestal, lower left-hand side

1шт.

3

1970021C1

GROMMET

TRIM - flexible, 324 mm (12-3/4 inch) long, pedestal

2шт.

4

1344079C4

COVER

upper pedestal, covers upper rear and right-hand and left-hand sides, replaces 193337A1

1шт.

5

1327574C1

FLANGE BOLT,Hex Serr, 5/16" - 18 x 1/2", Gr 5

hex flange, polyseal, 5/16 NC x 1/2 inch

4шт.

6

100142A1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 3/4", Gr 5

Special

6шт.

7

193324A1

COVER

brake shaft

1шт.

8

242586A1

COVER

pedestal, steering column, front, prior to P.I.N. JEE0052701 , replaces 176769A1

1шт.

9

176765A1

DOOR COVER

steering column, rear, see Figure 4-4 for parking brake switch, warning lamp and transmission

1шт.

10

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

8шт.

11

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

BOLT - hex washer head, special, 3/8 NC x 1-1/4 inch

4шт.

12

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, if used

2шт.

13

245918C1

LENS

PLUG - rectangular, blanking switch,steering column cover, if used

1шт.

15

131-837

SPRING NUT,Tinn, U, 1/4"-20

8шт.

16

242586A1

COVER

pedestal, steering column, front, P.I.N. JEE0052701 and after

1шт.
