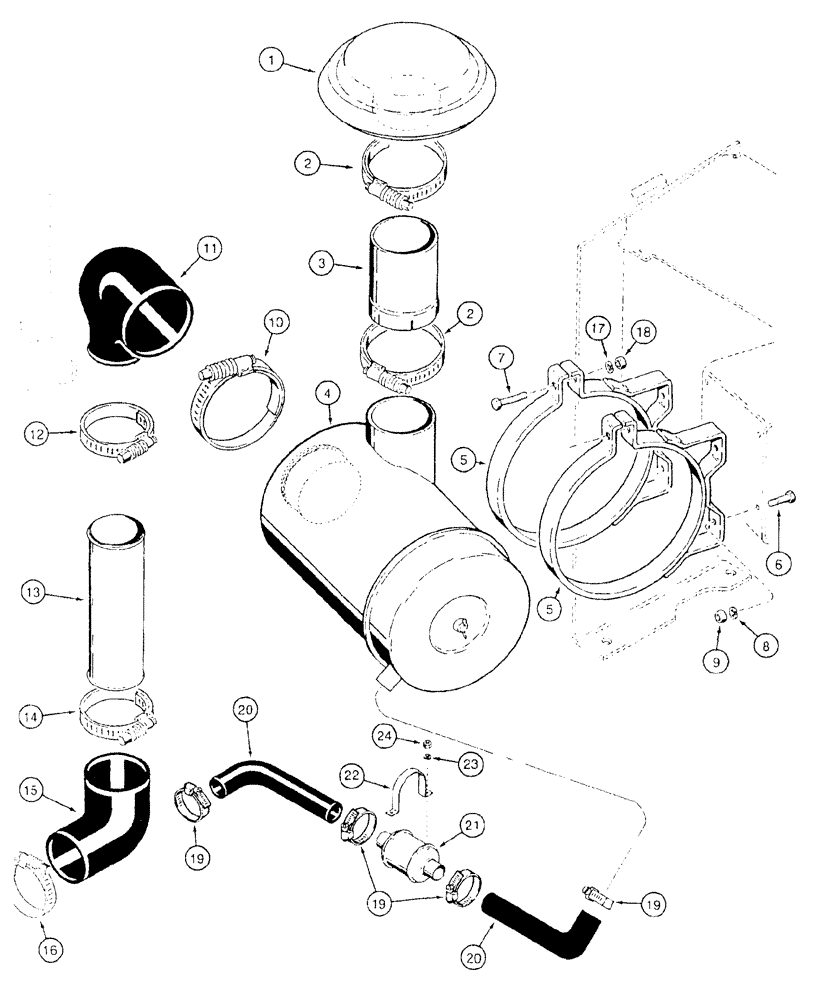

Запчасти Case 921B (2-008) - AIR INDUCTION SYSTEM (02) - ENGINE

1

9-128

CAP

air intake

1шт.

2

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

Adj, Replaces 214-185 clamp

2шт.

3

L129742

EXTENSION

air cleaner

1шт.

4

1347832C2

AIR CLEANER

ASSEMBLY - engine, parts list figure 2-10 , if used

1шт.

4

90-7743T91

AIR CLEANER

ASSEMBLY - engine, parts list figure 2-10

1шт.

5

90-3871T1

CLIP

CLAMP - band, air cleaner mounting

2шт.

6

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

L129160

CLAMP,158.75mm - 180.97mm

air, Serial Range: cleaner-elbow

1шт.

11

L128442

ELBOW

air, Serial Range: cleaner-tube

1шт.

12

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

elbow at air, Serial Range: cleaner-tube

1шт.

13

L128443

TUBE,127 mm OD x 407 mm L

elbow to elbow

1шт.

14

L124802

COLLAR CLAMP

tube to elbow at turbocharger

1шт.

15

9-94

HOSE,4.0 " ID, 5.0 ID

Elbow, 90 Degree, Tube to Turbocharger

1шт.

16

L124635

HOSE CLAMP

, Serial Range: elbow-turbocharger

1шт.

17

492-11031

LOCK WASHER,5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

2шт.

19

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable

4шт.

20

107777A1

ELBOW

TUBE - 90 degree

2шт.

21

90-7639T1

CLAMP

aspirator tube, replaces A190699 valve

1шт.

22

90-7640T1

VALVE

check, replaces L129733 clamp

1шт.

23

492-11025

LOCK WASHER,1/4"

2шт.

24

425-104

NUT,1/4"-20, Cl 5

2шт.
