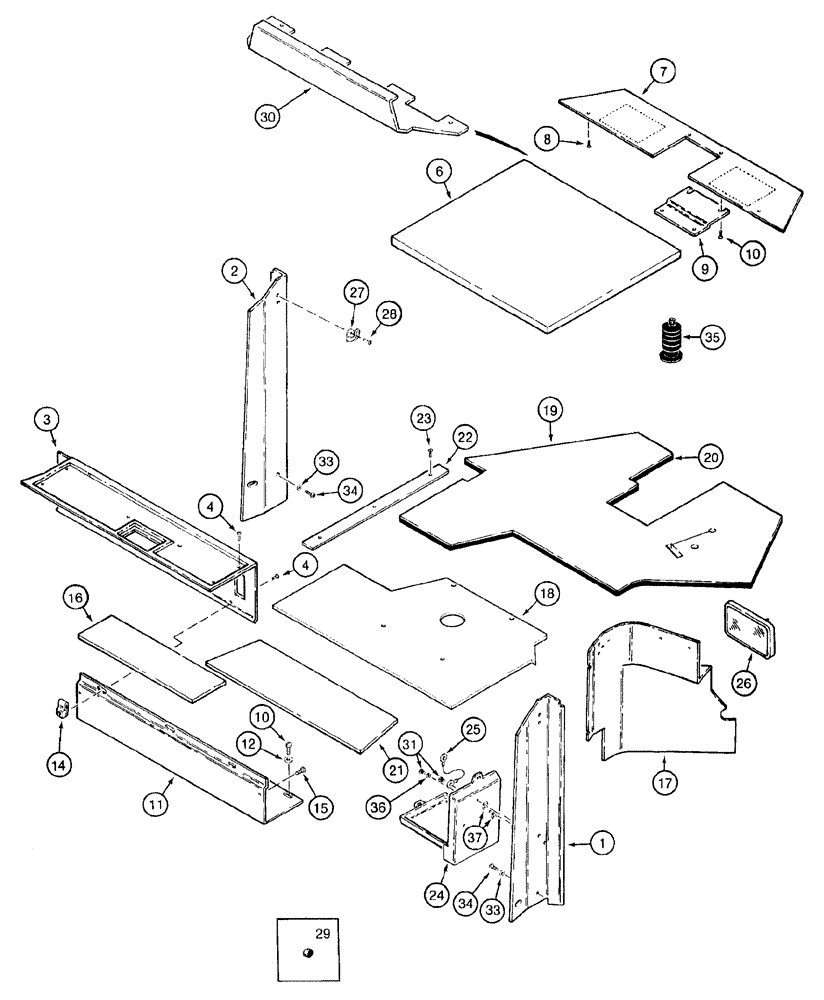

Запчасти Case 921B (9-042) - CAB INTERIOR (09) - CHASSIS/ATTACHMENTS

1

179326A1

PADDING

COVER - vinyl, right-hand rear

1шт.

2

179327A1

PADDING

COVER - vinyl, left-hand rear

1шт.

3

179463A1

DOOR COVER

formed, rear deck

1шт.

4

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

self-tapping, special, No. 10-16 x 3/4 inch

9шт.

6

179302A1

PADDING

HEADLINER - vinyl, center

1шт.

7

179304A1

PADDING

HEADLINER - vinyl, front

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

self-tapping, special, No. 10-16 x 3/4 inch

2шт.

9

193320A1

DOOR COVER

mounting, use on units without radio

1шт.

10

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

8шт.

11

193653A1

HOOD

COVER - rear enclosure, behind seat

1шт.

12

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch, special

4шт.

14

131-143

SPRING NUT,Tinn, U, #10-24

3шт.

15

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

2шт.

16

1339754C3

FOAM INSULATION

PAD - insulation, rear panel

1шт.

17

179308A1

PADDING

COVER - vinyl, right-hand console

1шт.

18

1999639C1

CARPET

FLOORMAT - seat support

1шт.

19

L129442

FLOOR MAT

cab

1шт.

20

L129443

PADDING

insulation, floormat

1шт.

21

1339755C4

NOISE PROTECTION

PAD - insulation, rear floor

1шт.

22

1339790C1

COVER

seal channel

1шт.

23

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

3шт.

24

R46464

CASE

BOX - operators manual

1шт.

25

D126821

CABLE

CORD - manual retaining

1шт.

26

A177462

MIRROR

rear view, includes mounting hardware, replaces L74714 mirror

1шт.

27

114549A1

COAT HOOK

2шт.

28

260-14412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

self-tapping, pan Phillips, No. 8-18 x 3/4 inch

2шт.

29

353-408

PLUG,Dome, .750" hole, Nylon

button, 3/4 inch, cab floor

4шт.

29

353-409

PLUG,Dome, .812" hole, Nylon

button, cab floor, inside cab door

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Upper RH front and seat pedestal, LH side

2шт.

30

179297A1

PAD

PANEL - front insulation, fits in headliner area between items 6 and 7 shown above

1шт.

31

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

2шт.

33

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

2шт.

34

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

2шт.

35

113833A1

BOOT

rubber

1шт.

36

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

37

131-610

SPRING NUT,U, Ret, 1/4"-20

2шт.
