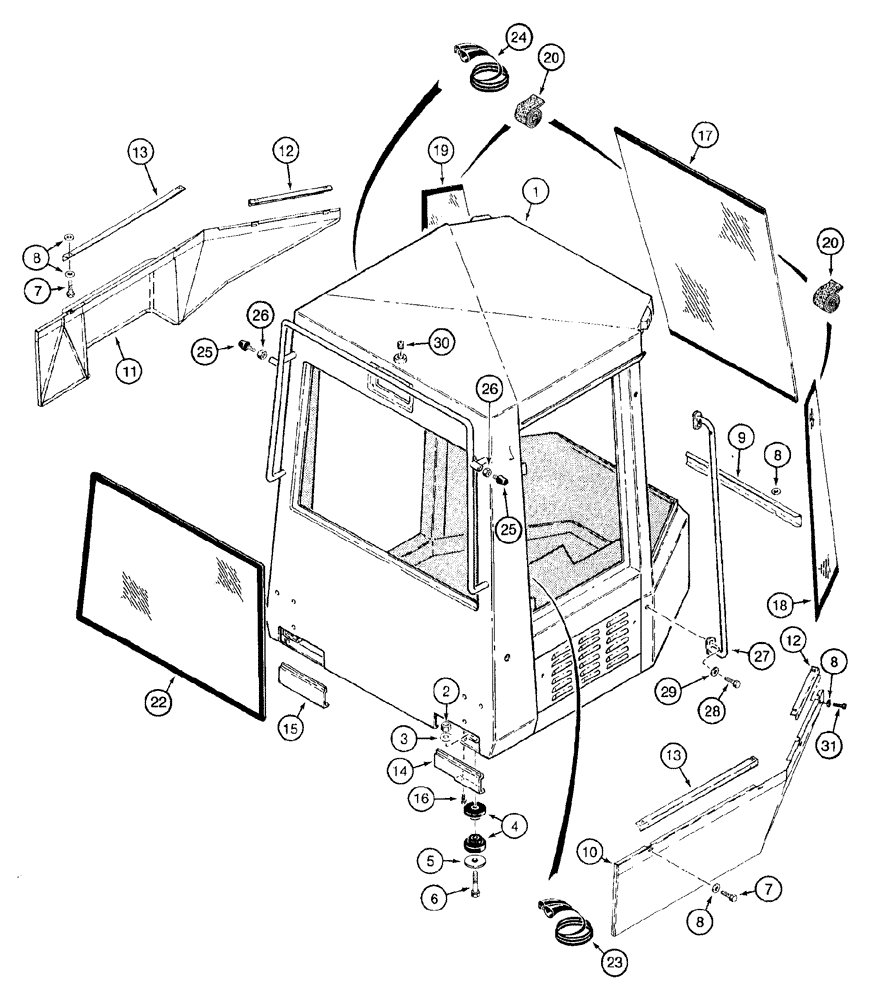

Запчасти Case 921B (9-038) - CAB MOUNTING AND GLASS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, machinery item, order from Machinery Price List

1шт.

1a

197809A1

CAB

ASSEMBLY - shell, includes all glass, doors, window frames and latches with hold opens, left-hand and right-hand grab handles, dome lamp fixture, front wiper motor and center headliner, service replacement, not shown

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

27914R1

WASHER,15/16" x 2 1/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened

4шт.

4

R54331

HITCH DAMPER

MOUNT - rubber, cab support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

spacer, special, cab mounting

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

14шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

22шт.

9

L129571

ANGLE BAR

PANEL - center, lower

1шт.

10

L129870

COVER

lower right-hand

1шт.

11

104733A1

GUARD ASSY.

COVER - lower left-hand

1шт.

12

L129563

ANGLE BAR

BRACKET - cover mounting, front

2шт.

13

L129561

ANGLE BAR

BRACKET - cover mounting, rear

2шт.

14

193322A1

COVER

rear, right-hand mounting access

1шт.

15

193321A1

COVER

rear, left-hand mounting access

1шт.

16

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

17

108425A2

GLASS

front, center, also order items 13 and 14

1шт.

18

108427A2

GLASS

front, right-hand side, also order items 13 and 14

1шт.

19

108426A2

GLASS

front, left-hand side, also order items 13 and 14

1шт.

20

114327A1

TAPE

polyester, 1350 mm (53-1/8 inch) long, polyester

6шт.

21

114328A1

SEALANT

silicone

1шт.

22

1340425C1

GLASS,CAB

rear

1шт.

23

1344165C1

SEAL

3510 mm (138-3/16 inch) long, window, cab, right-hand

1шт.

24

1987253C1

DOOR SEAL

4191 mm (165 inch) long, door, cab, left-hand

1шт.

25

N7673

BUMPER

BUMPER

2шт.

26

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

27

193338A1

HANDLE

front

2шт.

28

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT - hex serrated flange, 1/2 NC x 1 inch

4шт.

29

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

30

221-846

PLUG,Hex Soc, 1"-11 1/2

hex socket, 1 inch PT

1шт.

31

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

4шт.
