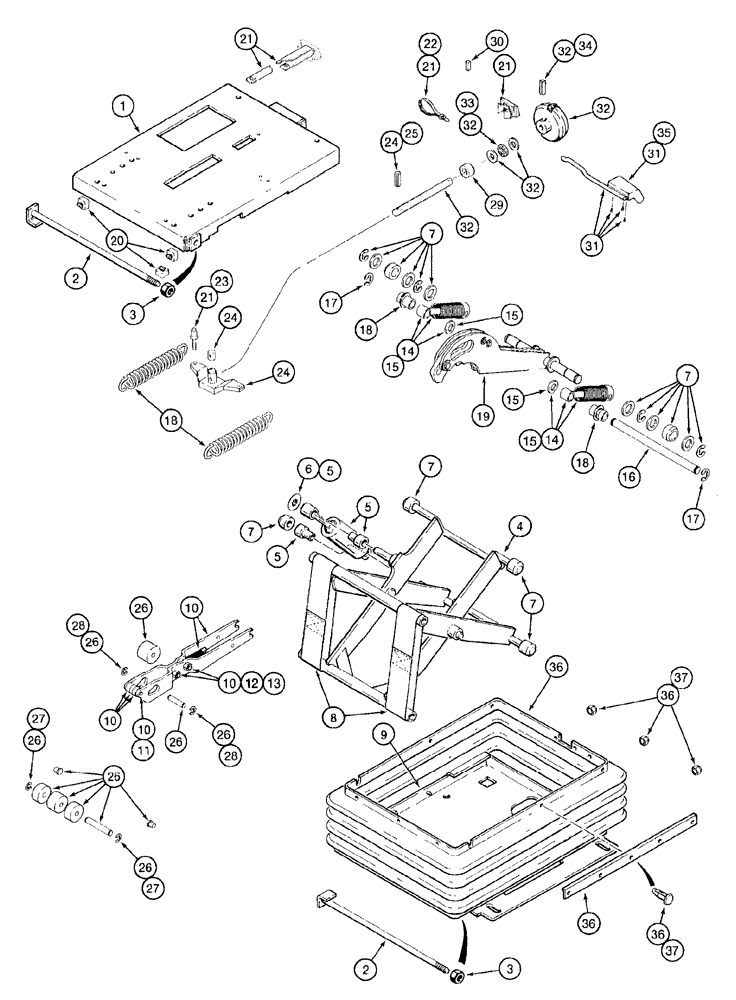

Запчасти Case 921B (9-036) - SUSPENSION SEATS (09) - CHASSIS/ATTACHMENTS

177640A1

SEAT

ASSEMBLY - suspension, vinyl, complete, includes seat and suspension, cab or canopy models, includes parts on figure 9-34

1шт.

177637A1

SEAT

ASSEMBLY - suspension, cloth, complete, includes seat and suspension, cab models, includes parts on page 9-34

1шт.

1999739C1

SEAT SUPPORT

KIT - suspension support, heavy duty

1шт.

1

124133A1

FRAME

HOUSING - upper suspension

1шт.

2

124135A1

SHAFT

Bearing

2шт.

3

230-4216

LOCK NUT,3/8"-16, GA

Special

2шт.

4

124130A1

ARM

suspension

1шт.

5

1999737C1

SHOCK ABSORBER

KIT - includes two bearings, and push nut

1шт.

6

131-425

PUSH-ON NUT,Push, 1/2"

3шт.

7

124145A1

KIT

KIT - roller and tube bearing

1шт.

8

124134A1

BELT

Tether

2шт.

9

124132A1

FRAME

HOUSING - lower suspension

1шт.

10

124137A1

SLIDE

LINK ASSEMBLY - actuator, includes spring, rollers and hardware which is not serviced separately, to service bolt, nut and dowel pin, see items 11-13

1шт.

11

37-1420

DOWEL,1/4" x 1 1/4"

dowel, 1/4 x 1-1/4 inch, hardened

1шт.

12

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage, 1/4 NC x 3/4 inch

2шт.

13

231-1444

NUT,1/4"-20, GB

2шт.

14

124143A1

SET OF PARTS

KIT - height adjustment spring

1шт.

15

124140A1

SPACER

bushing, spring guide

2шт.

16

124139A1

SHAFT

Spring

1шт.

17

NSS

NOT SOLD SEPARAT

E-RING - shaft retainer

2шт.

18

124144A1

SET OF PARTS

KIT - suspension spring, includes two bushings

1шт.

19

124138A1

CAM

ARM - includes hardware

1шт.

20

124136A1

STOP

BUMPER - rubber, mounts to upper housing

3шт.

21

124147A1

SET OF PARTS

KIT - weight adjustment guide, includes guide, tape, rivet and tie, to service tie and rivet, see items 22 and 23

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

23

151-507

RIVET,Pop, 1/8" x .575"

break mandrel, 1/8 x 1/2 inch

1шт.

24

124148A1

SET OF PARTS

KIT - spring adjusting bar, to service roll pin, see item 25

1шт.

25

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

26

124142A1

SET OF PARTS

KIT - cam follower, to service E-rings, see items 27 and 28

1шт.

27

100-3331

SNAP RING,#X31, .243" Dia, E-Type

2шт.

28

100-3337

SNAP RING,E-Type, 0.3" OD

2шт.

29

NSS

NOT SOLD SEPARAT

SPACER - weight adjustment

1шт.

30

NSS

NOT SOLD SEPARAT

KEY - lock

1шт.

31

124141A1

LEVER

KIT - height adjusting arm, includes rod, upper and lower knobs and screws, to service knobs only order 1999738C1 kit, item 35

1шт.

32

124149A1

KIT

KIT - weight adjusting knob, to service bearing and roll pin, see items 33 and 34

1шт.

33

F13537

THRUST BEARING

thrust

1шт.

34

38-31016

PIN,5/32" x 1", Coiled

1шт.

35

1999738C1

LEVER

KIT - suspension knobs, upper and lower height adjusting knobs

1шт.

36

1999736C1

BELLOWS

BOOT ASSEMBLY - suspension, includes pin kit

1шт.

37

132872A1

KIT

Boot pin, package of 23 retainers and 3 dome nuts

1шт.
