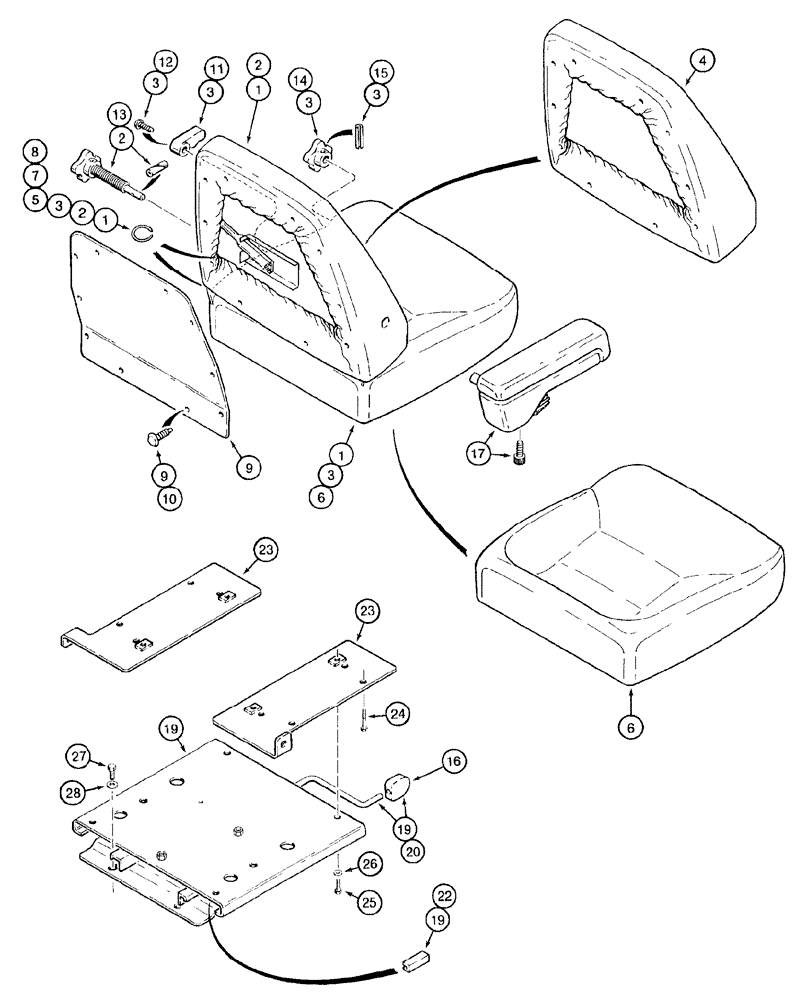

Запчасти Case 921B (9-034) - SUSPENSION SEATS (09) - CHASSIS/ATTACHMENTS

177640A1

SEAT

ASSEMBLY - suspension, vinyl, complete, includes seat and suspension, cab or canopy models, includes parts on figure 9-36

1шт.

177637A1

SEAT

ASSEMBLY - suspension, cloth, complete, includes seat and suspension, cab models, includes parts on figure 9-36

1шт.

1

185370A1

CUSHION ASSY.

KIT - seat assembly, seat cushion and backrest, without suspension, vinyl

1шт.

1

134181A2

PACKAGE

KIT - seat top, without armrest, seat cushion and backrest, without suspension, cloth, replaces 1344004C4 kit

1шт.

2

185371A1

BACKREST COVER

KIT - vinyl, complete with lumbar knob, without armrest

1шт.

2

132886A1

BACKREST

KIT - cloth, complete with lumbar knob, without armrest

1шт.

3

185372A1

CUSHION, SEAT

KIT - vinyl, complete with seat and back tilt knobs

1шт.

3

132888A2

PACKAGE

KIT - seat cushion, cloth, complete with seat and back tilt knobs, replaces 138505A1 kit

1шт.

185373A1

BACKREST COVER

KIT - backrest pad only, vinyl

1шт.

132884A1

BACKREST

KIT - backrest pad only, cloth

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

5

NSS

NOT SOLD SEPARAT

RING - fastener

25шт.

185374A1

CUSHION, SEAT

KIT - seat cushion pad only, vinyl

1шт.

223395A1

PACKAGE

KIT - seat cushion pad, cloth, replaces 132885A1 kit

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - seat cushion

1шт.

7

NSS

NOT SOLD SEPARAT

RING - fastener

1шт.

8

176091A1

PACKAGE,SERVICE

KIT - retaining, hog ring, package of 48 rings for cushions

2шт.

9

1974713C2

PACKAGE

KIT - backrest cover and retainers

1шт.

10

1999693C1

KIT

CLIP - christmas tree, package of 14

1шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob

1шт.

11

NSS

NOT SOLD SEPARAT

HANDLE - recliner and back tilt cover knob, two piece

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - special

1шт.

13

NSS

NOT SOLD SEPARAT

KNOB - lumbar adjustment

1шт.

14

NSS

NOT SOLD SEPARAT

KNOB - seat cushion tilt

1шт.

15

NSS

NOT SOLD SEPARAT

PIN - roll

2шт.

16

NSS

NOT SOLD SEPARAT

KNOB - slide, fore/aft

1шт.

17

1999771C1

ARMREST ASSY.

seat, right-hand, adjustable

1шт.

18

1999770C1

ARMREST ASSY.

seat, left-hand, adjustable, not shown

1шт.

19

1999784C1

SLIDE

KIT - seat slide assembly, heavy duty, complete

1шт.

20

1999960C1

KIT

slide latch, service, includes slide lever, knob, spring and hardware

1шт.

21

230-4216

LOCK NUT,3/8"-16, GA

2шт.

22

1999782C1

BLOCK

KIT - slider block, package of 4

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - adapter

2шт.

24

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

26

495-81112

WASHER,.344" x 3/4" x .120"

flat, 11/32 x 3/4 x 7/64 inch

4шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

28

495-81127

WASHER,0.39" ID x 0.75" OD x 0.07" Thk

flat, 25/64 x 3/4 x 1/16 inch

4шт.
