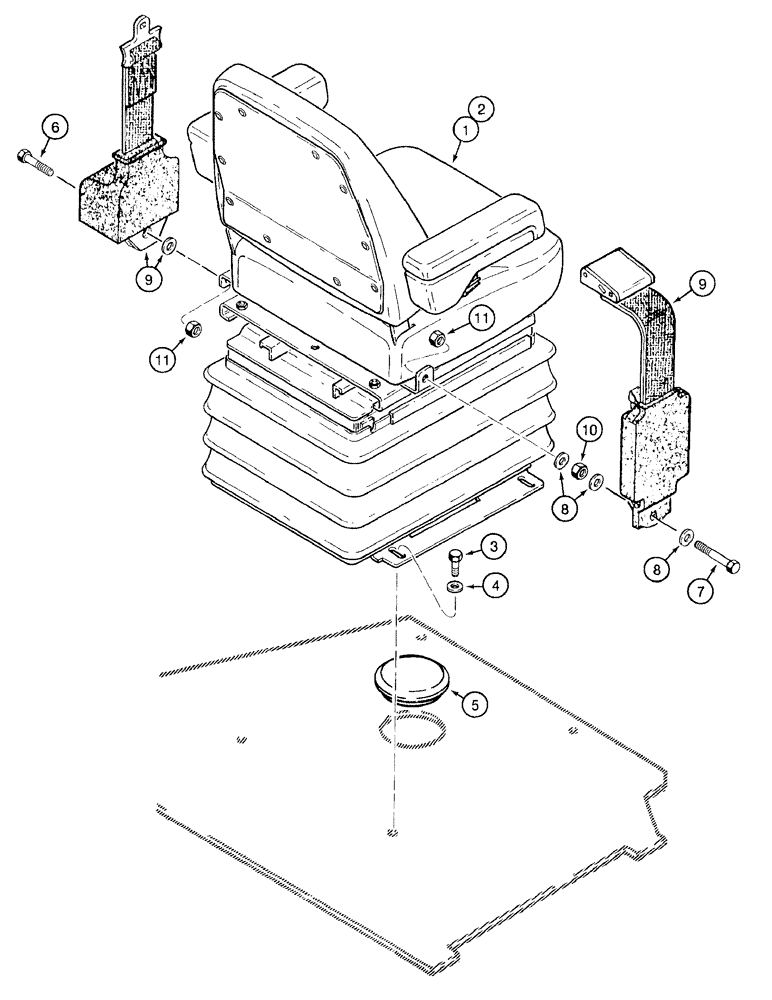

Запчасти Case 921B (9-032) - SEAT, MOUNTING PARTS AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

177640A1

SEAT

ASSEMBLY - suspension, vinyl, cab or canopy models, parts list figures 9-34 and 9-36, seat mounting

1шт.

2

177637A1

SEAT

ASSEMBLY - suspension, cloth, cab models, parts list figures 9-34 and 9-36, seat mounting

1шт.

3

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

Seat mounting

4шт.

4

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

Seat mounting

4шт.

5

353-255

PLUG,3 1/2"

button, 3-1/2 inch, seat mounting

1шт.

5a

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber, Not shown, Seat mounting

1шт.

6

426-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

BOLT - hex, 7/16 NC x 1 inch, grade 8, 76 mm (3 inch) wide seat belt and mounting parts

1шт.

7

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

BOLT - hex, 7/1 6 NF x 1 -3/4 inch, 76 mm (3 inch) wide seat belt and mounting parts

1шт.

8

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64"), 76 mm (3 inch) wide seat belt and mounting parts

3шт.

9

R58418

SAFETY BELT ,3.00" W

Retractable, Includes one washer, seat belt and mounting parts

1шт.

10

425-107

NUT,7/16"-14, G5

76 mm (3 inch) wide seat belt and mounting parts

1шт.

11

231-4217

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16 inch NC, 76 mm (3 inch) wide seat belt and mounting parts

2шт.
