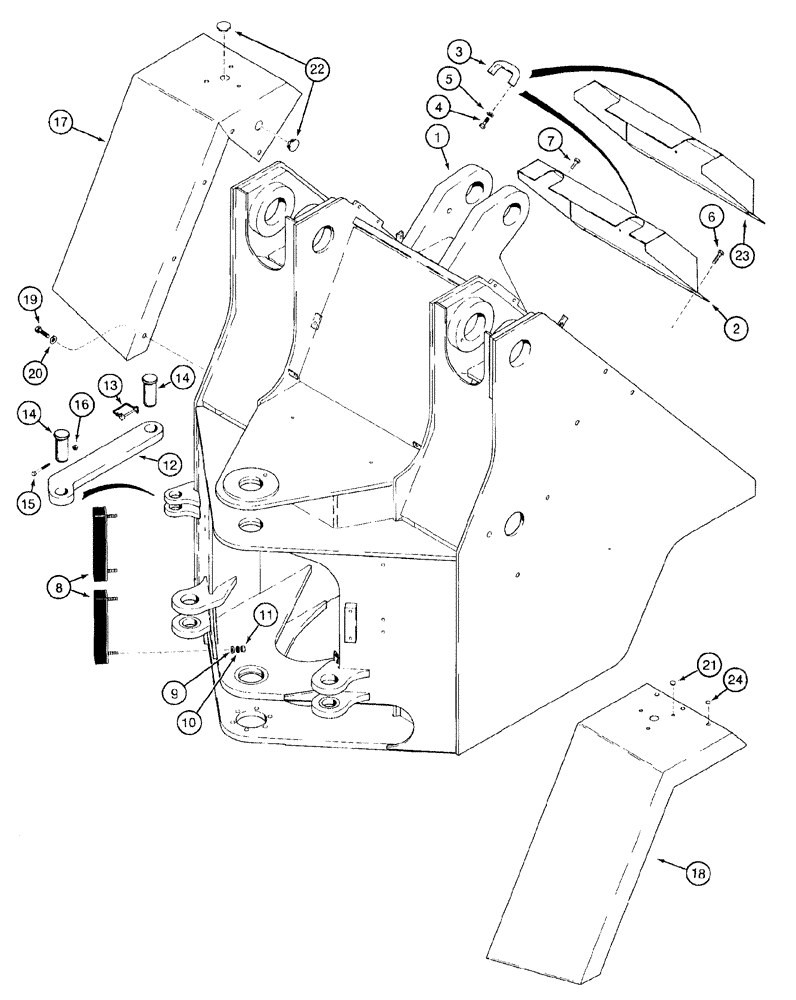

Запчасти Case 921B (9-030) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

1

L127952

CHASSIS

FRAME - front

1шт.

2

L130046

COVER

valve access, front frame, use on units with two spool valve

1шт.

3

A23725

HANDLE

grab, access cover

1шт.

4

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.

5

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

6

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

7

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

8

L108504

BUMPER

rubber, chassis

4шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

8шт.

10

492-11038

LOCK WASHER,3/8"

8шт.

11

425-106

NUT,3/8"-16, Cl 5

8шт.

12

L129248

BAR

LINK - transport/service

1шт.

13

L129282

LINCH PIN

locking

1шт.

14

L129254

LOCK PIN

locking, transport/service link

2шт.

15

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

16

231-1444

NUT,1/4"-20, GB

1шт.

17

L128978

FENDER

front, left-hand

1шт.

18

L128979

FENDER

front, right-hand

1шт.

19

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

10шт.

20

187563A1

SPACER

13 x 25 x 28 mm

10шт.

21

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch

6шт.

22

353-414

PLUG,Dome, 1.375" Hole, Nylon

4шт.

23

L130045

COVER

valve access, front frame, use on units with three or four spool valve

1шт.

24

353-403

PLUG,Dome, .437" hole, Nylon

3шт.
