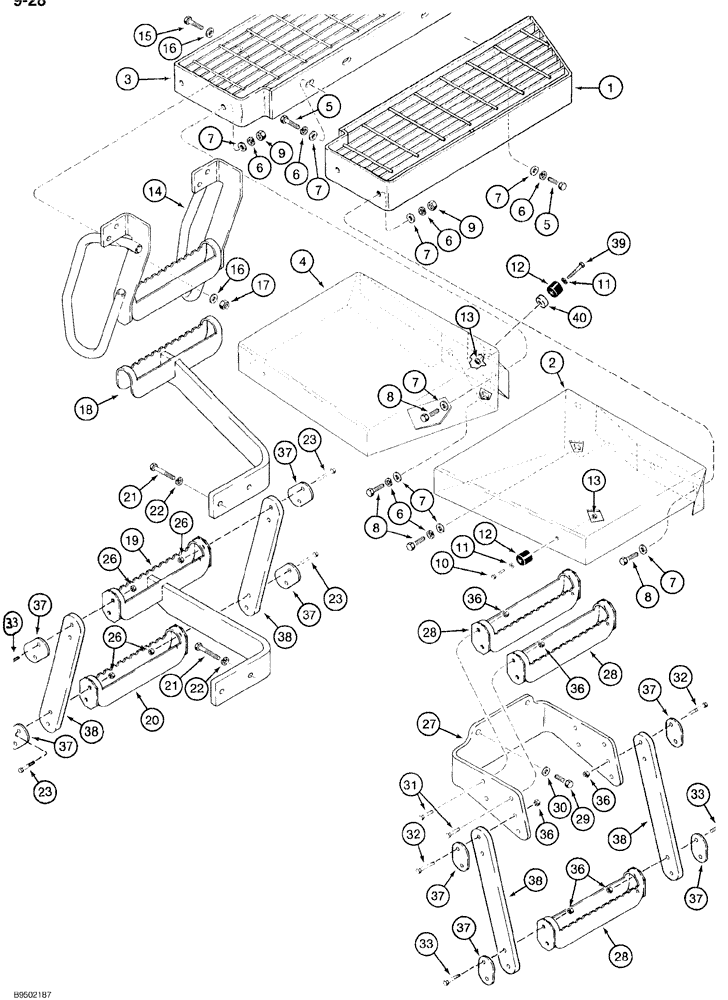

Запчасти Case 921B (9-028) - REAR FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
L126892
GRATING
STEP - platform, right-hand, operators compartment
1шт.
2
L128831
FENDER
right-hand rear
1шт.
3
L126950
STEP
platform, left-hand, operators compartment, replaces L128365 step
1шт.
4
L128832
FENDER
rear, left-hand
1шт.
5
426-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
6шт.
6
80679
LOCK WASHER,1/20.507 CST ZND
14шт.
7
187563A1
SPACER
13 x 25 x 28 mm
18шт.
8
426-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
8шт.
9
425-108
NUT,1/2" - 13, Gr 5
4шт.
10
426-424
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8
BOLT - hex, 1/4 NC x 1-1/2 inch, grade 8
2шт.
11
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16")
3шт.
12
L126483
BUMPER
rubber, stop
3шт.
13
131-461
LOCK NUT,1/4"-20
Heavy hex
3шт.
14
L128383
STEP
top, with handrail
1шт.
15
426-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
4шт.
16
187563A1
SPACER
13 x 25 x 28 mm
8шт.
17
231-1448
NUT,1/2"-13, GB
hex, self-locking, NC
4шт.
18
L128368
STEP
middle, rear frame
1шт.
19
L128367
STEP
lower, rear frame
1шт.
20
135822A1
STEP
bottom, rear frame
1шт.
21
426-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8
BOLT - hex, 1/2 NC x 2-1/4 inch, grade 8
4шт.
22
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
23
426-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
8шт.
26
231-1446
NUT,3/8" - 16, Gr 5
8шт.
27
L130051
SUPPORT
BRACKET - rear step
1шт.
28
135822A1
STEP
upper and lower
3шт.
29
426-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
2шт.
30
187563A1
SPACER
13 x 25 x 28 mm
2шт.
31
426-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
2шт.
32
326-632
BOLT,Hex, 3/8" - 16 x 2", Gr 8
4шт.
33
426-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
4шт.
36
231-1446
NUT,3/8" - 16, Gr 5
10шт.
37
311069A1
LARGE PLATE
PLATE, LARGE support, strap end, replaces 108753A1 plate
8шт.
38
108751A1
SUPPORT
STRAP - step hanger
4шт.
39
426-432
BOLT,Hex, 1/4" - 20 x 2", Gr 8
BOLT - hex, 1/4 NC x 2 inch, grade 8
1шт.
40
L130053
SPACER
rubber bumper
1шт.
Выбрано товаров: 36
