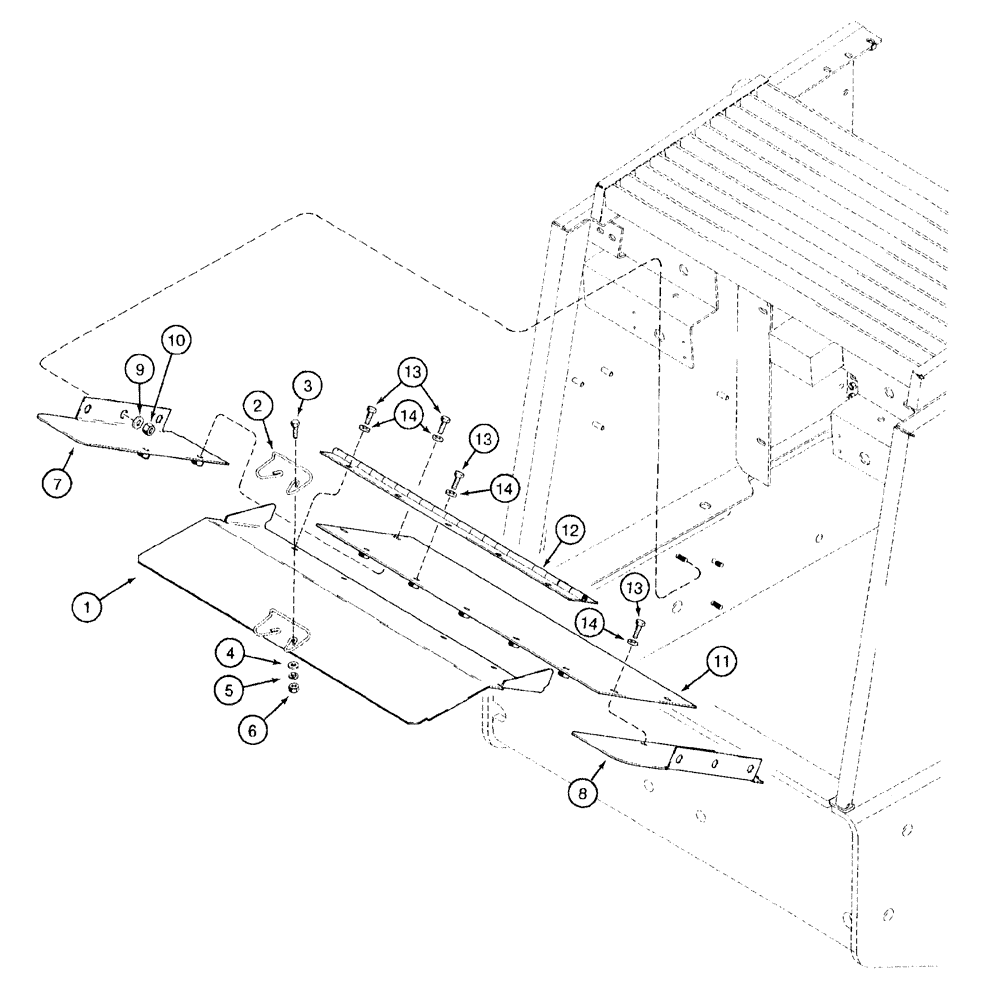

Запчасти Case 921B (9-026) - BATTERY COMPARTMENT COVERS (09) - CHASSIS/ATTACHMENTS

1

L128950

DOOR

battery compartment

1шт.

2

L125636

HANDLE

hold down

1шт.

3

411-310

CARRIAGE BOLT,3/16" - 24 x 5/8", Gr 2

BOLT - carriage, 3/16 NC x 5/8 inch, grade 2

2шт.

4

495-31022

WASHER,#10

2шт.

5

492-11010

LOCK WASHER,#10

2шт.

6

225-14110

NUT,#10-24

2шт.

7

L128947

LARGE PLATE

PLATE, LARGE cover support, left-hand, prior to P.I.N. JEE0051001

1шт.

7

223258A1

LARGE PLATE

PLATE, LARGE cover support, left-hand, I P.I.N. JEE0051001 and after

1шт.

8

L128948

LARGE PLATE

PLATE, LARGE cover support, right-hand, prior to P.I.N. JEE0051001

1шт.

8

223259A1

LARGE PLATE

PLATE, LARGE cover support, right-hand, P.I.N. JEE0051001 and after

1шт.

9

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

6шт.

10

231-1446

NUT,3/8" - 16, Gr 5

6шт.

11

L128949

COVER

battery compartment, prior to P.I.N. JEE0051001

1шт.

11

223260A1

LARGE PLATE

PLATE, LARGE COVER - battery compartment, P.I.N. JEE0051001 and after

1шт.

12

L128887

HINGE

battery compartment cover

1шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

14шт.

14

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

14шт.
