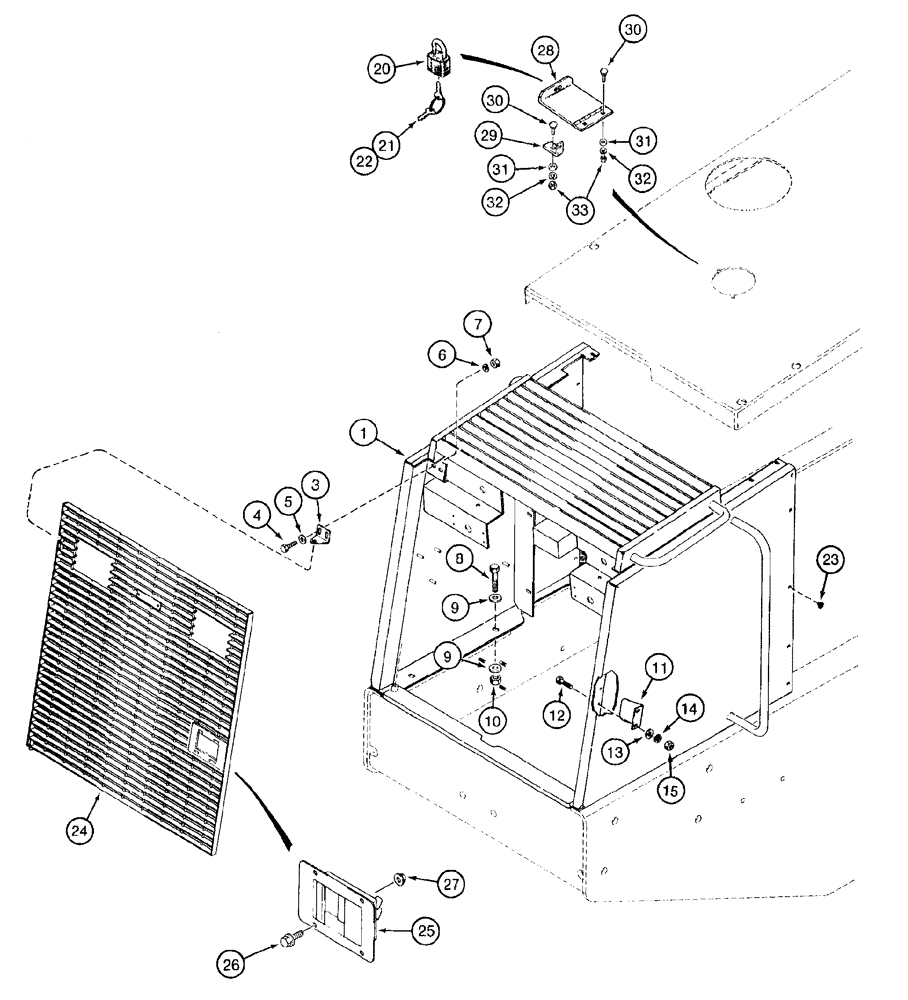

Запчасти Case 921B (9-024) - RADIATOR GUARD AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

L129700

GUARD ASSY.

radiator, prior to P.I.N. JEE0051001

1шт.

1

222905A1

PROTECTOR

GUARD - radiator, P.I.N. JEE0051001 and after

1шт.

3

L128614

SUPPORT

BRACKET - upper grille support

1шт.

4

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT - hex, 5/8 NC x 2 inch, grade 8

6шт.

9

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

12шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

L129755

FASTENER

CATCH - grille lever

1шт.

12

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

13

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

15

425-105

NUT,5/16"-18, G5

2шт.

20

D93753

PADLOCK

includes keys, if used

2шт.

21

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

22

R29555

KEY

for Master padlock only, if used

2шт.

23

L126856

RIVET

CUSHION - rubber

8шт.

24

193814A1

GRILLE ASSY

radiator, with bolt-on latch

1шт.

25

R56221

LATCH

LATCH - used with item 24 grille

1шт.

26

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

28

L112374

COVER

radiator hinge

1шт.

29

L112314

SUPPORT

TAB - radiator cap access cover lock

1шт.

30

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

31

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

3шт.

32

492-11038

LOCK WASHER,3/8"

3шт.

33

425-106

NUT,3/8"-16, Cl 5

3шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

Not Shown

2шт.
