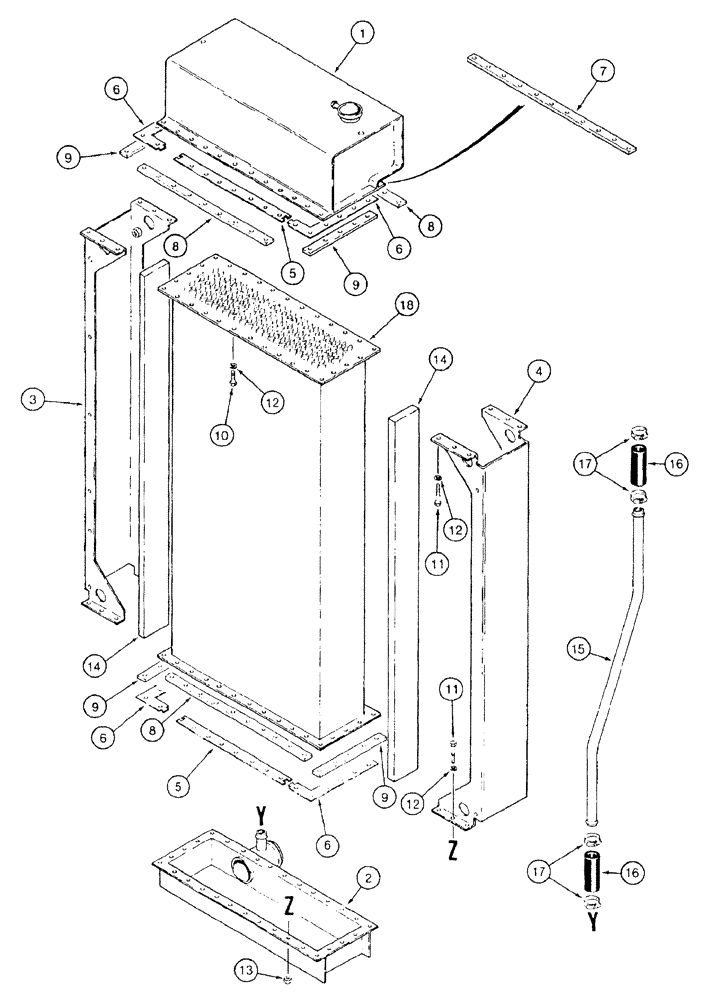

Запчасти Case 921B (2-006) - RADIATOR ASSEMBLY (02) - ENGINE

106518A1

RADIATOR

ASSEMBLY - engine cooling, prior to P.I.N. JEE0051001

1шт.

1

106491A1

RESERVOIR

radiator, upper, prior to P.I.N. JEE0051001

1шт.

2

117978A1

RESERVOIR

radiator, lower, prior to P.I.N. JEE0051001

1шт.

3

106493A1

FRAME

left-hand, with 12 weld nuts, prior to P.I.N. JEE0051001

1шт.

4

106494A1

FRAME

right-hand, with 4 weld nuts, prior to P.I.N. JEE0051001

1шт.

5

106495A1

STRIP-GASKET

strip, upper and lower reservoirs, prior to P.I.N. JEE0051001

4шт.

6

106496A1

GASKET

end, upper and lower reservoirs, prior to P.I.N. JEE0051001

4шт.

7

106498A1

CONNECTING STRIP

PLATE - tapped, 572 mm long, prior to P.I.N. JEE0051001

1шт.

8

106499A1

CONNECTING STRIP

PLATE - reinforcement, 524 mm long, prior to P.I.N. JEE0051001

4шт.

9

106500A1

CONNECTING STRIP

PLATE - reinforcement, 206 mm long, piror to P.I.N. JEE0051001

4шт.

10

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

Prior to P.I.N. JEE0051001

36шт.

11

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

BOLT - hex, 5/16 NC x 1-1/4 inch, grade 8, prior to P.I.N. JEE0051001

24шт.

12

492-11031

LOCK WASHER,5/16"

Prior to P.I.N. JEE0051001

60шт.

13

329-105

NUT,5/16"-18, G8

Prior to P.I.N. JEE0051001

48шт.

14

106501A1

STIFFENER

INSULATOR - vibration dampner, core, piror to P.I.N. JEE0051001

2шт.

15

117979A1

TUBE,25.4 mm OD, 1020, 152 mm Length

bypass, prior to P.I.N. JEE0051001

1шт.

16

106630A1

RADIATOR HOSE

Prior to P.I.N. JEE0051001

2шт.

17

106515A1

MOUNTING CLIP

CLAMP - hose, prior to P.I.N. JEE0051001

4шт.

18

106503A1

RADIATOR

CORE - radiator, includes header, prior to P.I.N. JEE0051001

1шт.

223916A1

RADIATOR

ASSEMBLY - engine cooling, P.I.N. JEE0051001 and after

1шт.

1

238034A1

RESERVOIR

radiator, upper, P.I.N. JEE0051001 and after

1шт.

2

238035A1

RESERVOIR

radiator, lower, P.I.N. JEE0051001 and after

1шт.

3

238037A1

FRAME

with 12 weld nuts, P.I.N. JEE0051001 and after

1шт.

4

238036A1

FRAME

with 4 weld nuts, P.I.N. JEE0051001 and after

1шт.

5

238039A1

STRIP-GASKET

strip, upper and lower reservoirs, P.I.N. JEE0051001 and after

4шт.

6

238038A1

GASKET

end, upper and lower reservoirs, P.I.N. JEE0051001 and after

4шт.

7

238040A1

CONNECTING STRIP

PLATE - tapped, P.I.N. JEE0051001 and after

1шт.

8

238042A1

CONNECTING STRIP

PLATE - reinforcement, long, P.I.N. JEE0051001 and after

4шт.

9

238041A1

CONNECTING STRIP

PLATE - reinforcement, short, P.I.N. JEE0051001 and after

4шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

P.I.N. JEE0051001 and after

41шт.

11

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch, P.I.N. JEE0051001 and after

23шт.

12

492-11031

LOCK WASHER,5/16"

P.I.N. JEE0051001 and after

64шт.

13

329-105

NUT,5/16"-18, G8

P.I.N. JEE0051001 and after

51шт.

14

106501A1

STIFFENER

INSULATOR - vibration dampner, core, P.I.N. JEE0051001 and after

2шт.

15

117979A1

TUBE,25.4 mm OD, 1020, 152 mm Length

bypass, P.I.N. JEE0051001 and after

1шт.

16

106630A1

RADIATOR HOSE

P.I.N. JEE0051001 and after

2шт.

17

106515A1

MOUNTING CLIP

CLAMP - hose, P.I.N. JEE0051001 and after

4шт.

18

238033A1

RADIATOR

CORE - includes header, P.I.N. JEE0051001 and after

1шт.
