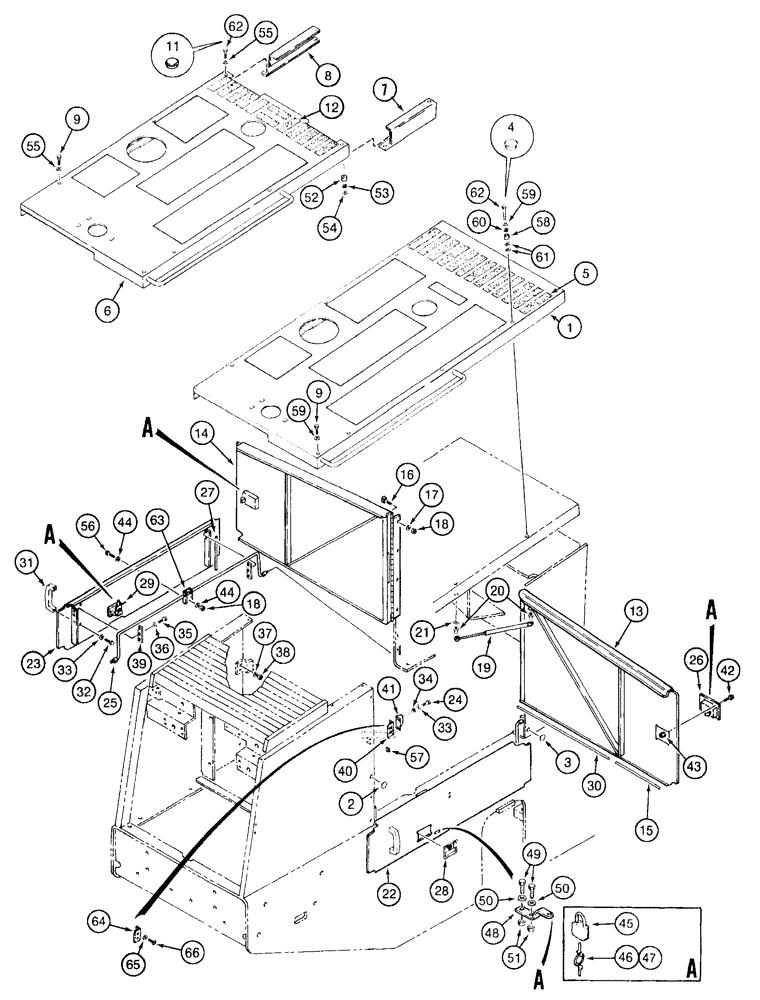

Запчасти Case 921B (9-020) - HOOD AND SIDE DOORS (09) - CHASSIS/ATTACHMENTS

1

193815A1

HOOD ASSY.

engine top, models without air conditioning, prior to P.I.N. JEE0051001

1шт.

1

229335A1

HOOD ASSY.

engine top, models without air conditioning, P.I.N. JEE0051001 and after

1шт.

2

L126856

RIVET

CUSHION - rubber

1шт.

3

107864A1

HITCH DAMPER

CUSHION - rubber

4шт.

4

353-413

PLUG,Dome, 1.187" hole, Nylon

button, 1-3/16 inch

7шт.

5

D55216

PAD,2" x 9"

if used

13шт.

6

193194A1

HOOD ASSY.

engine top, models with air conditioning, prior to P.I.N. JEE0051001 , no longer available, order 229338A1 hood, item 6 below

1шт.

6

229338A1

HOOD ASSY.

engine top, models with air conditioning, P.I.N. JEE0051001 and after

1шт.

7

L128772

SLIDE

CHANNEL - hood, right-hand, models with air conditioning

1шт.

8

L128773

SLIDE

CHANNEL - hood, left-hand, models with air conditioning

1шт.

9

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

11

353-413

PLUG,Dome, 1.187" hole, Nylon

button, 1-3/16 inch

5-7шт.

12

D55216

PAD,2" x 9"

if used

13шт.

13

109549A1

DOOR ASSY.

engine access, upper right-hand

1шт.

14

109550A1

DOOR ASSY.

engine access, upper left-hand

1шт.

15

D60180

STRIP

TRIM - edge, 368 mm (14-1/2 inch) long, cut from F42827 bulk trim, see below

2шт.

16

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

8шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

8шт.

18

425-106

NUT,3/8"-16, Cl 5

12шт.

19

L129243

GAS STRUT,498mm Extended, 321mm Compressed

upper engine access door

2шт.

20

1340345C1

BALL STUD

BALL PIN STUD

4шт.

21

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

22

107676A1

DOOR ASSY.

engine access, lower right-hand, prior to P.I.N. JEE0057700

1шт.

22a

318863A1

DOOR ASSY.

engine access, lower right-hand, P.I.N. JEE0057700 and after, not shown

1шт.

23

107677A1

DOOR ASSY.

engine access, lower left-hand, prior to P.I.N. JEE0057700

1шт.

23a

318862A1

DOOR ASSY.

engine access, lower left-hand, P.I.N. JEE0057700 and after, not shown

1шт.

24

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

25

107631A1

STEM

ROD - pivot, lower engine access door

2шт.

26

R56221

LATCH

LATCH - upper access door

2шт.

27

D38500

LINING

TRIM - edge, 249 mm (9-13/16 inch) long, cut from F42827 bulk trim, see below

4шт.

28

109777A2

LATCH

HANDLE - door, prior to P.I.N. JEE0057700

1шт.

28a

318846A1

LATCH

HANDLE - door, lower access door, right-hand, P.I.N. JEE0057700 and after, not shown

1шт.

29

109778A2

LATCH

HANDLE - door, prior to P.I.N. JEE0057700

1шт.

29a

318847A1

LATCH

HANDLE - door, lower access door, left-hand, P.I.N. JEE0057700 and after, not shown

1шт.

30

D50352

LINING

TRIM - edge, 762 mm (30 inch) long, cut from F42827 bulk trim, see below

2шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long, use to make items 15, 27, and 30

1шт.

31

A23725

HANDLE

grab, engine access door

2шт.

32

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

4шт.

33

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

8шт.

34

492-11031

LOCK WASHER,5/16"

4шт.

35

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

36

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

37

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

Prior to P.I.N. JEE0051001

4шт.

38

131-206

NUT,3/8"-16

Heavy hex, self-locking, prior to P.I.N. JEE0051001

4шт.

39

L129083

SUPPORT

BRACKET - rod retaining

4шт.

40

L127956

SUPPORT

BRACKET - door striker, prior to P.I.N. JEE0051001

2шт.

41

L127958

LARGE PLATE

PLATE, LARGE striker

2шт.

42

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

43

231-5344

FLANGE NUT,Flg, 1/4"-20

8шт.

44

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

45

D93753

PADLOCK

includes keys, if used

4шт.

46

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

47

R29555

KEY

for Master padlock only, if used

2шт.

48

109771A1

SUPPORT

BRACKET - lockup, access door

2шт.

49

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

BOLT - hex, 5/16 NC x 1-1/4 inch, grade 8

4шт.

50

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

51

425-105

NUT,5/16"-18, G5

4шт.

52

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER - models with air conditioning

2шт.

53

492-11062

BEARING WASHER,5/8"

Models with air conditioning

2шт.

54

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened, Models with air conditioning

2шт.

55

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened, Models with air conditioning

7шт.

56

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

57

131-637

SPRING NUT,Ret, J, 5/16"-18

4шт.

58

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER - nodels without air conditioning

2шт.

59

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened, Models without air conditioning

5шт.

60

492-11062

BEARING WASHER,5/8"

Models without air conditioning

2шт.

61

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch, models without air conditioning

4шт.

62

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

2шт.

63

108330A1

SUPPORT

PLATE - adjuster

2шт.

64

230741A1

SUPPORT

BRACKET - door striker, P.I.N. JEE0051001 and after

2шт.

65

496-21041

WASHER,13/32" x 13/16" x .089", HDN

P.I.N. JEE0051001 and after

4шт.

66

461-73816

HEX SOC SCREW,Btn Hd, 3/8"-16 x 1"

BOLT - hex socket button, 3/8 NC x 1 inch, P.I.N. JEE0051001 and after

4шт.
