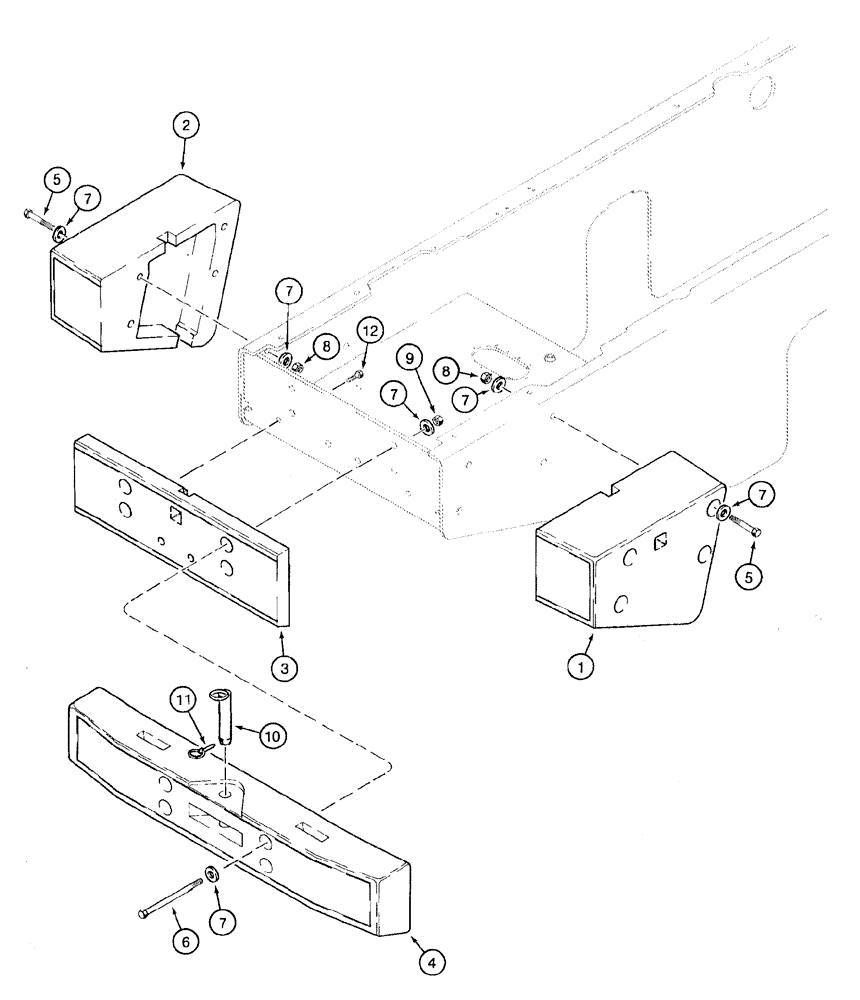

Запчасти Case 921B (9-018) - COUNTERWEIGHTS (4785 POUND TOTAL WEIGHT) (09) - CHASSIS/ATTACHMENTS

1

L129802

BALANCER

COUNTERWEIGHT - right-hand rear, 1345 pound

1шт.

2

L129803

BALANCER

COUNTERWEIGHT - left-hand rear, 1345 pound

1шт.

3

L129801

BALANCER

COUNTERWEIGHT - center rear, 545 pound

1шт.

4

L129804

BALANCER

COUNTERWEIGHT - center rear, outer, 1550 pound

1шт.

5

326-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 8

8шт.

6

326-16192

BOLT,Hex, 1" - 8 x 12", Gr 8

4шт.

7

496-21106

WASHER,1 1/16" x 2" x .209", HDN

20шт.

8

429-1016

NUT,1"-8, G8

8шт.

9

429-1016

NUT,1"-8, G8

4шт.

10

101311A1

HITCH PIN

Hitch

1шт.

11

D33805

PIN

locking

1шт.

12

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

hex, 3/4 NC x 1-3/4 inch, grade 8

2шт.

13

S243101

WEAR PAD

anti-skid, cut from S84068 bulk trim, wide, not shown

4шт.

14

D55216

PAD,2" x 9"

narrow, not shown, if used

2шт.
