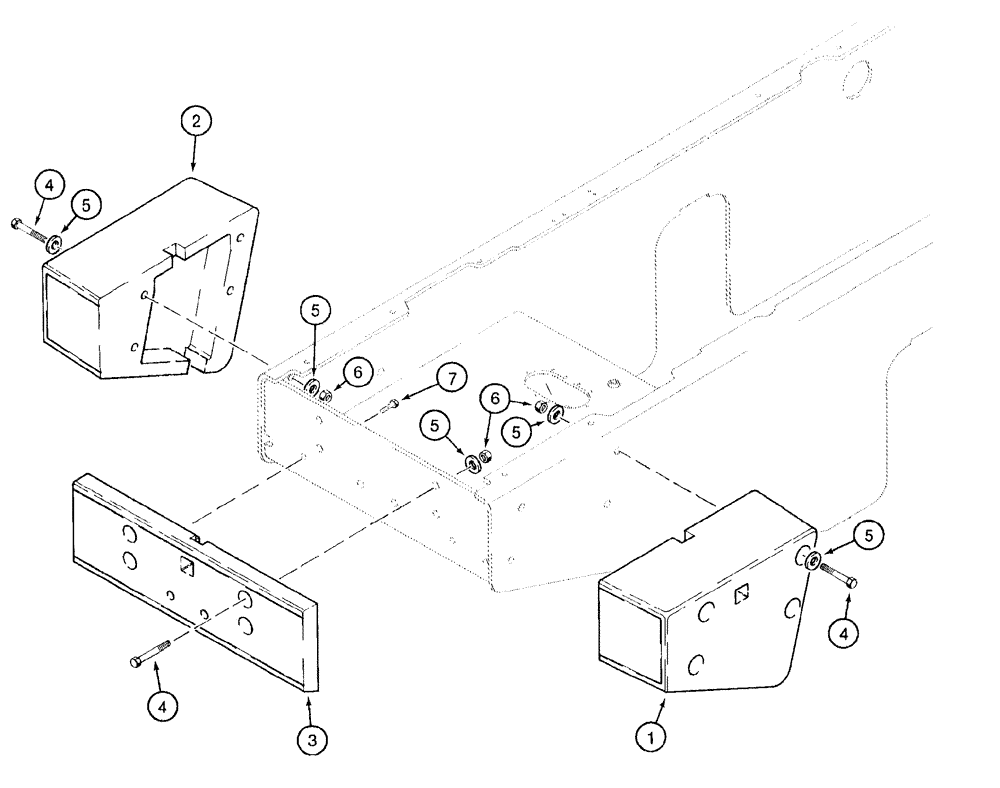

Запчасти Case 921B (9-016) - COUNTERWEIGHTS (3235 POUND TOTAL WEIGHT) (09) - CHASSIS/ATTACHMENTS

1

L129802

BALANCER

COUNTERWEIGHT - right-hand rear, 1345 pound

1шт.

2

L129803

BALANCER

COUNTERWEIGHT - left-hand rear, 1345 pound

1шт.

3

L129801

BALANCER

COUNTERWEIGHT - center rear, 545 pound

1шт.

4

326-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 8

12шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

20шт.

6

429-1016

NUT,1"-8, G8

12шт.

7

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

hex, 3/4 NC x 1-3/4 inch, grade 8

2шт.

8

S243101

WEAR PAD

anti-skid, cut from S84068 bulk trim, counterweight, not shown

4шт.
