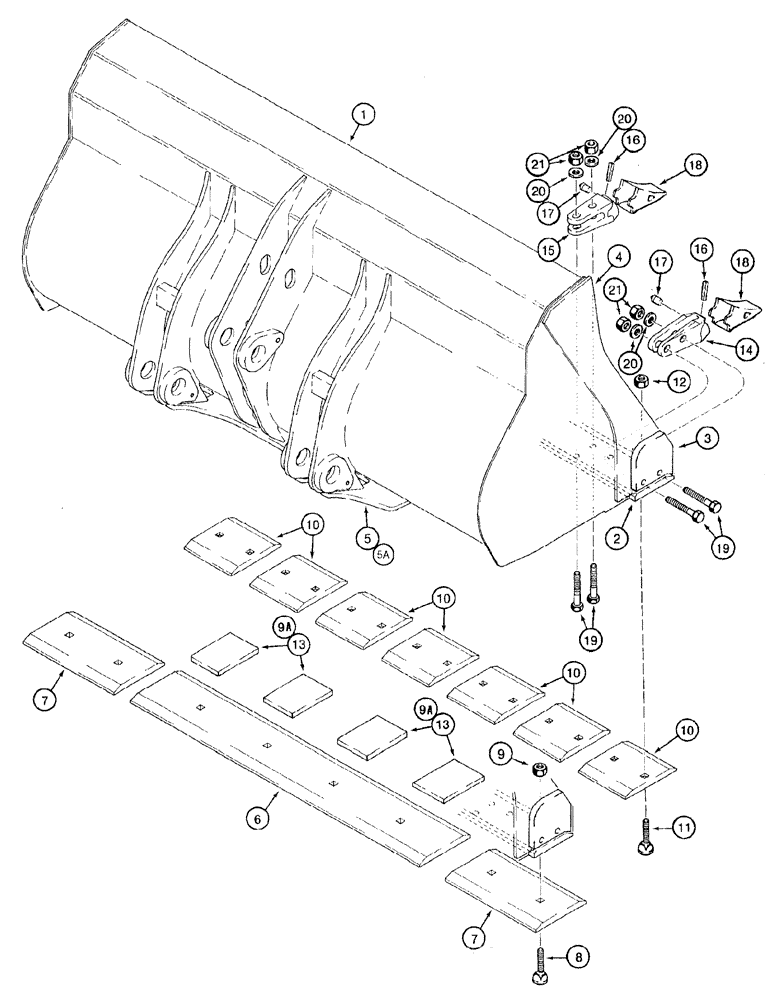

Запчасти Case 921B (9-010) - LOADER BUCKETS AND CUTTING EDGES (4.75 CUBIC YARD) (09) - CHASSIS/ATTACHMENTS

L129095

BUCKET

ASSEMBLY - loader, order from Machinery Price List, 120 inch wide, see below, no longer available, order 236062A1 bucket assembly

1шт.

236062A1

BUCKET ASSEMBLY - loader, with horshoe-shaped cutouts, replaces L129095 bucket assembly

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L129096

EDGE, CUTTING

bucket, weld on

1шт.

3

L130041

EDGE, CUTTING

bucket corner, weld on

2шт.

4

L130042

EDGE

cutting, bucket side, weld on

2шт.

5

L128388

LARGE PLATE

PLATE, LARGE bucket skid, with oblong cutouts, used with L129095 bucket assembly

1шт.

5a

236063A1

PLATE

bucket skid, with horshoe-shaped cutouts, used with 236062A1 bucket assembly

1шт.

6

L128861

EDGE, CUTTING

center, bolt on three-piece, if used

1шт.

7

L128862

EDGE, CUTTING

end, bolt on three-piece, if used

2шт.

8

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

BOLT - plow, 1 NC x 3-1/2 inch, grade 8

8шт.

9

429-1016

NUT,1"-8, G8

8шт.

9a

L129601

LARGE PLATE

PLATE, LARGE bucket skid, weld on, used on 4.75 cubic yard bucket with three-piece bolt on cutting edge and bucket teeth, if used

4шт.

10

L129097

EDGE, CUTTING

EDGE - cutting, segment, bolt on, seven-piece, if used

7шт.

11

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

BOLT - plow, 1 NC x 3-1/2 inch, grade 8, bolt on seven-piece cutting edge, if used

14шт.

12

429-1016

NUT,1"-8, G8

Bolt on seven-piece cutting edge, if used

14шт.

13

L129601

LARGE PLATE

PLATE, LARGE bucket skid, weld on, used on 4.75 cubic yard bucket with seven-piece bolt on cutting edge and bucket teeth, if used

4шт.

230415A1

TOOTH

ASSEMBLY - bucket, corner, replaces L128975 tooth assembly, bucket teeth

2шт.

L128973

TOOTH

ASSEMBLY - bucket, center. bucket teeth

6шт.

14

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner, bucket teeth

1шт.

15

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, bucket teeth

1шт.

16

S301663

PIN

flex, point retaining, bucket teeth

1шт.

17

S301664

PLUG

pin, bucket teeth

1шт.

18

S301662

POINT

tooth, bucket teeth

1шт.

19

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

BOLT - hex, 1 NC x 3-1/2 inch, grade 8, bucket teeth

16шт.

20

496-21106

WASHER,1 1/16" x 2" x .209", HDN

Bucket teeth

16шт.

21

429-1016

NUT,1"-8, G8

Bucket teeth

16шт.
