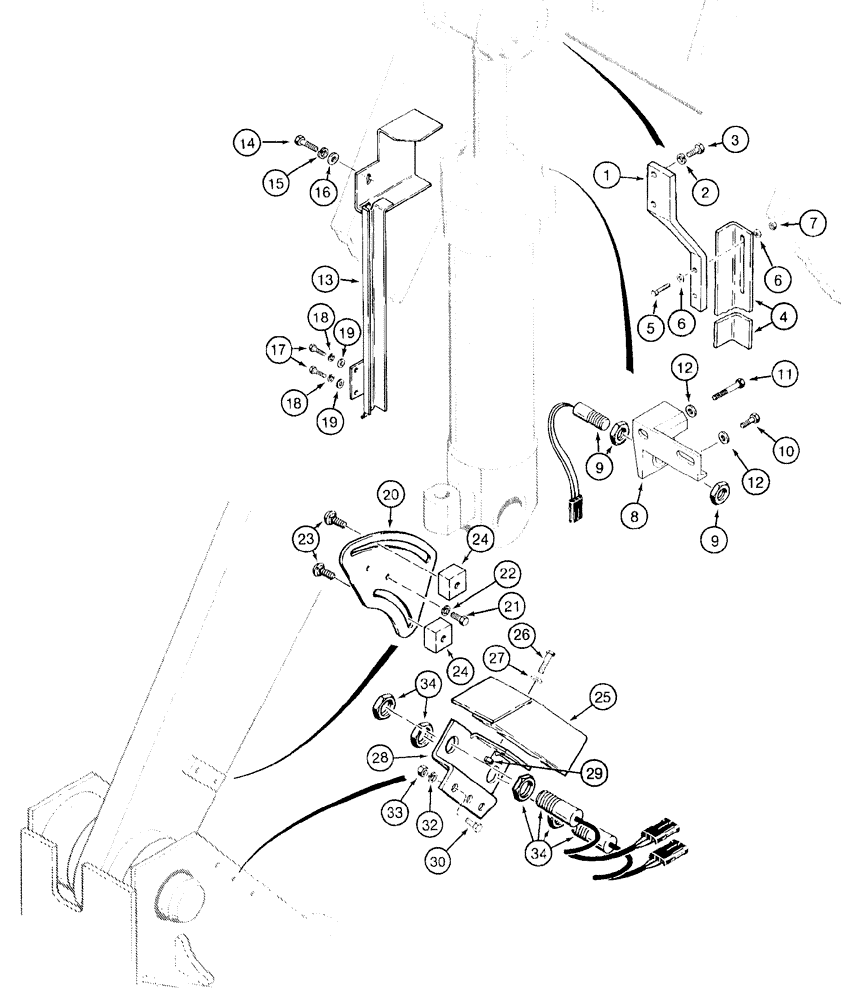

Запчасти Case 921B (9-002) - LOADER BUCKET RETURN-TO-DIG, HEIGHT CONTROL, AND RETURN-TO-TRANSPORT (09) - CHASSIS/ATTACHMENTS

1

L128592

SUPPORT

BRACKET - return-to-dig

1шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

Return-to-dig

2шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Return-to-dig

2шт.

4

L128593

SUPPORT

BAR - sensing, return-to-dig

1шт.

5

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

Return-to-dig

2шт.

6

187563A1

SPACER

13 x 25 x 28 mm, return-to-dig

4шт.

7

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC, Return-to-dig

2шт.

8

L125983

SUPPORT

BRACKET - mounting, proximity switch, return-to-dig

1шт.

9

1546497C1

SWITCH

proximity, return-to-dig, includes nuts

1шт.

10

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

Return-to-dig

1шт.

11

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

Return-to-dig

1шт.

12

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch, return-to-dig

2шт.

13

L128589

GUARD ASSY.

harness, return-to-dig

1шт.

14

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Return-to-dig

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

Return-to-dig

1шт.

16

187563A1

SPACER

13 x 25 x 28 mm, return-to-dig

1шт.

17

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

Return-to-dig

2шт.

18

492-11038

LOCK WASHER,3/8"

Return-to-dig

2шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Return-to-dig

2шт.

20

104265A1

LARGE PLATE

PLATE, LARGE PLATE - mounting, actuator switches, height control and return-to-transport

1шт.

21

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

Height control and return-to-transport

2шт.

22

492-11038

LOCK WASHER,3/8"

Height control and return-to-transport

2шт.

23

411-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 2

Height control and return-to-transport

2шт.

24

L125976

SWITCH

ACTUATOR - switch, proximity, height control and return-to-transport

2шт.

25

L125258

COVER

proximity switches, height control and return-to-transport

1шт.

26

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

Height control and return-to-transport

2шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Height control and return-to-transport

2шт.

28

L125982

SUPPORT

BRACKET - mounting, proximity switches, height control and return-to-transport

1шт.

29

131-856

SPRING NUT,Ret, J, 3/8"-16

Height control and return-to-transport

1шт.

30

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

Height control and Return to transport

1шт.

32

492-11038

LOCK WASHER,3/8"

Height control and return-to-transport

2шт.

33

425-106

NUT,3/8"-16, Cl 5

Height control and return-to-transport

2шт.

34

1546498C1

SWITCH

proximity, height control and return-to-transport

2шт.
