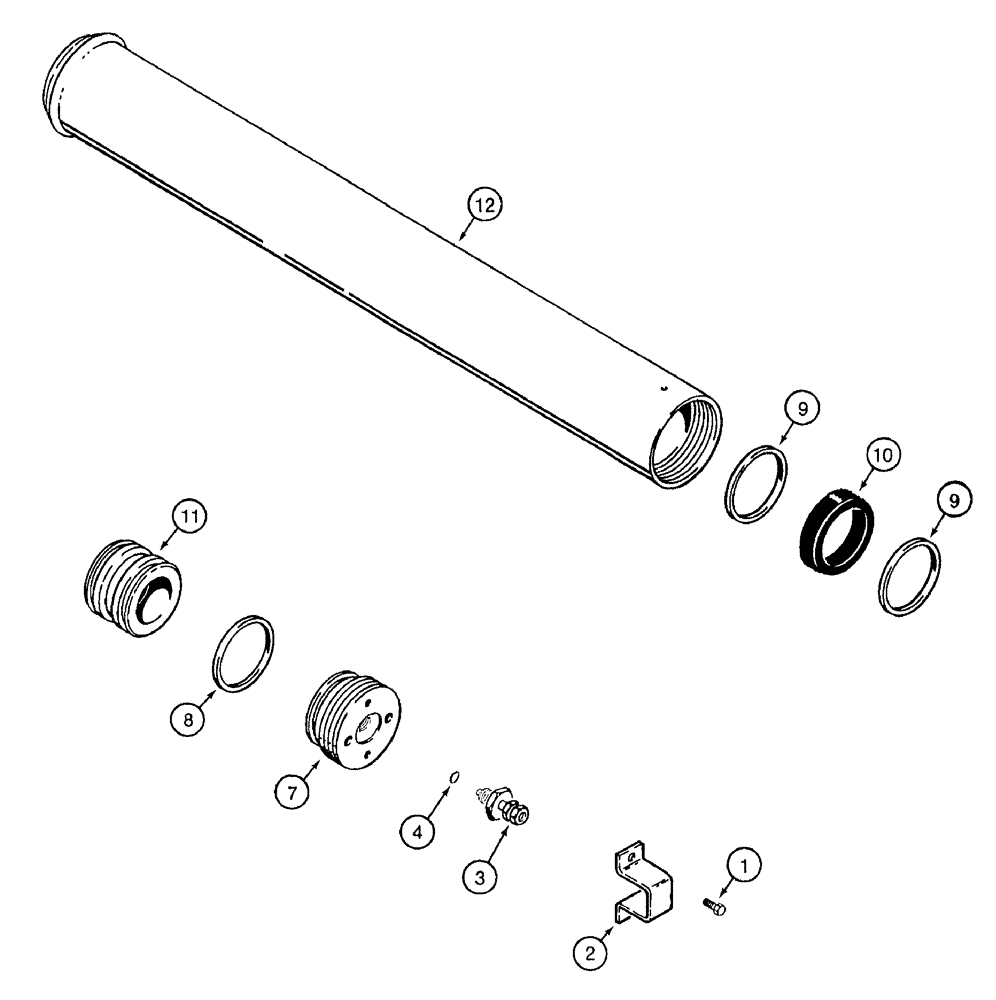

Запчасти Case 921B (8-084) - ACCUMULATOR ASSEMBLY - HYDRAULIC (08) - HYDRAULICS

L118361

ACCUMULATOR

ASSEMBLY - hydraulic, see figure 8-60 for mounting

1шт.

1

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

self-tapping, hex head, No. 10 NC x 3/8 inch

2шт.

2

192895A1

PROTECTOR

GUARD - valve, replaces 1978140C1 bracket

1шт.

3

192900A1

VALVE

ASSEMBLY - accumulator charging, replaces 179066A1 valve

1шт.

4

1978158C1

O-RING

O-RING - valve

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND - accumulator

1шт.

1978141C1

SEAL KIT

Accumulator

1шт.

8

NSS

NOT SOLD SEPARAT

RING - seal, gland

1шт.

9

NSS

NOT SOLD SEPARAT

RING - wear, Teflon, piston

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - accumulator

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - accumulator

1шт.
