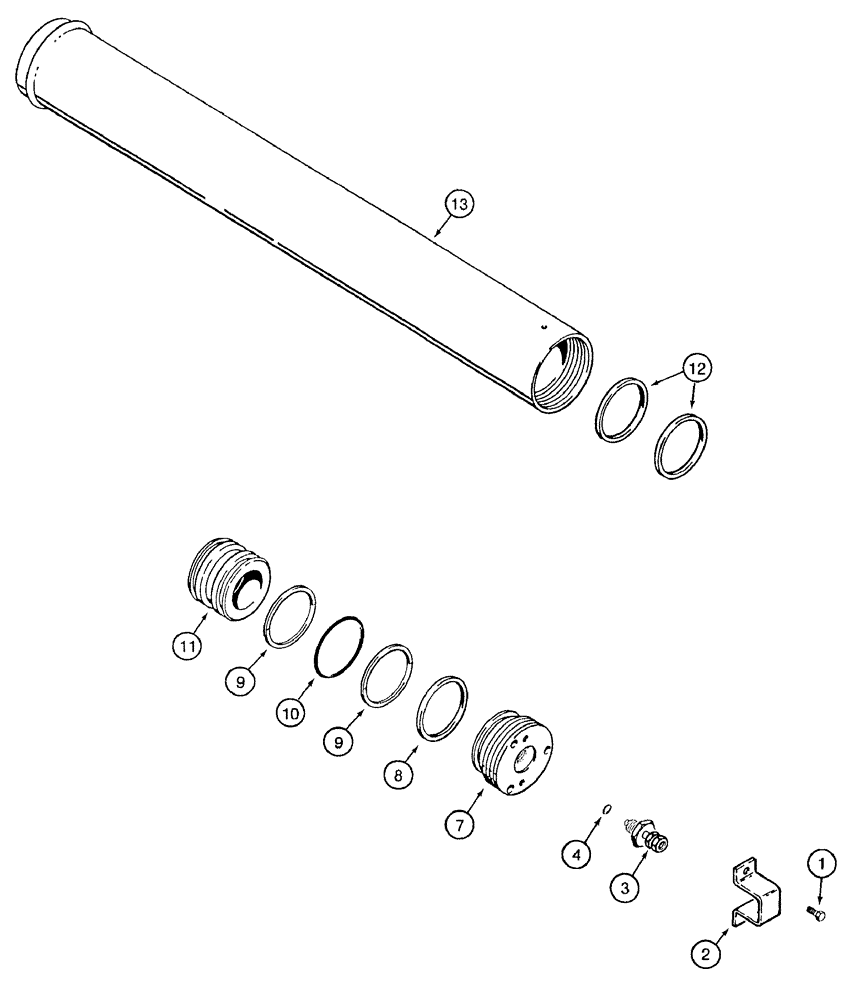

Запчасти Case 921B (8-082) - ACCUMULATOR ASSEMBLY - RIDE CONTROL (08) - HYDRAULICS

130354A1

ACCUMULATOR

ASSEMBLY - ride control, see figure 8-74 for mounting

1шт.

1

S301367

SCREW

special, bracket

2шт.

2

1341920C1

PROTECTOR

GUARD - valve, replaces S301366 bracket

1шт.

3

192900A1

VALVE

ASSEMBLY - accumulator charging, replaces 179066A1

1шт.

4

1978158C1

O-RING

O-RING - valve, valve

1шт.

Part of Seal Kit part number 1341919C1

1шт.

7

179065A1

CAP

GLAND - accumulator

1шт.

8

NSS

NOT SOLD SEPARAT

RING - seal, gland

1шт.

Part of Seal Kit part number 1341919C1

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, piston O-nng

2шт.

Part of Seal Kit part number 1341919C1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit part number 1341919C1

1шт.

11

S301364

PISTON

accumulator

1шт.

12

S301365

RING

wear, teflon, piston

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE - accumulator

1шт.

1341919C1

SEAL KIT

seal, accumulator, Includes: reference nos. 4,8,9, and 10

1шт.
