Запчасти Case 921B (8-074) - RIDE CONTROL HYDRAULIC CIRCUIT - DIRECTIONAL VALVES TO MASTER VALVE AND ACCUMULATORS (08) - HYDRAULICS

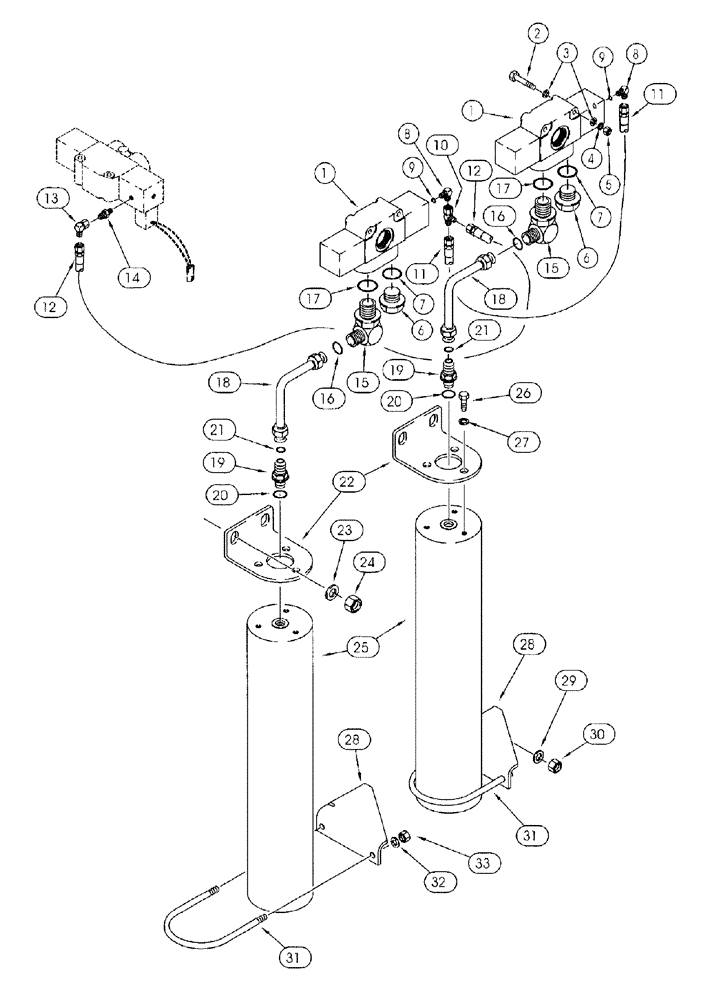

Схема запчастей Case 921B - (8-074) - RIDE CONTROL HYDRAULIC CIRCUIT - DIRECTIONAL VALVES TO MASTER VALVE AND ACCUMULATORS (08) - HYDRAULICS
9
31
28
6
25
6
12
3
19
15
18
29
21
17
20
16
9
5
16
4
14
32
8
15
23
30
20
26
28
7
11
31
12
2
18
11
22
27
1
10
7
19
17
33
21
24
1
13
8

Артикул

Название

Примечание

Количество

1

106488A1

VALVE

ASSEMBLY - directional control, parts list figure 8-80

2шт.

2

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

4шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

50-3561T1

FITTING

ELBOW - 90 degree, 9/16-18 flare x 7/16-20 inch O-ring boss, replaces 218-5105 elbow

2шт.

9

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

10

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

11

107821A1

HOSE ASSY.

600 mm (23-11/16 inch) long, directional valve to directional valve

1шт.

12

131423A1

HOSE ASSY.

914 mm (36 inch) long, rear directional valve to master valve

1шт.

13

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

14

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter, Straight

1шт.

15

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adj O-ring boss

2шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face seal end

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

18

131906A1

TUBE,19.04 mm OD, 159, 134 mm Length

TUBE - directional valve to accumulator

2шт.

19

201-141

HYD CONNECTOR,1 3/16"-12 ORFS x 3/4"-16 ORB

ADAPTER - straight, 1-3/16-12 face seal x 3/4-16 inch O-ring boss

2шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face seal end

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

22

130133A1

SUPPORT

BRACKET - mounting, accumulator, upper

2шт.

23

187563A1

SPACER

13 x 25 x 28 mm

4шт.

24

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

25

130354A1

ACCUMULATOR

ASSEMBLY - ride control, parts list figure 8-82

2шт.

26

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

6шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

28

130134A1

SUPPORT

BRACKET - mounting, accumulator, lower

2шт.

29

187563A1

SPACER

13 x 25 x 28 mm

4шт.

30

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

31

L128472

U-BOLT

special, accumulator mounting

2шт.

32

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

33

231-1446

NUT,3/8" - 16, Gr 5

4шт.

Выбрано товаров: 33
