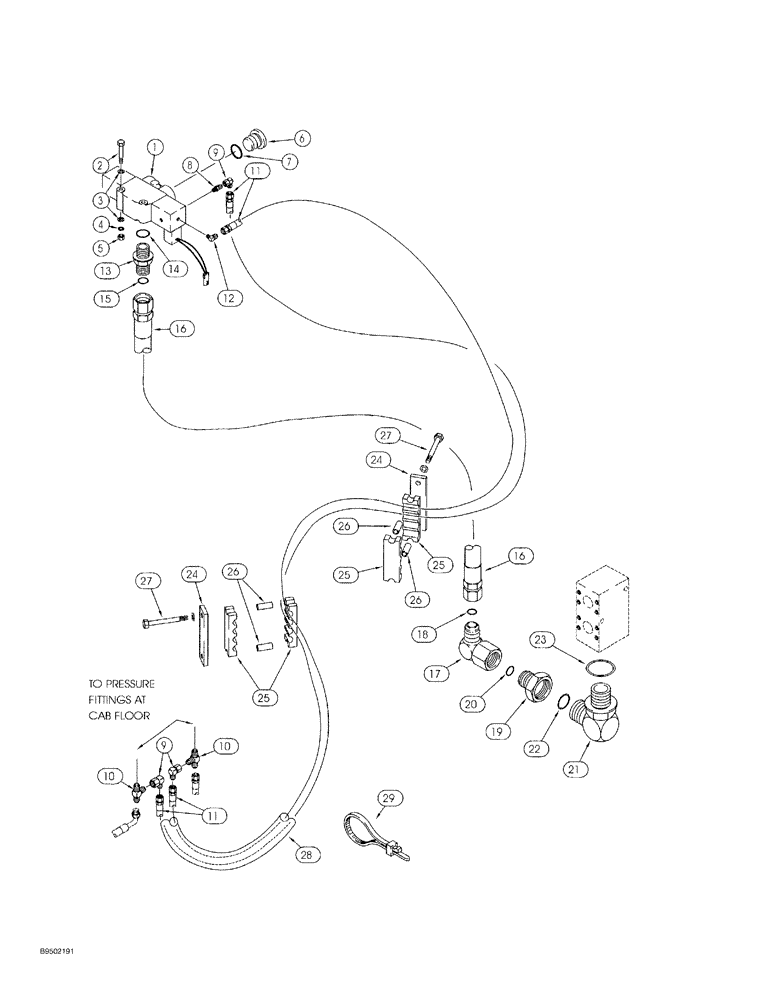

Запчасти Case 921B (8-072) - RIDE CONTROL HYDRAULIC CIRCUIT - MASTER VALVE TO CAB AND RETURN MANIFOLD (08) - HYDRAULICS

1

107866A1

VALVE

ASSEMBLY - master directional, with electrical connector, parts list figure 8-78

1шт.

2

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter, Straight

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3шт.

10

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

10шт.

11

L129590

HOSE ASSY.

2900 mm (114-3/16 inch) long, master, Serial Range: valve-cab

2шт.

12

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

90 degree, 9/16-18 flare x 1/8 inch PT

1шт.

13

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - straight

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

16

131422A1

HOSE ASSY.

457 mm (18 inch) long, master valve to return manifold, see figure 8-12, item 4

1шт.

17

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

ELBOW - 90 degree, 1-7/16-12 face seal x swivel face seal

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

201-118

REDUCER,1-7/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

reducing, 1-7/16-12 face seal x 1-11/16-12 inch female face

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

21

201-369

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-7/8" - 12 Male ORB

90 degree, 1-11/16-12 face seal x 1-7/8-12 inch adj O-ring boss

1шт.

22

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face seal end

1шт.

23

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

Boss end

1шт.

24

L124270

LARGE PLATE

PLATE, LARGE mounting, ride control hydraulic hoses

2шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller

1шт.

25

L124271

FIXING BRACKET

CLAMP - rubber

4шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller

1шт.

26

L126936

SPACER

34 mm long

4шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller

1шт.

27

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

4шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller

1шт.

28

S120426

TUBE

GUARD - hose protector

1шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

Used only with two or four spool valves. Hoses for three spool valves are mounted in clamps with standard hoses from the remote controller

1шт.
