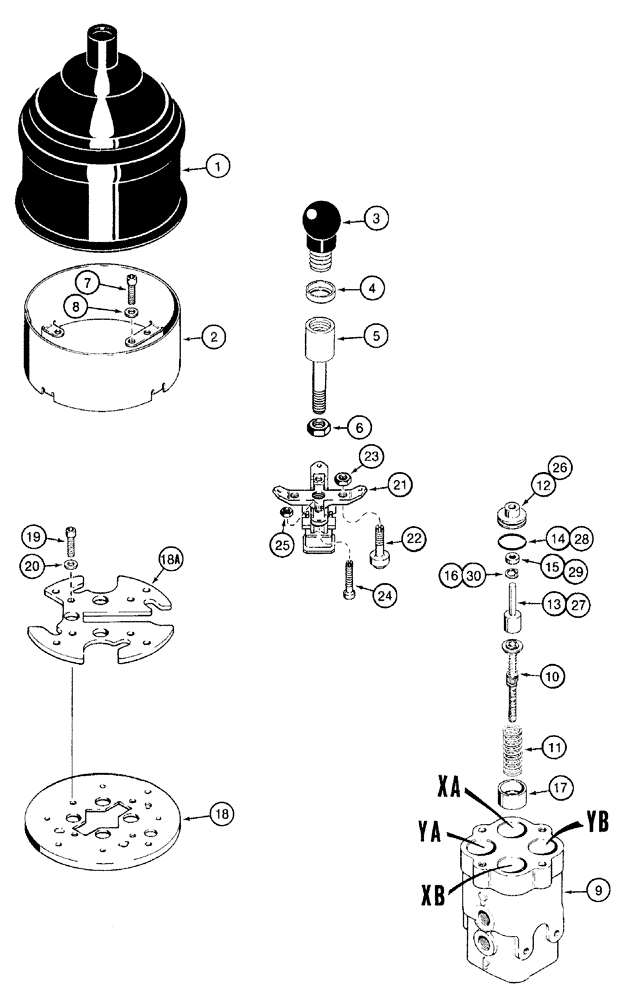

Запчасти Case 921B (8-071A) - AUXILIARY REMOTE CONTROL VALVE - 117919A1 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
117919A1
VALVE
ASSEMBLY - control, single lever remote
1шт.
1
120519A1
BOOT
dust
1шт.
2
120533A1
CLAMP
COLLAR - control valve
1шт.
3
120712A1
KNOB
control lever
1шт.
4
120560A1
WASHER
WASHER - boot
1шт.
5
120521A1
LEVER
control
1шт.
6
425-148
JAM NUT,Jam, 1/2"-13, G5
1шт.
7
361-31012
HEX SOC SCREW,#10 - 24 x 3/4"
BOLT - hex socket, No. 10 NC x 3/4 inch
2шт.
8
1978189C1
WASHER
flat, special, 17/64 x 1/2 x 1/32 inch
2шт.
120702A1
VALVE
ASSEMBLY - remote control
1шт.
9
NSS
NOT SOLD SEPARAT
HOUSING - control valve
1шт.
10
1971884C1
SPOOL
ASSEMBLY - remote control valve, valve ports XA, XB, YA, and YB
4шт.
11
1978191C1
SPRING
spool, valve ports XA, XB, YA, and YB
4шт.
109753A1
PLUNGER
ASSEMBLY - control valve, valve ports XA, XB, and YA
3шт.
12
1978195C1
GUIDE
valve, 1/2 inch long
1шт.
13
109765A1
PLUNGER
valve, 1 inch long stem
1шт.
14
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
1шт.
15
N14759
SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk
U-cup, plunger
1шт.
16
100-2150
SNAP RING,0.50", Int, #50
Plunger
1шт.
17
1978192C1
RACE
SLEEVE - spool
4шт.
18
1978196C1
LARGE PLATE
PLATE, LARGE plastic, lower
1шт.
18a
1978197C1
LARGE PLATE
PLATE, LARGE metal, upper
1шт.
19
361-31012
HEX SOC SCREW,#10 - 24 x 3/4"
BOLT - hex socket, No. 10 NC x 3/4 inch
2шт.
20
1978189C1
WASHER
flat, special, 17/64 x 1/2 x 1/32 inch
2шт.
120703A1
BRACKET
ASSEMBLY - control valve
1шт.
21
1978199C1
CAM
PIVOT - bracket
1шт.
22
1978203C1
SCREW
ACTUATOR - spool, large
2шт.
23
425-155
JAM NUT,Jam, 5/16"-24, G5
Hex
2шт.
24
1978204C1
SCREW
ACTUATOR - spool, small
2шт.
25
425-144
JAM NUT,Jam, 1/4"-20, G5
2шт.
1971896C1
PLUNGER
ASSEMBLY - control valve
1шт.
26
1978193C1
GUIDE
valve, 5/8 inch long
1шт.
27
109765A1
PLUNGER
valve, 1 inch long stem
1шт.
28
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
1шт.
29
N14759
SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk
U-cup, plunger
1шт.
30
100-2150
SNAP RING,0.50", Int, #50
Plunger
1шт.
Выбрано товаров: 36
