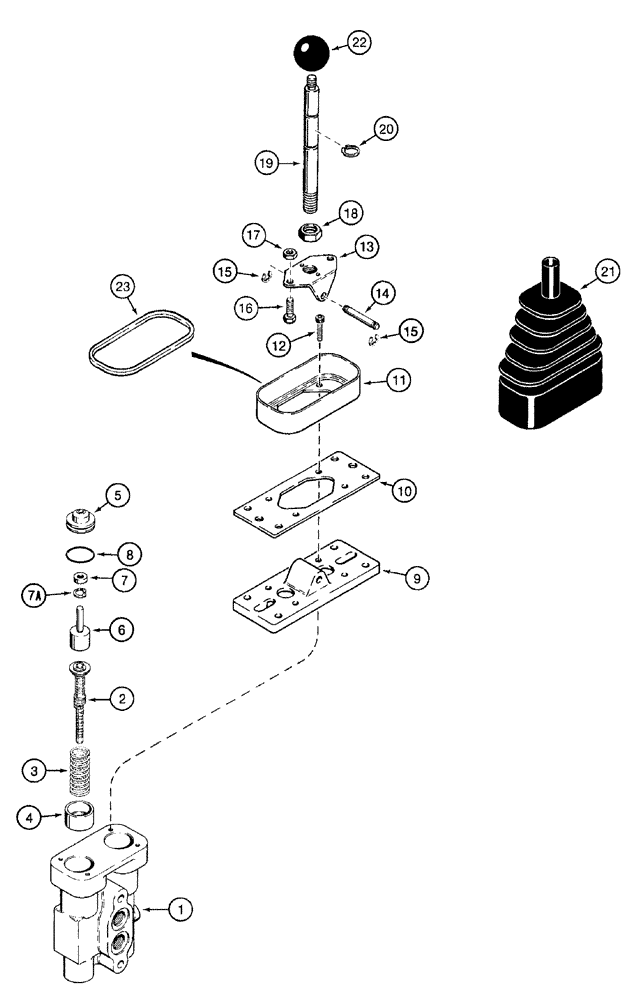

Запчасти Case 921B (8-070) - AUXILIARY REMOTE CONTROL VALVE - L123917 (08) - HYDRAULICS

L123917

VALVE

ASSEMBLY - remote, single lever

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, control, auxiliary

1шт.

1976800C1

SPOOL

ASSEMBLY - control valve

2шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

3

1978214C1

SPRING

spool

1шт.

4

1978192C1

RACE

SLEEVE - spool

1шт.

1976801C1

PLUNGER

ASSEMBLY - control valve

2шт.

5

1978195C1

GUIDE

valve, 1/2 inch long

1шт.

6

1978215C1

PLUNGER

control valve

1шт.

7

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

7a

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

8

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

RING - backup, 25/64 ID x 7/16 OD x 3/64 inch wide

1шт.

9

1978216C1

LARGE PLATE

PLATE, LARGE plastic, lower

1шт.

10

1978217C1

LARGE PLATE

PLATE, LARGE metal, upper

1шт.

11

1978218C1

LARGE PLATE

PLATE, LARGE COLLAR - control valve

1шт.

12

361-31012

HEX SOC SCREW,#10 - 24 x 3/4"

BOLT - hex socket, No. 10 NC x 3/4 inch

4шт.

13

1978219C1

CAM

PIVOT - control valve

1шт.

14

1978220C1

PIN

pivot

1шт.

15

100-3321

SNAP RING,#X21, .185" Dia, E-Type

Pivot

2шт.

16

1978222C1

SCREW

BOLT - special, spool actuator

2шт.

17

329-104

NUT,1/4"-20, G8

2шт.

18

329-108

NUT,1/2"-13, G8

1шт.

19

1978223C1

LEVER

control valve

1шт.

20

100-1450

SNAP RING,#50, Ext

Lever (Replaces 26593R1)

1шт.

21

1976802C1

DUST CAP

BOOT - rubber, control valve

1шт.

22

1978187C1

BALL KNOB

control lever

1шт.

23

1542554C1

GROMMET

TRIM - control valve collar, used as a grommet

1шт.
