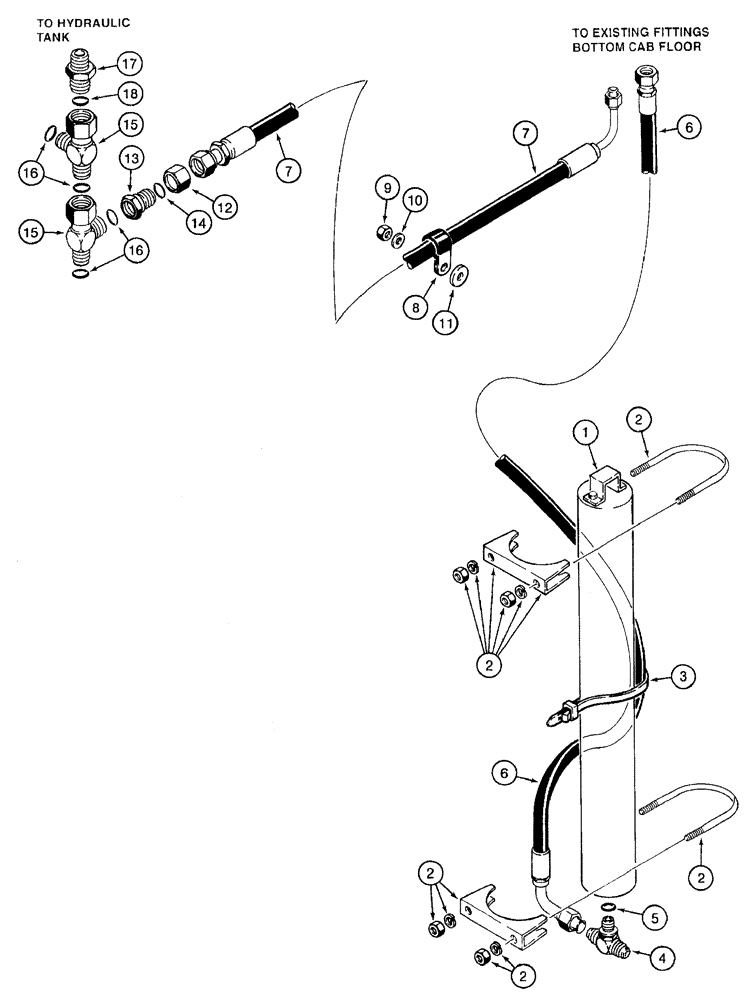

Запчасти Case 921B (8-060) - REMOTE LOADER CONTROL CIRCUIT - ACCUMULATOR TO REMOTE LOADER CONTROLS & RETURN TO HYD. RESERVOIR (08) - HYDRAULICS

1

L118361

ACCUMULATOR

ASSEMBLY - hydraulic, parts list figure 8-84

1шт.

2

A13240

CLAMP,2-5/8" ID

two piece, includes hardware

2шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, retaining

1шт.

4

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

TEE - 9/16-18 adj O-ring branch x flare x 3/4-16 inch flare

1шт.

6

101636A1

HOSE ASSY.

1358 mm (53-1/2 inch) long, Serial Range: accumulator-cab

1шт.

7

108444A1

HOSE ASSY.

1180 mm (47-1/4 inch) long, cab to hydraulic reservoir

1шт.

8

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type, Replaces T50104 clamp

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

1шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

11

187563A1

SPACER

13 x 25 x 28 mm

1шт.

12

203-903

TUBE NUT,1"-14 ORFS

hex, tube, 1-14 inch face seal

1шт.

13

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

ADAPTER - reducing, 13/16-16 face seal x 1-14 inch female face

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1-14 inch face seal branch x face seal x swivel face seal

2шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

17

L129304

FITTING

ADAPTER - straight, special

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
