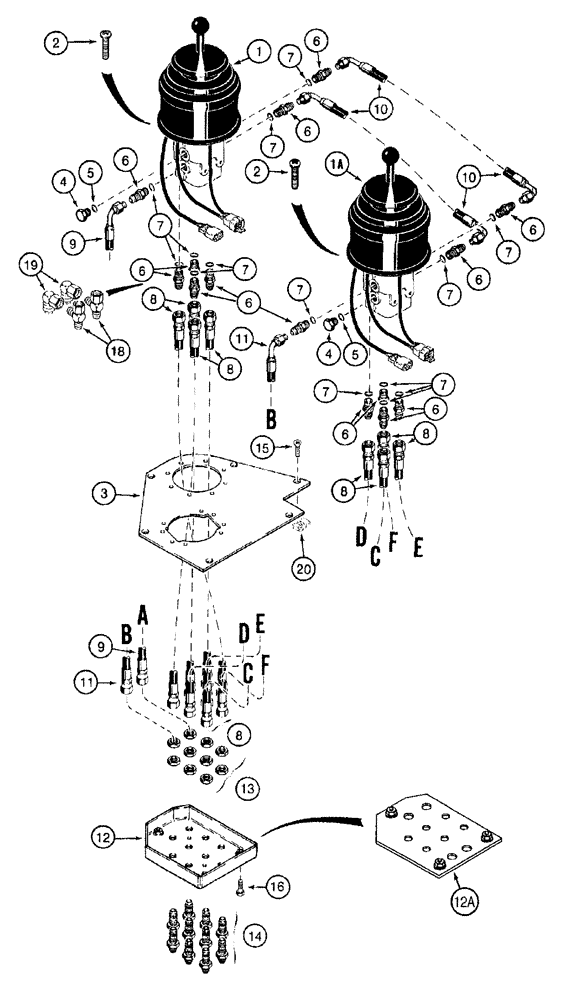

Запчасти Case 921B (8-054) - REMOTE LOADER CONTROL CIRCUIT - TWO LEVERS WITH FOUR SPOOL VALVE (08) - HYDRAULICS

1

109508A1

VALVE

ASSEMBLY - control, single lever remote, with feel, parts list figure 8-62

1шт.

1

109508A1R

REMAN-HYD VALVE

Reman ASSEMBLY - control, single lever remote, with feel, parts list figure 8-62

1шт.

1

109508A1C

CORE-VALVE HYD

Return Number

1шт.

1a

117919A1

VALVE

ASSEMBLY - control, single lever remote, auxiliary, parts list figure 8-71A

1шт.

2

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

8шт.

3

1339947C1

LARGE PLATE

PLATE, LARGE mounting, remote control

1шт.

4

76349

PLUG,9/16" - 18 ORB

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

14шт.

8

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

419 mm (16-1/2 inch) long, remote control to hose separator

8шт.

9

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

502 mm (19-7/8 inch) long, remote control to pressure regulating valve

1шт.

10

L126988

HOSE ASSY.

162 mm (6-3/8 inch) long, remote control crossover

2шт.

11

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

502 mm (19-7/8 inch) long, remote auxiliary control to hydraulic reservoir

1шт.

12

1339969C1

LARGE PLATE

PLATE, LARGE SEPARATOR - hose, loader control, if used

1шт.

12a

137716A2

LARGE PLATE

PLATE, LARGE SEPARATOR - hose, loader control, if used

1шт.

13

218-1254

LOCK NUT,Blkhd, 9/16"-18

10шт.

14

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

10шт.

15

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

machine, flat Phillips, 1/4 NC x 3/4 inch

6шт.

16

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

3шт.

17

1977322C3

DECAL

loader control, two single lever remote control valves with four spool valve, not shown, no longer available, order 256424A1 decal, item 17a

1шт.

17a

256424A1

DECAL

loader control, two single lever remote control valves with four spool valve, not shown

1шт.

18

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Models with ride control, see figure 4-18 for location information

2шт.

19

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

ELBOW - 90 degree, special, models with ride control, see figure 4-18

2шт.

20

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

U-type, 1/4 inch NC

6шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
