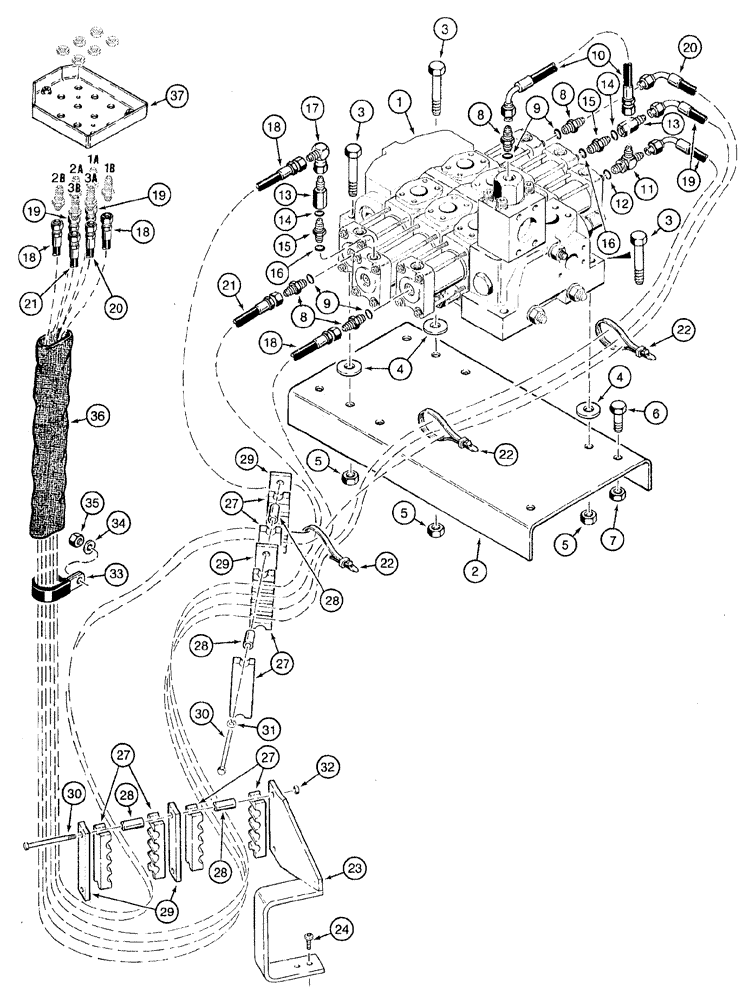

Запчасти Case 921B (8-052) - REMOTE LOADER CONTROL CIRCUIT - HOSE SEPARATOR TO THREE SPOOL VALVE (08) - HYDRAULICS

1

136967A1

VALVE

ASSEMBLY - control, three spool, loader, parts list figure 8-20

1шт.

2

L129610

SUPPORT

BRACKET - mounting, loader control valve

1шт.

3

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

BOLT - hex, 5/8 NC x 3-1/2 inch, grade 8

3шт.

4

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

3шт.

5

232-14110

LOCK NUT,5/8"-11, GC

3шт.

6

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

7

232-14110

LOCK NUT,5/8"-11, GC

4шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

10

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

502 mm (19-7/8 inch) long, inlet and outlet section to tee at port 1A

1шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

L110143

VALVE

check, loader lift, at ports 2A and 2B

2шт.

13

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

18

L129590

HOSE ASSY.

2900 mm (114-3/16 inch) long, hose separator to ports 1B and 2B

2шт.

19

L129587

HOSE ASSY.

3450 mm (135-7/8 inch) long, hose separator to ports 1A and 2A

2шт.

20

L129588

HOSE ASSY.

3600 mm (141-3/4 inch) long, hose separator to port 3A

1шт.

21

L129589

HOSE ASSY.

3000 mm (118-1/8 inch) long, hose separator to port 3B

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, retaining

3шт.

23

107426A1

SUPPORT

BRACKET - mounting, clamp

1шт.

24

61-45016

SCREW,1/2" - 13 x 1"

hex socket, 1/2 NC x 1 inch

2шт.

27

L124271

FIXING BRACKET

CLAMP - rubber, hose retaining

8шт.

28

L126936

SPACER

34 mm long, hose clamp

8шт.

29

L124270

LARGE PLATE

PLATE, LARGE mounting, hose clamp

4шт.

30

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

BOLT - hex, 3/8 NC x 4-1/2 inch, grade 8

4шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

231-1446

NUT,3/8" - 16, Gr 5

2шт.

33

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

P-type, Replaces R57077 clamp

1шт.

34

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

35

231-1446

NUT,3/8" - 16, Gr 5

1шт.

36

S120426

TUBE

GUARD - hose protector

1шт.

37

REF

INSTRUCTION

SEPARATOR - hose, loader control, see items 14 and 14A on figures 8-48 and 8-50 for correct separator

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
