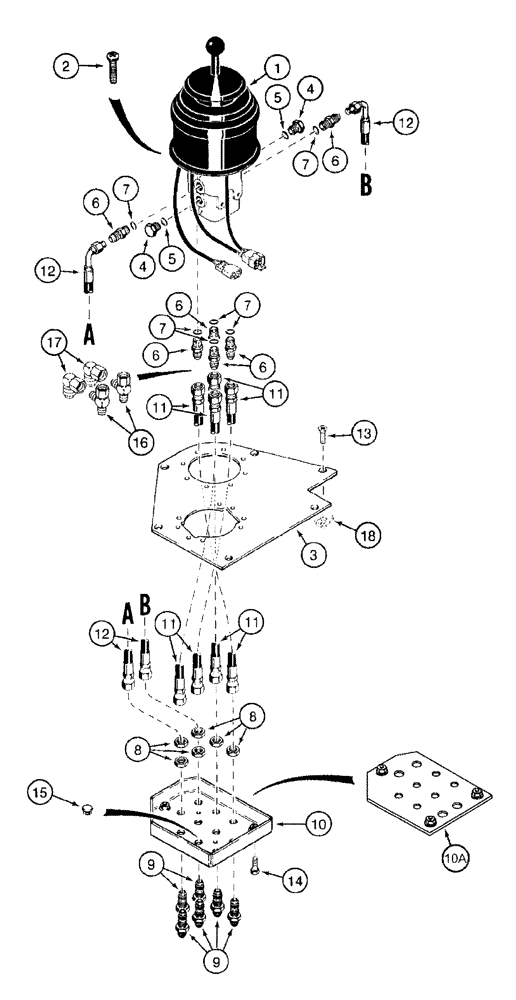

Запчасти Case 921B (8-042) - REMOTE LOADER CONTROL CIRCUIT - SINGLE LEVER WITH TWO SPOOL VALVE (08) - HYDRAULICS

1

109508A1

VALVE

ASSEMBLY - control, single lever remote, parts list figure 8-62

1шт.

1

109508A1R

REMAN-HYD VALVE

Reman ASSEMBLY - control, single lever remote, parts list figure 8-62

1шт.

1

109508A1C

CORE-VALVE HYD

Return Number

1шт.

2

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

4шт.

3

1339947C1

LARGE PLATE

PLATE, LARGE mounting, remote control

1шт.

4

76349

PLUG,9/16" - 18 ORB

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

6шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

6шт.

9

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

6шт.

10

1339969C1

LARGE PLATE

PLATE, LARGE SEPARATOR - hose, loader control, if used

1шт.

10a

137716A2

LARGE PLATE

PLATE, LARGE SEPARATOR - hose, loader control, if used

1шт.

11

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

419 mm (16-1/2 inch) long, remote control valve to hose separator

4шт.

12

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

502 mm (19-7/8 inch) long, remote control valve to hydraulic reservoir and pressure reducing valve

2шт.

13

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

machine, flat Phillips, 1/4 NC x 3/4 inch

6шт.

14

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

3шт.

15

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch

4шт.

16

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Models with ride control, see pg 4-19 for location information

2шт.

17

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

ELBOW - 90 degree, special, models with ride control, see figure 4-18 for switches and harness

2шт.

18

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

U-type, 1/4 inch NC

6шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
