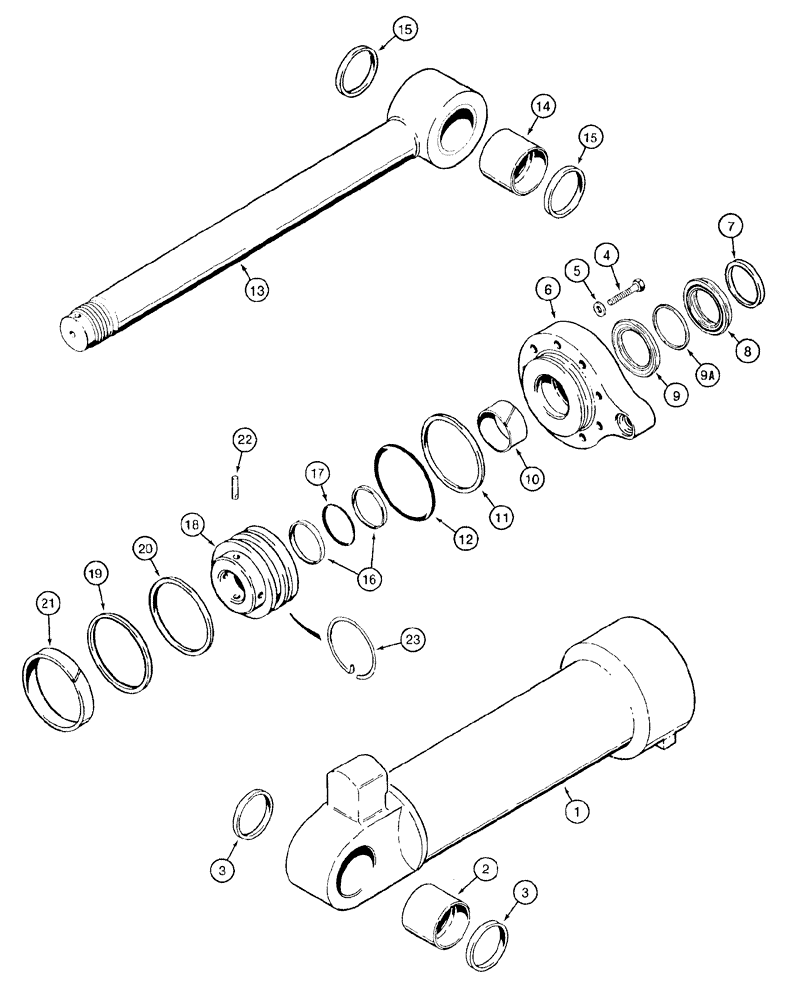

Запчасти Case 921B (8-040) - BUCKET CYLINDER (08) - HYDRAULICS

1346171C3

CYLINDER ASSY.

203 (8) ID x 745 mm (29-5/16 inch) stroke, bucket, see figure 9-4 for mounting

1шт.

1

1346172C1

HYD CYL SLEEVE

TUBE ASSEMBLY

1шт.

2

L127807

BUSHING

tube

1шт.

3

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

wiper

2шт.

4

26-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

BOLT - hex, 7/8 NC x 3-1/2 inch, grade 8

9шт.

5

396-31094

WASHER,15/16" x 1 3/4" x .219", HDN

flat, 15/16 x 1-3/4 x 7/32 inch, hardened

9шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder

1шт.

6

1346186C2

CYLINDER END CAP

GLAND

1шт.

7

S108245

WIPER SEAL

piston rod

1шт.

Part of Seal Kit part number 1346357C2

1шт.

1542883C1

SEAL KIT

seal, NSS, order 1346357C2 seal kit

1шт.

Part of Seal Kit part number 1346357C2

1шт.

8

1543013C1

SEAL - rod, NSS, order 1346357C2 seal kit

1шт.

9

1543014C1

SEAL - buffer, NSS, order 1346357C2 seal kit

1шт.

9a

1543356C1

RING - backup, NSS, order 1346357C2 seal kit

1шт.

10

1346213C1

BUSHING

, Serial Range: gland-rod

1шт.

Part of Seal Kit part number 1346357C2

1шт.

11

1346211C1

BACK-UP RING,192.35mm ID x 1.9mm Width

backup, gland O-ring

1шт.

Part of Seal Kit part number 1346357C2

1шт.

12

238-6367

O-RING,0.21" Thk x 7.475" ID, -367, Cl 6, 90 Duro

1шт.

Part of Seal Kit part number 1346357C2

1шт.

13

1346173C2

PISTON ROD

101 mm (4 inch) diameter

1шт.

14

L127807

BUSHING

rod eye

1шт.

15

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

wiper, rod eye

2шт.

16

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Seal, Serial Range: Piston-rod

2шт.

Part of Seal Kit part number 1346357C2

1шт.

17

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Piston to rod

1шт.

Part of Seal Kit part number 1346357C2

1шт.

18

1346182C1

PISTON

rod

1шт.

19

1346359C1

SEALING RING

, Serial Range: piston-tube

1шт.

Part of Seal Kit part number 1346357C2

1шт.

20

1346340C1

SEALING RING

RING - backup, piston

1шт.

Part of Seal Kit part number 1346357C2

1шт.

21

1346212C1

RING

BUSHING -, Serial Range: piston-tube

1шт.

Part of Seal Kit part number 1346357C2

1шт.

22

G106602

LOCK PIN

locking, Serial Range: piston-rod

1шт.

23

1346328C1

CIRCLIP

RING - retaining, locking pin

1шт.

1346357C2

SEAL KIT

seal, Includes: reference nos. 7,10,11,12,16,17,19,20,21, and 1542883C1

1шт.
