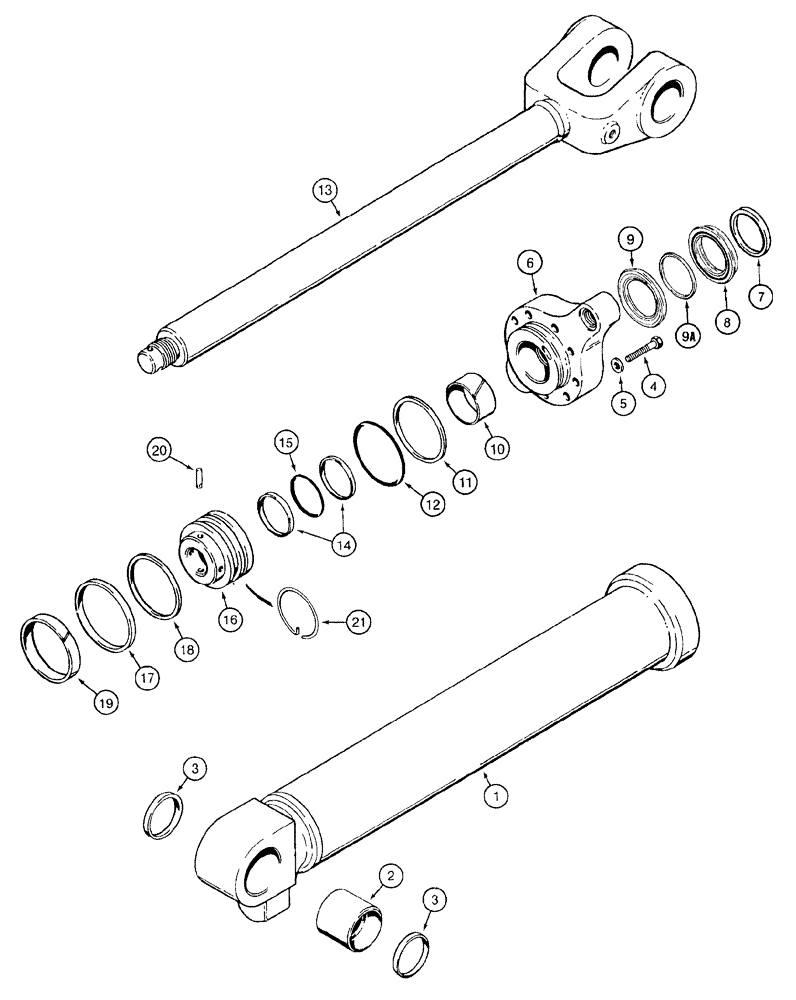

Запчасти Case 921B (8-038) - LIFT CYLINDERS (08) - HYDRAULICS

1986603C1

CYLINDER ASSY.

178 (7) ID x 867 mm (34-1/8 inch) stroke, lift, see figure 9-4 for mounting

1шт.

1

1542892C1

HYD CYL SLEEVE,177.8 mm ID

TUBE ASSEMBLY

1шт.

2

L127972

BUSHING

tube

1шт.

3

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

tube eye

2шт.

4

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

9шт.

5

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special, hardened

9шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder

1шт.

6

1986604C1

CYLINDER END CAP

GLAND - cylinder

1шт.

7

S108245

WIPER SEAL

piston rod

1шт.

Part of Seal Kit part number 1986920C2

1шт.

1542883C1

SEAL KIT

seal, NSS, order 1986920C2 seal kit

1шт.

Part of Seal Kit part number 1986920C2

1шт.

8

1543013C1

SEAL - rod, NSS, order 1986920C2 seal kit

1шт.

9

1543014C1

SEAL - buffer, NSS, order 1986920C2 seal kit

1шт.

9a

1543356C1

RING - backup, NSS, order 1986920C2 seal kit

1шт.

10

1346213C1

BUSHING

, Serial Range: gland-rod

1шт.

Part of Seal Kit part number 1986920C2

1шт.

11

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit part number 1986920C2

1шт.

12

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

Part of Seal Kit part number 1986920C2

1шт.

13

1986623C1

PISTON ROD

101 mm (4 inch) diameter

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Seal, Serial Range: Piston-rod

2шт.

Part of Seal Kit part number 1986920C2

1шт.

15

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Piston to rod

1шт.

Part of Seal Kit part number 1986920C2

1шт.

16

1986627C1

PISTON

rod

1шт.

17

S110157

SEAL,172.11mm ID x 179.58mm OD x 9.32mm Thk

, Serial Range: piston-tube

1шт.

Part of Seal Kit part number 1986920C2

1шт.

18

S110156

SEALING RING,6.86mm Thk x 157.86mm ID

RING - backup, piston seal

1шт.

Part of Seal Kit part number 1986920C2

1шт.

19

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

RING - wear, Serial Range: piston-tube

1шт.

Part of Seal Kit part number 1986920C2

1шт.

20

G106602

LOCK PIN

locking, Serial Range: piston-rod

1шт.

21

1346328C1

CIRCLIP

RING - retaining, locking pin

1шт.

1986920C2

SEAL KIT

seal, Includes: reference nos. 7,10,11,12,14,15,17,18,19 and 1542883C1

1шт.
