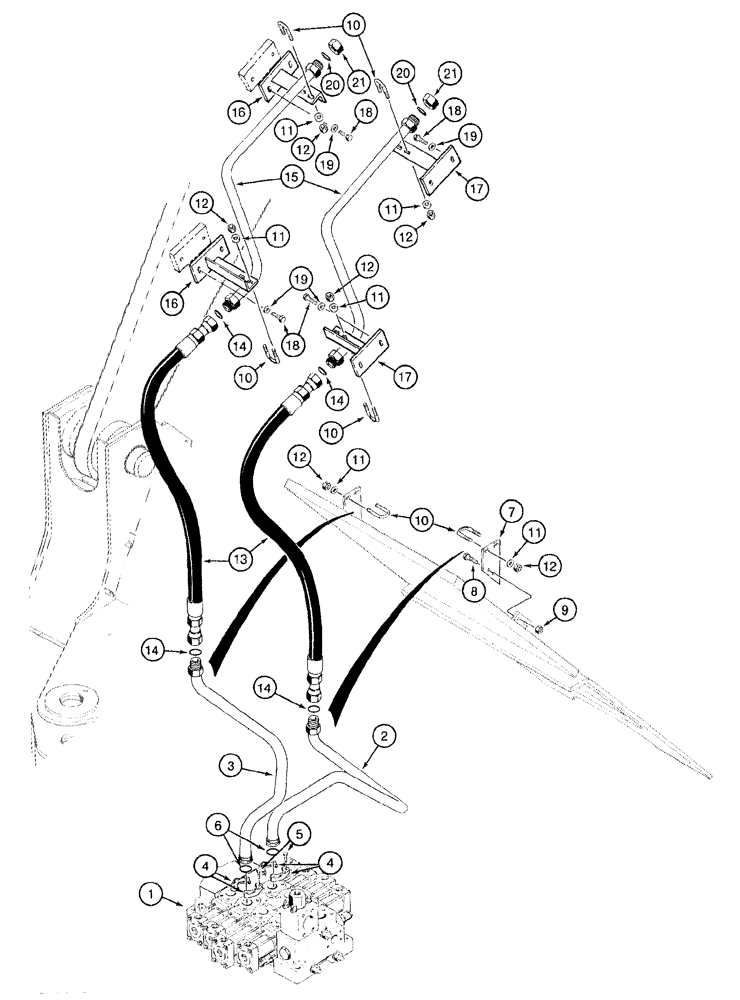

Запчасти Case 921B (8-036) - HYDRAULIC CIRCUIT - LOADER AUXILIARY (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, loader, three spool or four spool, parts list figure 8-20 or 8-22, if used

1шт.

2

L129808

TUBE,31.75 mm OD

loader control valve to right-hand hose

1шт.

3

L129810

TUBE,31.75 mm OD

loader control valve to left-hand hose

1шт.

4

A12301

CLAMP,Half

CLAMP - split flange

4шт.

5

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

BOLT - hex, 7/16 NC x 1-1/4 inch, grade 8

8шт.

6

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

7

L129834

SUPPORT

BRACKET - mounting, tube

2шт.

8

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

L129257

U-BOLT

tube retaining

6шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

12

231-1446

NUT,3/8" - 16, Gr 5

12шт.

13

L129253

HOSE ASSY.

1350 mm (53-5/32 inch) long, tube at loader valve to tube on loader arm

2шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

15

L129843

TUBE,31.75 mm OD x 770, 441 mm L

right-hand and left-hand

2шт.

16

L129260

SUPPORT

BRACKET - mounting, tube, left-hand

2шт.

17

L129263

SUPPORT

BRACKET - mounting, tube, right-hand

2шт.

18

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

21

201-901

CAP,1 7/16"-12 ORFS

CAP - hex, 1-7/16-12 inch face seal

2шт.
