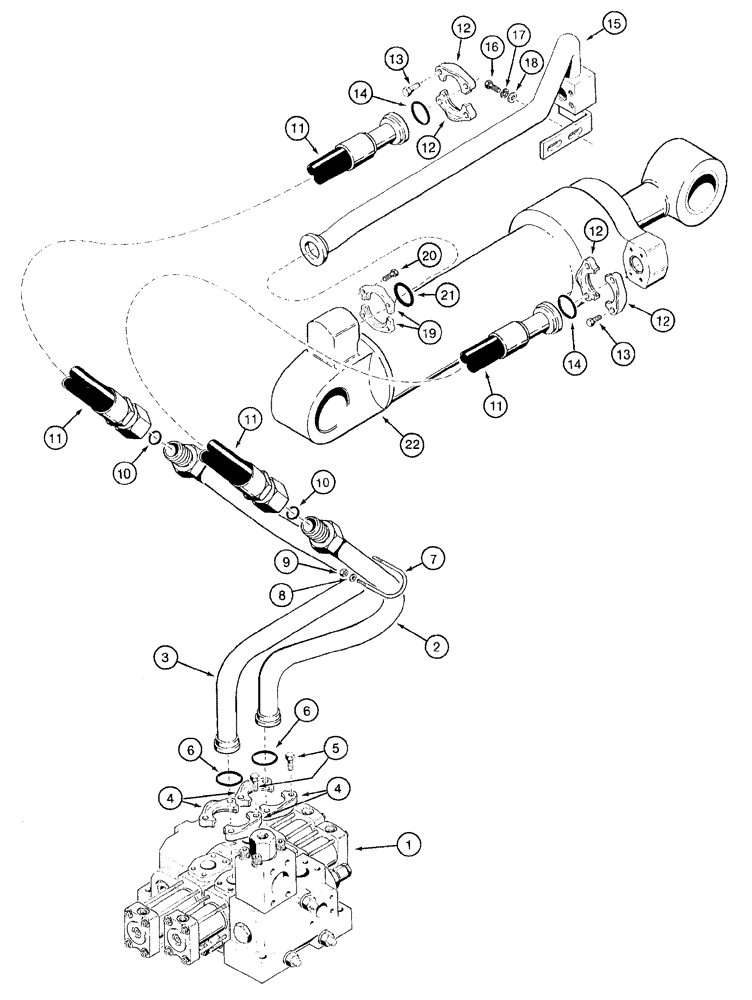

Запчасти Case 921B (8-034) - HYDRAULIC CIRCUIT - LOADER BUCKET (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, loader, see figures 8-18 through 8-22 for correct valve assembly and components

1шт.

2

L129721

TUBE,38.09 mm OD

right-hand

1шт.

3

L129719

TUBE,38.09 mm OD

left-hand

1шт.

4

A12301

CLAMP,Half

CLAMP - split flange

4шт.

5

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

BOLT - hex, 7/16 NC x 1-1/4 inch, grade 8

8шт.

6

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

7

L129258

U-BOLT

BOLT "U" tube retaining

2шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

11

L129716

HOSE ASSY.

1650 mm (64-5/16 inch) long, tube to bucket cylinder

2шт.

12

A12301

CLAMP,Half

CLAMP - split flange

4шт.

13

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

BOLT - hex, 7/16 NC x 1-1/4 inch, grade 8

8шт.

14

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

15

L128519

TUBE,38.09 mm OD

bucket cylinder

1шт.

16

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

18

187563A1

SPACER

13 x 25 x 28 mm

2шт.

19

A14157

FLANGE

CLAMP - split flange

2шт.

20

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

21

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

22

1346171C3

CYLINDER ASSY.

203 (8) ID x 745 mm (29-5/16 inch) stroke, bucket, parts list figure 8-40

1шт.
