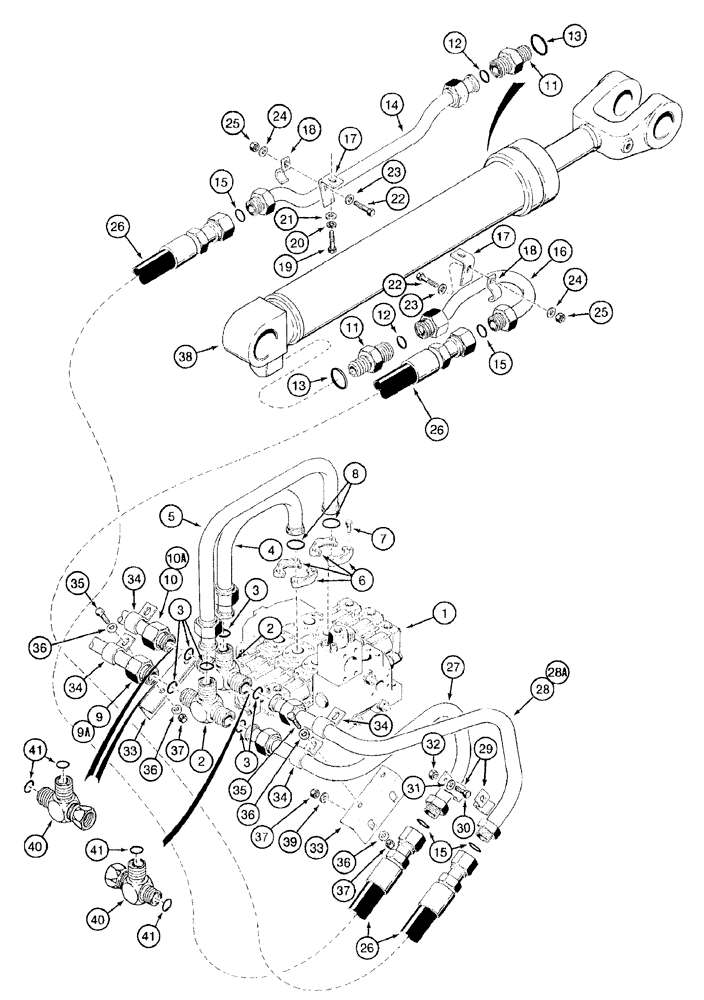

Запчасти Case 921B (8-032) - HYDRAULIC CIRCUIT - LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, loader, see Figures 8-18 through 8-22 for correct valve assembly and components

1шт.

2

201-431

TEE,2"-12 ORFS

2-12 inch face seal branch x face seal x face seal

2шт.

3

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

3шт.

4

L129509

TUBE,38.09 mm OD x 293, 275 mm L

at valve, cylinder closed end circuit

1шт.

5

L129503

TUBE,38.09 mm OD x 485, 412 mm L

at valve, cylinder rod end circuit

1шт.

6

A12301

CLAMP,Half

CLAMP - split flange

4шт.

7

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

BOLT - hex, 7/16 NC x 1-1/4 inch, grade 8

8шт.

8

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

9

L129507

TUBE,38.09 mm OD

at tee, left-hand cylinder rod end circuit, models without ride control

1шт.

9a

131898A1

TUBE

TUBE - at tee, left-hand cylinder rod end circuit, models with ride control

1шт.

10

L129513

TUBE,38.09 mm OD

at tee, left-hand cylinder closed end circuit, models without ride control

1шт.

10a

131900A1

TUBE

TUBE - at tee, left-hand cylinder closed end circuit, models with ride control

1шт.

11

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER - straight, 1-11/16-12 face seal x 1-5/8-12 inch O-ring boss

4шт.

12

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face end

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss end

1шт.

14

L127938

TUBE,31.75 mm OD

TUBE - rod end

2шт.

15

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

8шт.

16

L127936

PIPE ASSY.,31.75 mm OD

TUBE - closed end

2шт.

17

L128507

SUPPORT

BRACKET - mounting, tube

4шт.

18

S120173

CLAMP

tube

4шт.

19

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

22

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

23

187563A1

SPACER

13 x 25 x 28 mm

4шт.

24

187563A1

SPACER

13 x 25 x 28 mm

4шт.

25

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

26

L128448

HOSE ASSY.,25.4mm ID x 1425mm L, SAE 100R12

1425 mm (56 inch) long, lift cylinder, Serial Range: tube-tube

4шт.

27

L129505

TUBE,38.09 mm OD

at tee, right-hand cylinder rod end circuit

1шт.

28

L129511

TUBE,38.09 mm OD

at tee, right-hand cylinder closed end circuit, models without ride control

1шт.

28a

131902A1

TUBE

TUBE - at tee, right-hand cylinder closed end circuit, models with ride control

1шт.

29

S87573

CLAMP

tube

4шт.

30

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

31

187563A1

SPACER

13 x 25 x 28 mm

4шт.

32

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

33

L127925

SUPPORT

BRACKET - mounting, tube

2шт.

34

S87573

CLAMP

tube

4шт.

35

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

36

187563A1

SPACER

13 x 25 x 28 mm

8шт.

37

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

8шт.

38

1986603C1

CYLINDER ASSY.

178 (7) ID x 867 mm (34-1/8 inch) stroke, lift, parts list figure 8-38

2шт.

39

S95569

WASHER

flat, special, 1/2 inch

4шт.

40

201-437

TEE,2"-12 ORFS x 2"-12 Sw Run

2-12 inch face branch x face x swivel face

1шт.

41

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2шт.
