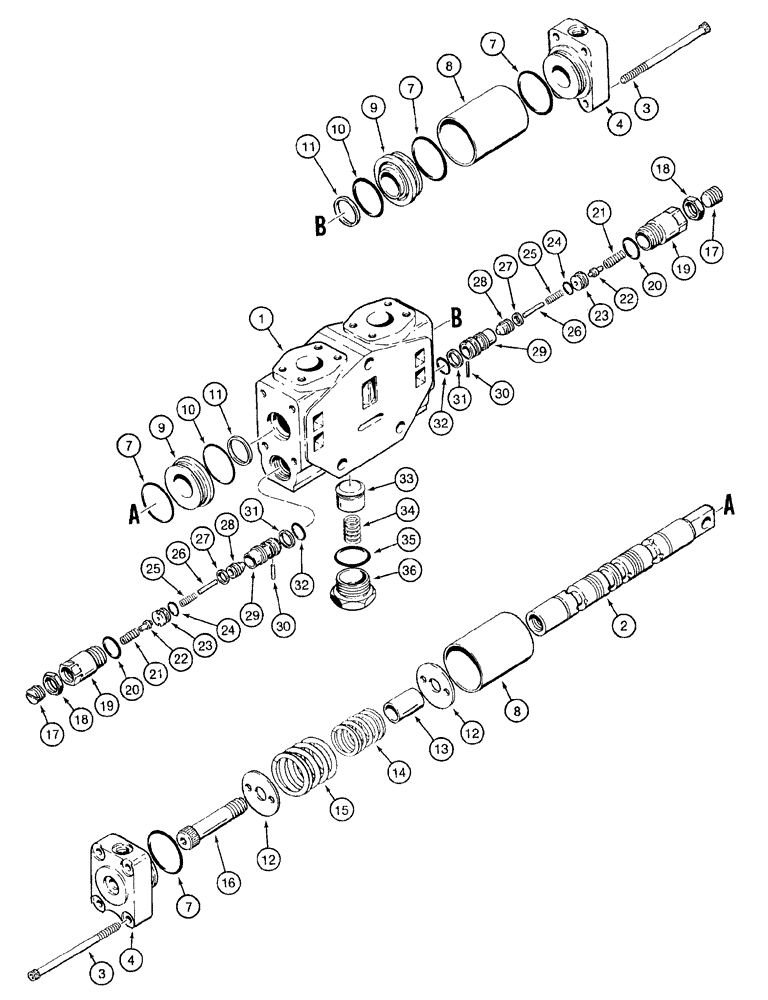

Запчасти Case 921B (8-030) - LOADER AUXILIARY SECTION (08) - HYDRAULICS

132445A1

ELEMENT

SECTION ASSEMBLY - auxiliary

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - auxiliary section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - auxiliary section

1шт.

3

S302052

SCREW

hex socket, special, 5/16 NC x 5-1/2 inch grade 8

8шт.

4

132457A1

CAP

end

2шт.

7

238-6227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 6, 90 Duro

4шт.

8

S302067

TUBE,2.31" ID x 2.62 - 2.625" OD x 3.504" L

SLEEVE - spring

2шт.

9

S302069

TUBE

RETAINER - seal

2шт.

10

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

2шт.

11

L33217

RING

backup

2шт.

12

S302079

WASHER

SEAT - spring

2шт.

13

S302068

TUBE,0.81" ID x 1" OD x 1.766" L

SPACER - spring

1шт.

14

132455A1

SPRING

inner, spool positioner

1шт.

15

S302078

SPRING

spool positioner

1шт.

16

S302051

BOLT

BOLT - hex socket head, special, spool positioner

1шт.

D149040

VALVE

ASSEMBLY - circuit relief/anti-cavitation

2шт.

17

NSS

NOT SOLD SEPARAT

SCREW - adjusting, special

1шт.

18

NSS

NOT SOLD SEPARAT

NUT - hex, special

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - seat

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

26

NSS

NOT SOLD SEPARAT

PLUNGER - pilot

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - filter

1шт.

28

NSS

NOT SOLD SEPARAT

FILTER - valve

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - pilot plunger

1шт.

30

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

31

S302062

BACK-UP RING

valve

1шт.

32

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

33

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

35

237-5020

O-RING,0.864" ID x 1.004" OD x 0.07"

1шт.

36

S302050

PLUG

load check

1шт.
