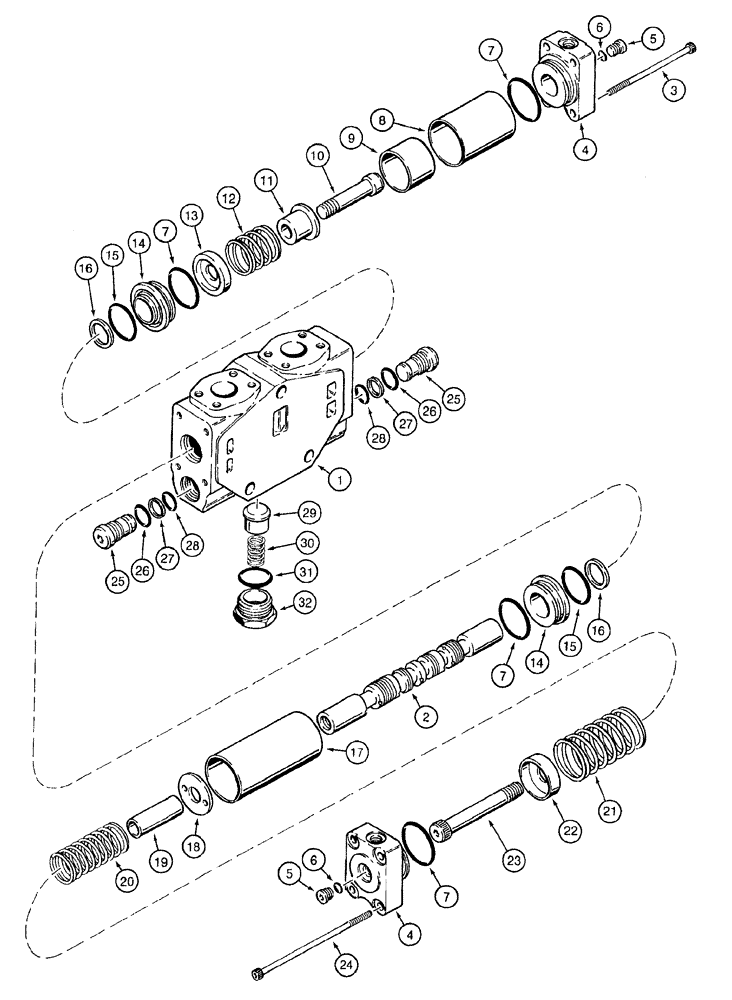

Запчасти Case 921B (8-028) - LOADER LIFT SECTION (08) - HYDRAULICS

136970A1

CONTROL VALVE

SECTION ASSEMBLY - lift

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - loader lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - loader lift section

1шт.

3

S302052

SCREW

hex socket, special, 5/16 NC x 5-1/2 inch grade 8

4шт.

4

S302045

CAP

end

2шт.

5

76349

PLUG,9/16" - 18 ORB

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

4шт.

8

S302067

TUBE,2.31" ID x 2.62 - 2.625" OD x 3.504" L

SLEEVE - spring, short

1шт.

9

S302072

TUBE,2.03" ID x 2.6" OD x 1.66" L

SPACER - sleeve, inner

1шт.

10

S302053

BOLT

BOLT - hex socket head, special, short, spool positioner

1шт.

11

S302061

GUIDE

SEAT - spring

1шт.

12

S302074

SPRING

spool positioner

1шт.

13

S302080

WASHER

SPACER - spring

1шт.

14

S302069

TUBE

RETAINER - seal

2шт.

15

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

2шт.

16

L33217

RING

backup

2шт.

17

S302070

TUBE,2.31" ID x 2.62 - 2.625" OD x 5.472" L

SLEEVE - spring, long

1шт.

18

S302079

WASHER

SEAT - spring

1шт.

19

S302071

TUBE,0.81" ID x 1" OD x 2.89" L

SPACER - inner

1шт.

20

S302076

SPRING

spool positioner

1шт.

21

S302075

SPRING

spool positioner

1шт.

22

S302060

GUIDE

SPACER - outer

1шт.

23

S302055

STEP BOLT

BOLT - hex socket head, special, long, spool positioner

1шт.

24

S302054

SCREW

hex socket, special, 5/16 NC x 7-1/2 inch grade 8

4шт.

S302063

PLUG

ASSEMBLY - no relief

2шт.

25

NSS

NOT SOLD SEPARAT

PLUG - lift section

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

S302062

BACK-UP RING

small O-ring

1шт.

28

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

29

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

31

237-5020

O-RING,0.864" ID x 1.004" OD x 0.07"

1шт.

32

S302050

PLUG

load check

1шт.
