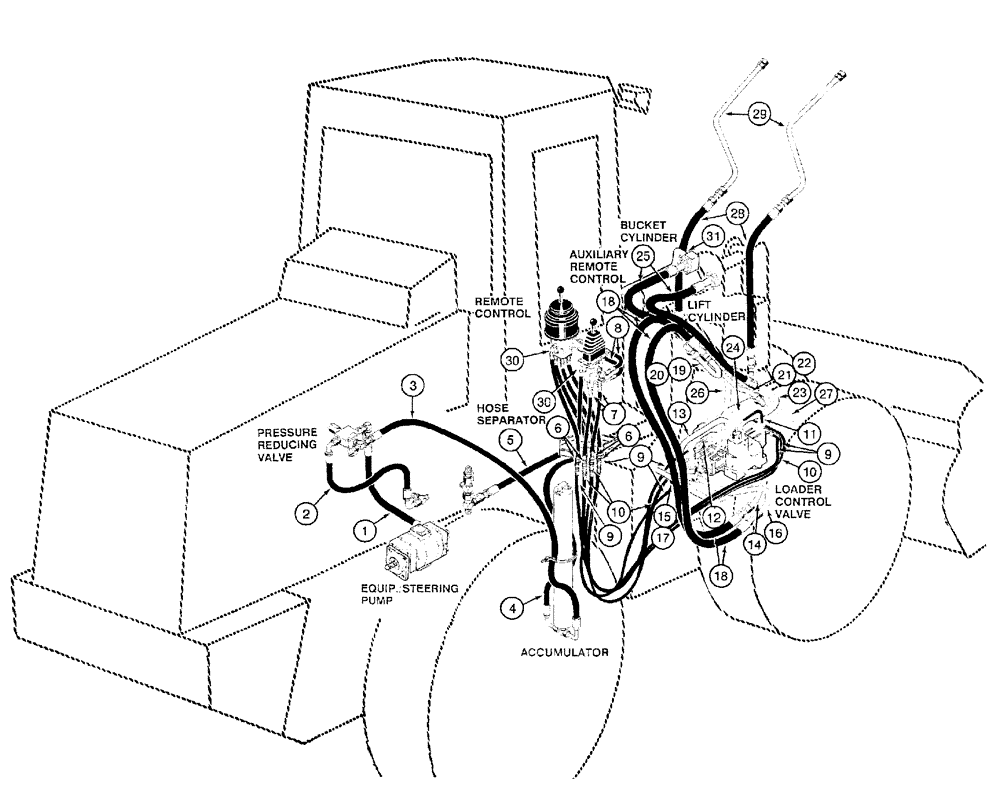

Запчасти Case 921B (1-020) - PICTORIAL INDEX - THREE SPOOL CONTROL VALVE HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose, hydraulic equipment pump to pressure reducing valve, page 8-59

1шт.

2

Hose, pressure reducing valve to cooler bypass valve, page 8-59

1шт.

3

Hose, pressure reducing valve to accumulator, page 8-59

1шт.

4

Hose, accumulator to cab, page 8-61

1шт.

5

Hose, cab to hydraulic reservoir, page 8-61

1шт.

6

Hose, remote control to hose separator ports 1A, 1B, 2A, and 2B, page 8-49, 8-51

1шт.

7

Hose, auxiliary remote control to hose separator ports 3A and 3B, page 8-49, 8-51

1шт.

8

Hose, auxiliary remote control to remote control, page 8-49, 8-51

1шт.

9

Hose, hose separator to ports 1A, 1B, 2A, and 2B, page 8-53

1шт.

10

Hose, hose separator to ports 3A and 3B, page 8-53

1шт.

11

Hose, inlet and outlet section to tee at port 1A, page 8-53

1шт.

12

Supply tube, valve to lift cylinder, closed end circuit, page 8-33

1шт.

13

Supply tube, valve to lift cylinder, rod end circuit, page 8-33

1шт.

14

Lift tube, right-hand rod end, page 8-33

1шт.

15

Lift tube, left-hand rod end, page 8-33

1шт.

16

Lift tube, right-hand closed end, page 8-33

1шт.

17

Lift tube, left-hand closed end, page 8-33

1шт.

18

Hose, at cylinders, page 8-33

1шт.

19

Tube, right-hand, cylinder closed end, page 8-33

1шт.

20

Tube, left-hand, cylinder closed end, page 8-33

1шт.

21

Tube, right-hand, cylinder rod end, page 8-33

1шт.

22

Tube, left-hand, cylinder rod end, page 8-33

1шт.

23

Supply tube, right-hand, page 8-35

1шт.

24

Supply tube, left-hand, page 8-35

1шт.

25

Hose, tube to bucket cylinder, page 8-35

1шт.

26

Tube, left-hand, auxiliary section to hose, page 8-37

1шт.

27

Tube, right-hand, auxiliary section to hose, page 8-37

1шт.

28

Hose, tube at loader valve to tube on lift arm, page 8-37

1шт.

29

Tube, right-hand and left-hand, at loader arm, page 8-37

1шт.

30

Hose, remote controls to hose separator, hydraulic reservoir and pressure reducing valve ports, page 8-49, 8-51

1шт.

25

Tube, bucket cylinder, closed end, page 8-35

1шт.
