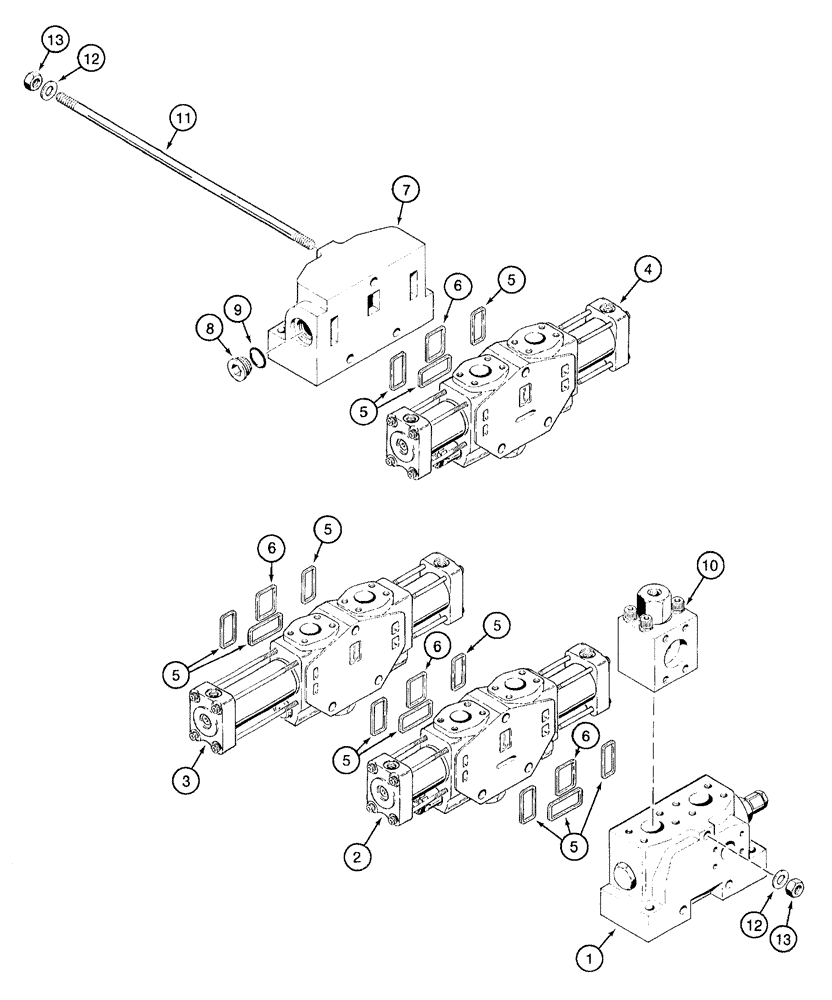

Запчасти Case 921B (8-020) - LOADER CONTROL VALVE - THREE SPOOL (08) - HYDRAULICS

136967A1

VALVE

ASSEMBLY - control, three spool, see figure 8-52 for mounting

1шт.

1

139654A1

ELEMENT

SECTION ASSEMBLY - inlet and outlet, parts list figure 8-24

1шт.

2

136969A1

ELEMENT

SECTION ASSEMBLY - bucket, parts list figure 8-26

1шт.

3

136970A1

CONTROL VALVE

SECTION ASSEMBLY - lift, parts list figure 8-28

1шт.

4

132445A1

ELEMENT

SECTION ASSEMBLY - auxiliary, parts list figure 8-30

1шт.

5

S302117

SEAL

RING - quad, included with each of the above sections

3шт.

6

S302085

SEAL

RING - quad, included with each of the above sections

1шт.

S302049

OUTLET

COVER ASSEMBLY - end

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - end cover

1шт.

8

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

S302048

VALVE

ASSEMBLY - low pressure regeneration, includes block, parts list figure 8-24

1шт.

11

S302058

STUD

special, control valve

3шт.

12

19-488

WASHER

flat

6шт.

13

429-1010

NUT,5/8"-11, G8

6шт.
