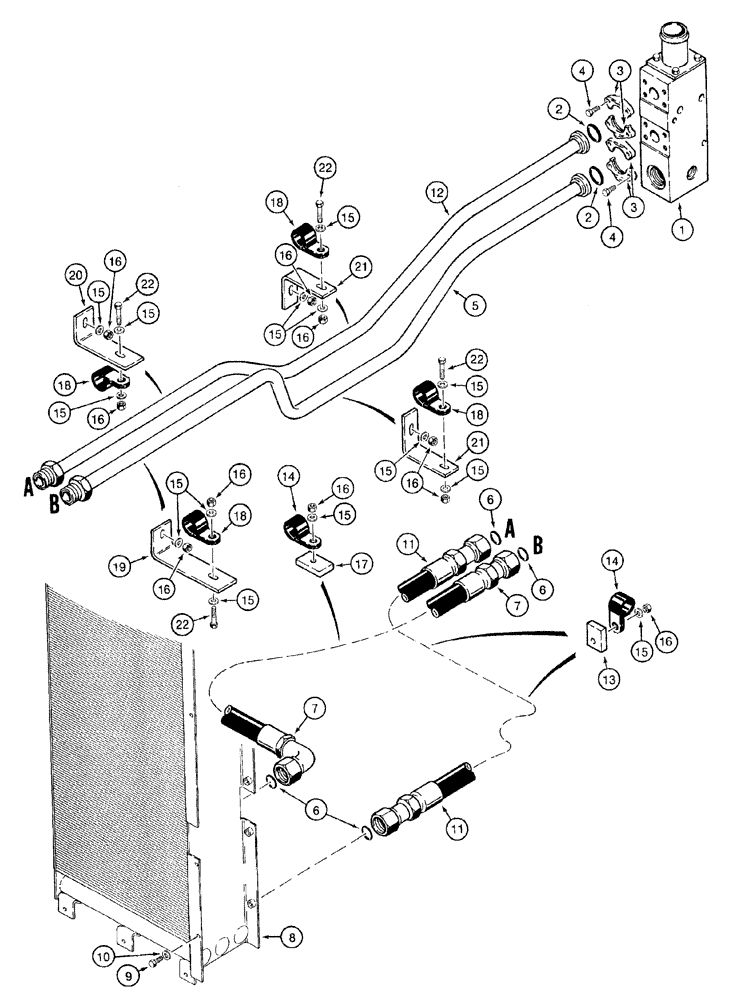

(8-014) - HYDRAULIC CIRCUIT - COOLER BYPASS VALVE TO HYDRAULIC OIL COOLER

Запчасти Case 921B (8-014) - HYDRAULIC CIRCUIT - COOLER BYPASS VALVE TO HYDRAULIC OIL COOLER (08) - HYDRAULICS

Схема запчастей Case 921B - (8-014) - HYDRAULIC CIRCUIT - COOLER BYPASS VALVE TO HYDRAULIC OIL COOLER (08) - HYDRAULICS
15
14
21
6
22
18
16
19
15
18
13
17
10
12
22
1
16
2
15
2
4
16
15
6
15
21
11
7
18
16
15
15
16
15
7
16
16
11
15
15
16
8
15
18
5
20
15
22
3
9
4
6
16
3
22
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L127968

VALVE BODY

ASSEMBLY - cooler bypass, parts list figure 8-4, see figure 8-16 for mounting

1шт.

2

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

3

A12306

FLANGE

CLAMP - split flange

4шт.

4

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

5

L129166

TUBE,25.4 mm OD

hydraulic oil cooler supply

1шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

7

L129091

HOSE ASSY.

1270 mm (50 inch) long, hydraulic oil cooler supply

1шт.

8

L129695

OIL COOLER

transmission and hydraulic oil

1шт.

9

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

9шт.

10

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

9шт.

11

L129094

HOSE ASSY.

1867 mm (73-1/2 inch) long, hydraulic oil cooler return

1шт.

12

L129168

TUBE,25.4 mm OD

hydraulic oil cooler return

1шт.

13

L128763

SPACER

hose clamp

1шт.

14

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type

1шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

16

231-1446

NUT,3/8" - 16, Gr 5

1шт.

17

L128859

SPACER

clamp

1шт.

18

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type

4шт.

19

L129274

SUPPORT

BRACKET - mounting, supply tube

1шт.

20

L129275

SUPPORT

BRACKET - mounting, return tube

1шт.

21

L129205

SUPPORT

BRACKET - mounting, supply and return tubes

2шт.

22

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.
