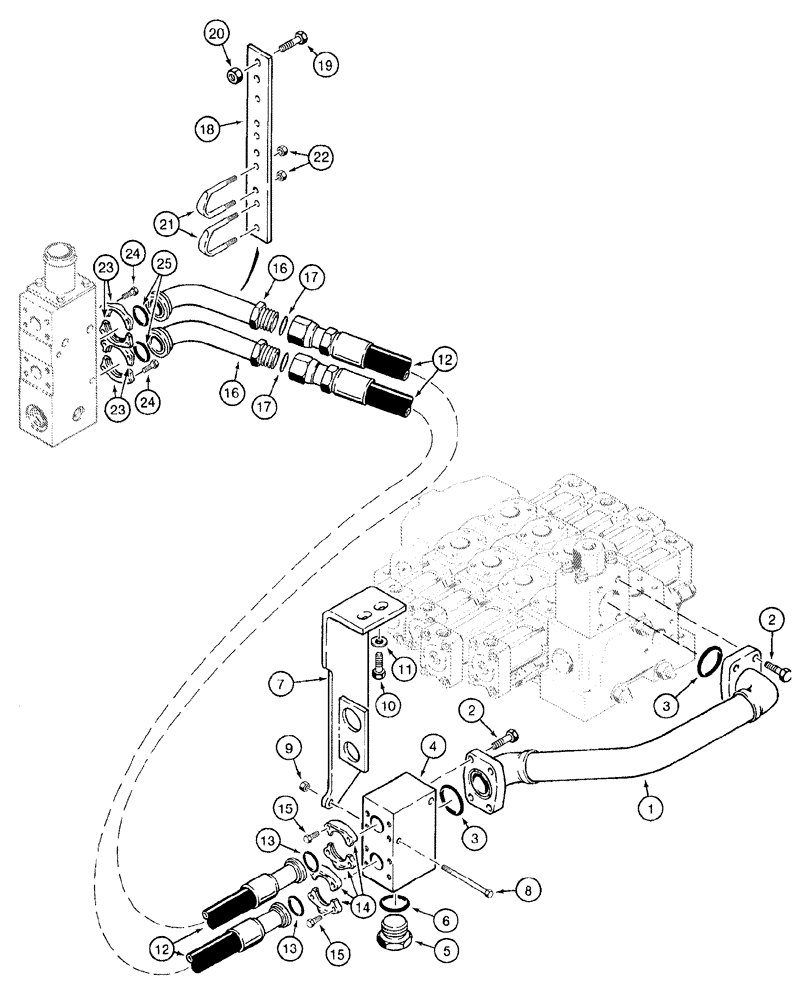

Запчасти Case 921B (8-012) - HYDRAULIC CIRCUIT - LOADER CONTROL VALVE TO COOLER BYPASS VALVE (08) - HYDRAULICS

1

L129530

TUBE,50.8 mm OD x 560, 317 mm L

loader control valve to manifold

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

3

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

4

L128072

MANIFOLD VALVE

, Serial Range: tube-hoses

1шт.

5

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

PLUG - hex, 1-7/8-12 inch O-ring boss, models without ride control, see figure 8-72, item 21 , for elbow used on models with ride control

1шт.

6

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

7

107703A1

SUPPORT

BRACKET - mounting, manifold

1шт.

8

426-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

BOLT - hex, 3/8 NC x 4 inch, grade 8

2шт.

9

231-1446

NUT,3/8" - 16, Gr 5

2шт.

10

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

2шт.

11

S95569

WASHER

flat, special, 1/2 inch

2шт.

12

L128494

HOSE ASSY.

990 mm (39 inch) long, manifold to tubes at cooler bypass valve

2шт.

13

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

14

A12301

CLAMP,Half

CLAMP - split flange

4шт.

15

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

BOLT - hex, 7/16 NC x 1-1/4 inch, grade 8

8шт.

16

L128146

TUBE,38.09 mm OD x 215, 64 mm L

at cooler bypass valve

2шт.

17

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

18

L128564

LARGE PLATE

PLATE, LARGE BRACKET - mounting, tube

1шт.

19

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

20

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

21

L129258

U-BOLT

BOLT "U" tube retaining

2шт.

22

231-1446

NUT,3/8" - 16, Gr 5

4шт.

23

A12301

CLAMP,Half

CLAMP - split flange

4шт.

24

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

BOLT - hex, 7/16 NC x 1-1/4 inch, grade 8

8шт.

25

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.
