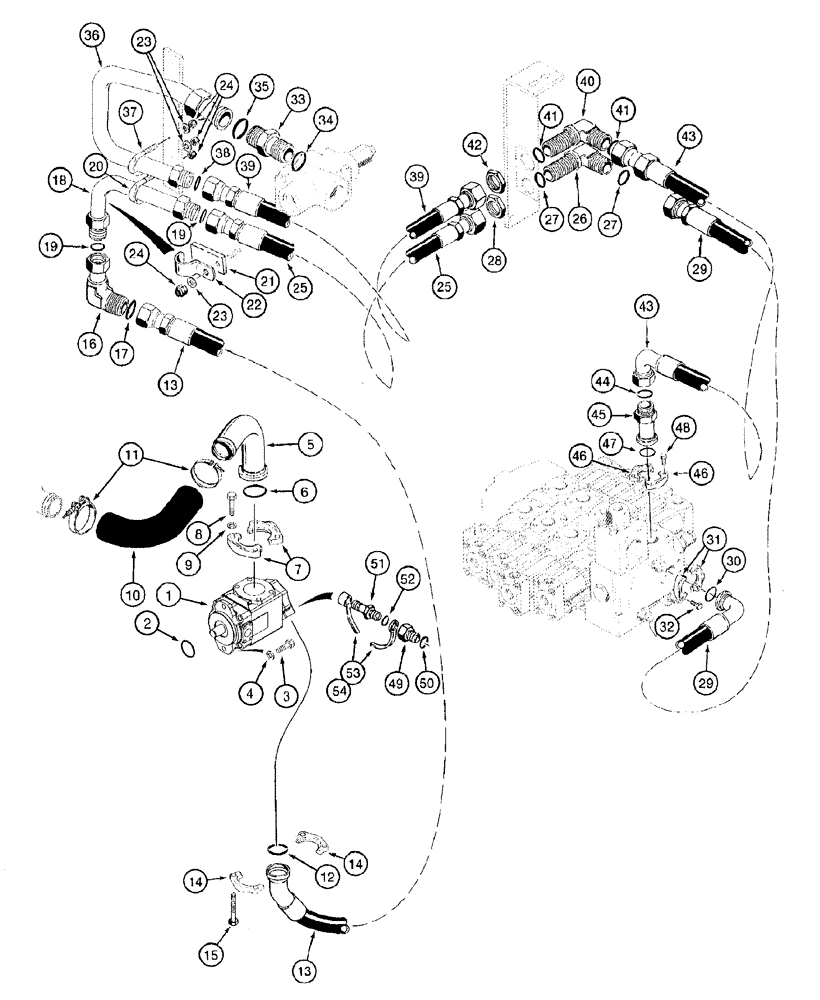

Запчасти Case 921B (8-011[A]) - HYDRAULIC CIRCUIT - RESERVOIR TO PUMP AND LOADER VALVE, P.I.N. JEE0051800 AND AFTER (08) - HYDRAULICS

1

195854A1

PUMP, HYDRAULIC,132.57 CC

ASSY. - equipment and steering, parts list figure 8-7A

1шт.

195854A1R

REMAN-HYD PUMP

921B

1шт.

195854A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

Pump

1шт.

3

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

4

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

2шт.

5

191357A1

TUBE,63.5 mm OD, 235, 227 mm Length

suction, reservoir to pump

1шт.

6

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

7

L13135

CLAMP

split flange

2шт.

8

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

10

L128461

HOSE,63.5 mm ID x 660.00 mm

Suction, Hydraulic Reservoir to Pump

1шт.

11

L115549

CLAMP,69.85mm - 92.08mm

adjustable

2шт.

12

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

13

191736A1

HOSE

800 mm (31-1/2 inch) long, Serial Range: pump-elbow

1шт.

14

A12306

FLANGE

CLAMP - split flange

2шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

15a

892-11010

LOCK WASHER,M10

4шт.

16

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

ELBOW - 90 degree, 1-7/16-12 face seal x swivel face seal

1шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

18

L128288

TUBE,31.75 mm OD x 319, 187 mm L

TUBE - elbow to hose

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

20

L129257

U-BOLT

tube retaining

1шт.

21

L129098

SPACER

, Serial Range: tube-chassis

1шт.

22

S120173

CLAMP

, Serial Range: tube-chassis

1шт.

23

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

3шт.

24

231-1446

NUT,3/8" - 16, Gr 5

5шт.

25

L128495

HOSE ASSY.

990 mm (39 inch) long, tube to bulkhead fitting

1шт.

26

201-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

90 degree, 1-7/16-12 inch face seal x bulkhead face seal

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

28

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

hex, lock, bulkhead, 1-7/16 inch NF

1шт.

29

L129484

HOSE ASSY.

820 mm (32-1/4 inch) long, bulkhead fitting to loader control valve

1шт.

30

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

31

A12301

CLAMP,Half

CLAMP - split flange

2шт.

32

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16 NC x 1-1/2 inch

4шт.

33

201-137

HYD CONNECTOR,2"-12 ORFS x 1 8/8"-12 ORB

ADAPTER - straight, 2-12 face seal x 1-5/8-12 inch O-ring boss

1шт.

34

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss end

1шт.

35

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

Face end

1шт.

36

L128113

TUBE,38.09 mm OD

see pg 5-5 for flow control valve mounting, see pg 5-21 for valve assembly

1шт.

37

L129258

U-BOLT

BOLT "U" tube retaining

1шт.

38

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

39

L128496

HOSE ASSY.

990 mm (39 inch) long, priority valve tube to bulkhead fitting

1шт.

40

201-364

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

90 degree, 1-11/16-12 inch face seal x bulkhead face seal

1шт.

41

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

42

201-922

BHD LOCK NUT,Blkhd, 1 11/16-12

hex, lock, bulkhead, 1-11/16 inch NF

1шт.

43

L129483

HOSE ASSY.

820 mm (32-1/4 inch) long, bulkhead fitting to tube at loader control valve

1шт.

44

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

45

L129519

TUBE,38.09 mm OD x 110 mm L

supply, at loader control valve

1шт.

46

A14157

FLANGE

CLAMP - split flange

2шт.

47

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

48

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

49

A176161

ADAPTER

straight, special

1шт.

50

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

1541849C1

COUPLING

ASSEMBLY - diagnostic, if used, replaces S243647 coupling assembly

1шт.

51

NSS

NOT SOLD SEPARAT

COUPLING - quick disconnect

1шт.

53

S301201

CAP

dust, on coupling, if used

1шт.

54

H434163

DUST CAP

On coupling, if used

1шт.

52

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
