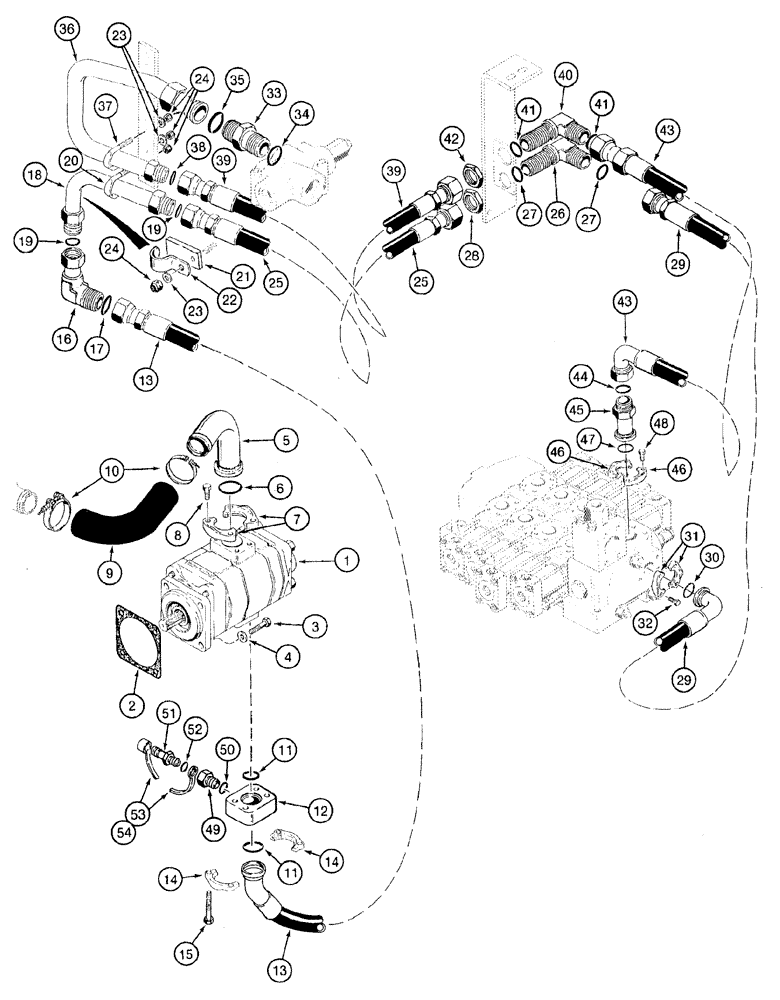

Запчасти Case 921B (8-008) - HYDRAULIC CIRCUIT - RESERVOIR TO PUMP AND LOADER VALVE, PRIOR TO P.I.N. JEE0051800 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
L127716
PUMP, HYDRAULIC
ASSEMBLY - equipment and steering, parts list figure 8-6
1шт.
2
A12304
GASKET,0.4mm Thk
mounting, pump
1шт.
3
628-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
4шт.
4
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
4шт.
5
L128153
TUBE,63.5 mm OD x 230, 227 mm L
suction, reservoir to pump
1шт.
6
238-6232
O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro
1шт.
7
L14386
CLAMP
split flange
2шт.
8
426-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
4шт.
9
L128461
HOSE,63.5 mm ID x 660.00 mm
Suction, Hydraulic Reservoir to Pump
1шт.
11
238-6219
O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
2шт.
12
L127969
ADAPTER
special, hose to pump port end cover
1шт.
13
L129070
HOSE ASSY.
850 mm (33-7/16 inch) long, Serial Range: pump-elbow
1шт.
14
A12306
FLANGE
CLAMP - split
2шт.
15
413-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
4шт.
16
201-339
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS
ELBOW - 90 degree, 1-7/16-12 face seal x swivel face seal
1шт.
17
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
18
L128288
TUBE,31.75 mm OD x 319, 187 mm L
TUBE - elbow to hose
1шт.
19
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
2шт.
20
L129257
U-BOLT
tube retaining
1шт.
21
L129098
SPACER
, Serial Range: tube-chassis
1шт.
22
S120173
CLAMP
, Serial Range: tube-chassis
1шт.
23
496-41041
WASHER,13/32" x 1 1/8" x .134"
Hardened
3шт.
24
231-1446
NUT,3/8" - 16, Gr 5
5шт.
25
L128495
HOSE ASSY.
990 mm (39 inch) long, tube to bulkhead fitting
1шт.
26
201-363
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS
90 degree, 1-7/16-12 inch face seal x bulkhead face seal
1шт.
27
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
2шт.
28
201-908
BHD LOCK NUT,Blkhd, 1 7/16"-12
hex, lock, bulkhead, 1-7/16 inch NF
1шт.
29
L129484
HOSE ASSY.
820 mm (32-1/4 inch) long, bulkhead fitting to loader control valve
1шт.
30
238-6222
O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro
1шт.
31
A12301
CLAMP,Half
CLAMP - split flange
2шт.
32
413-724
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
hex, 7/16 NC x 1-1/2 inch
4шт.
33
201-137
HYD CONNECTOR,2"-12 ORFS x 1 8/8"-12 ORB
ADAPTER - straight, 2-12 face seal x 1-5/8-12 inch O-ring boss
1шт.
34
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
Boss end
1шт.
35
238-6029
O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro
Face end
1шт.
36
L128113
TUBE,38.09 mm OD
see pg 5-5 for flow control valve mounting, see pg 5-21 for valve assembly
1шт.
37
L129258
U-BOLT
BOLT "U" tube retaining
1шт.
39
L128496
HOSE ASSY.
990 mm (39 inch) long, priority valve tube to bulkhead fitting
1шт.
40
201-364
ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS
90 degree, 1-11/16-12 inch face seal x bulkhead face seal
1шт.
42
201-922
BHD LOCK NUT,Blkhd, 1 11/16-12
hex, lock, bulkhead, 1-11/16 inch NF
1шт.
43
L129483
HOSE ASSY.
820 mm (32-1/4 inch) long, bulkhead fitting to tube at loader control valve
1шт.
45
L129519
TUBE,38.09 mm OD x 110 mm L
supply, at loader control valve
1шт.
46
A14157
FLANGE
CLAMP - split flange
2шт.
47
238-6225
O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro
1шт.
48
426-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
4шт.
49
A176161
ADAPTER
straight, special
1шт.
50
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
1541849C1
COUPLING
ASSEMBLY - diagnostic, if used, replaces S243647 coupling assembly
1шт.
51
NSS
NOT SOLD SEPARAT
COUPLING - quick disconnect
1шт.
53
S301201
CAP
dust, on coupling, if used
1шт.
54
H434163
DUST CAP
On coupling, if used
1шт.
52
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 55
